SECTION
2
DISASSEMBLY
Note
:
Follow
the
disassembly
procedure
in
the
numerical
order
given.

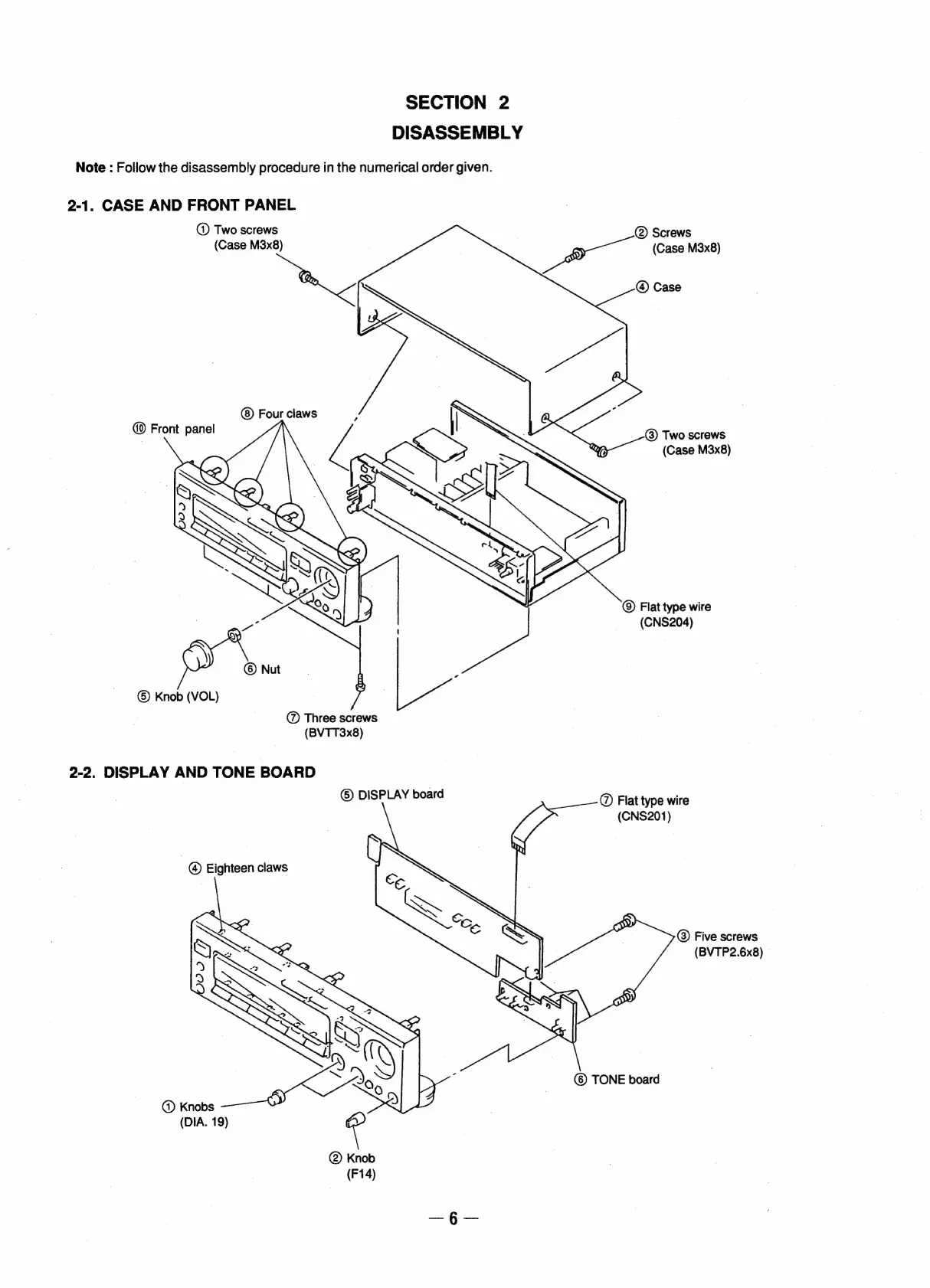

2-1.
CASE
AND
FRONT
PANEL
@
Two
screws
(Case
M3x8)
@
Screws
(Case
M3x8)
@
Case
f
Four
claws
Front
panel
@
Two
screws
(Case
M3x8)
©
Flat
type
wire
(CNS204)
©
Knob
(VOL)
@
Three
screws
(BVTT3x8)
2-2.
DISPLAY
AND
TONE
BOARD
©)
DISPLAY
board
@
Flat
type
wire
(CNS201)
@
Eighteen
claws
.
@
Five
screws
(BVTP2.6x8)
©
TONE
board
@
Knobs
(DIA.
19)
