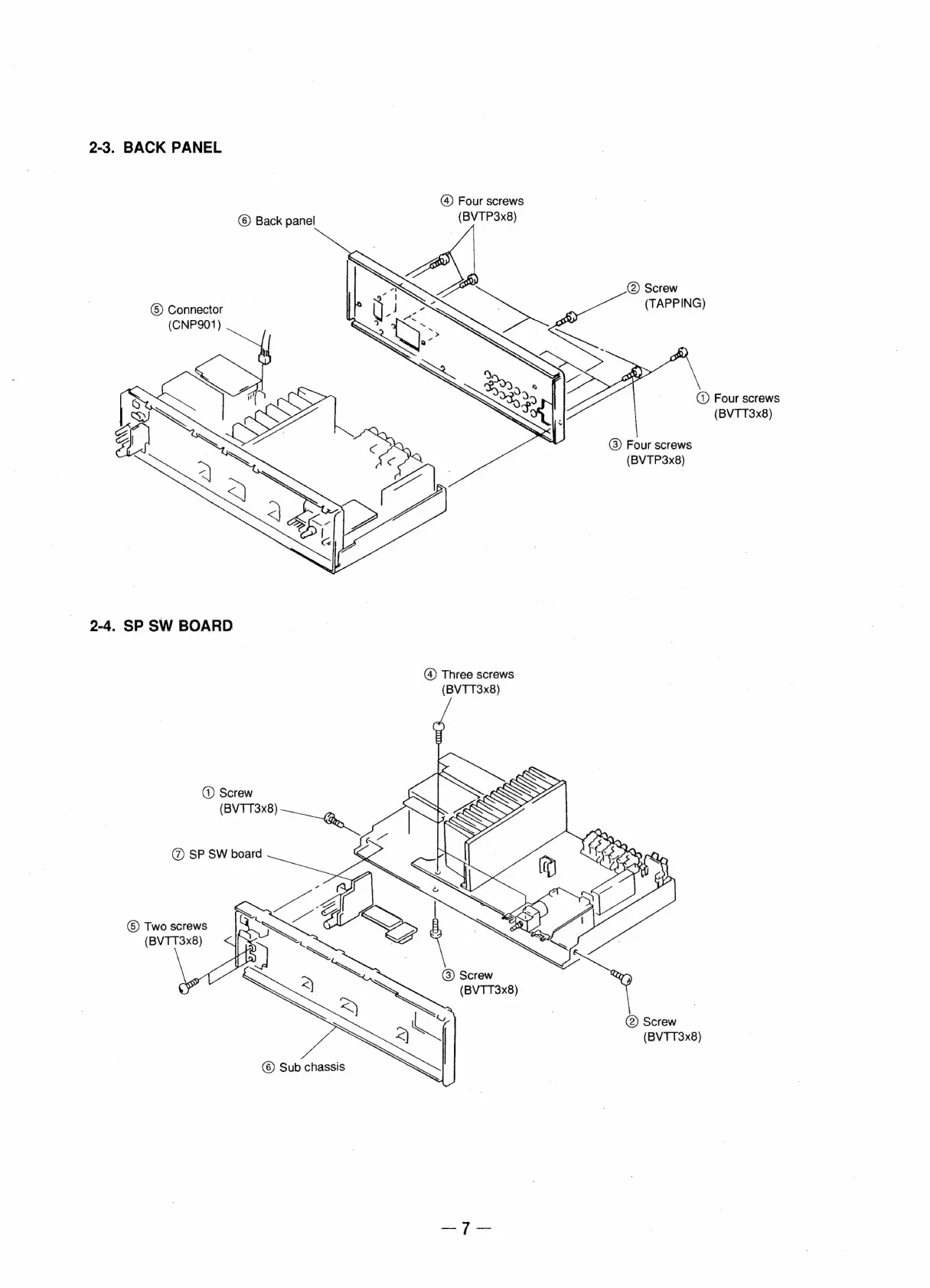

2-3. BACK PANEL
(4) Four screws
© Back panel (BVTP3x8)
@) Screw
&) Connector (TAPPING)
(CNP901)
G@) Four screws
(BVTT3x8)
@) Four screws
(BVTP3x8)
2-4. SP SW BOARD
@) Three screws
(BVTT3x8)
>
@) Screw
ee
Me
@ SP SW board S -
SZ
© Two screws es
(BVTT3x8) : ex
@ Screw
(BVTT3x8)
Q :
@ Screw
| i (BVTT3x8)
© Sub chassis
