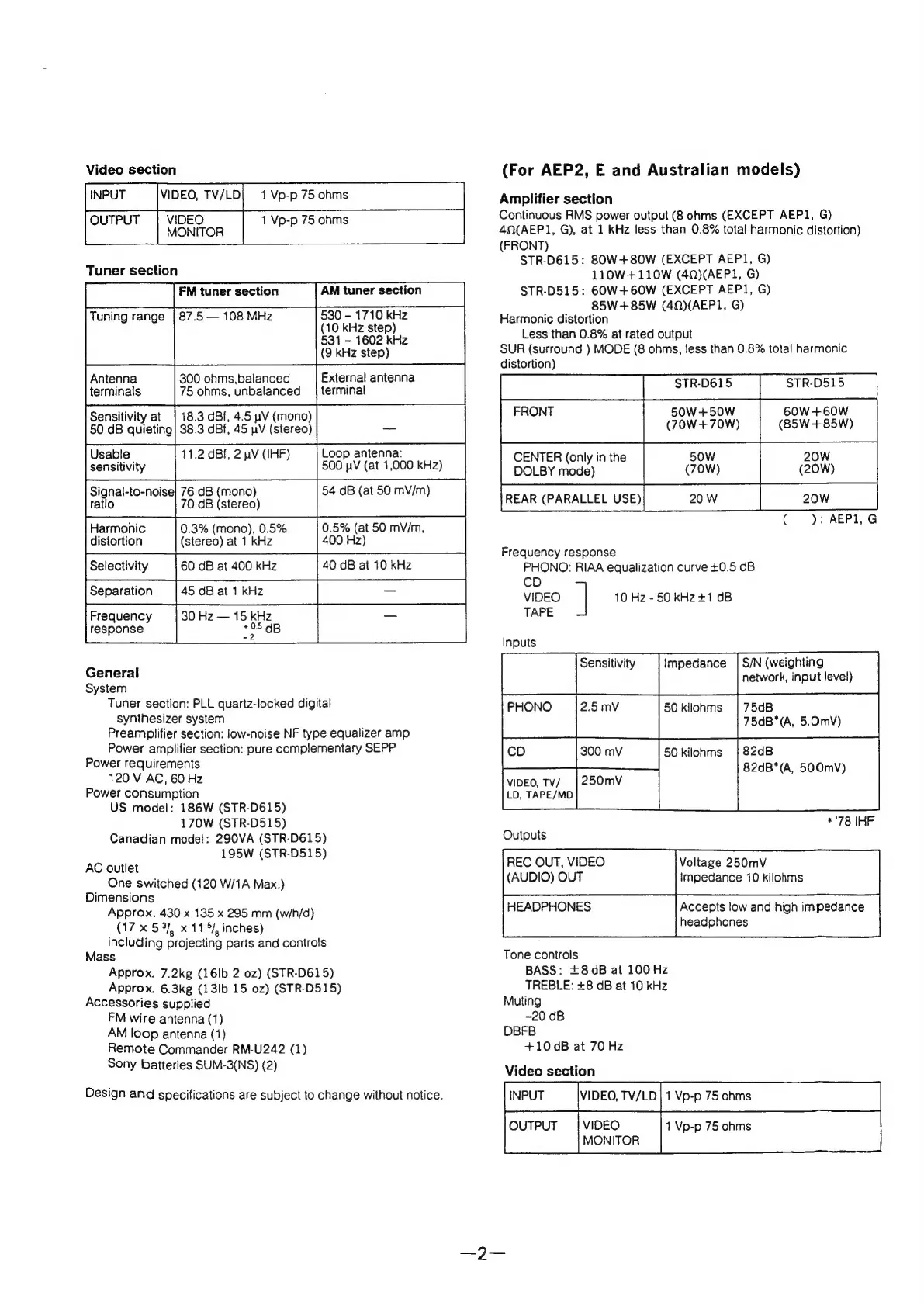

Sony STR-D515 - Page 2

Video section
OUTPUT VIDEO 1 Vp-p 75 ohms
MONITOR
Tuner section
eee FM tuner section AM tuner section
Tuning range | 87.5 — 108 MHz 530 - 1710 kHz
(10 kHz step)
531 - 1602 kHz
(9 kHz step)
Antenna 300 ohms,balanced External antenna
terminals 75 ohms, unbalanced | terminal
Sensitivity at | 18.3 dBf, 4.5 pV (mono)
50 dB quieting] 38.3 dBf, 45 pV (stereo)
Usable 11.2 dBF, 2 pV (IHF) Loop antenna:
sensitivity 500 pV (at 1,000 kHz)
Signal-to-noise] 76 dB (mono) 54 dB (at 50 mV/m)
ratio 70 GB (stereo)
Harmonic 0.3% (mono), 0.5% 0.5% (at 50 mV/m,
distortion (stereo) at 1 KHz
400 Hz
)
Selectivity 60 dB at 400 kHz 40 dB at 10 KHz
Frequency 30 Hz — 15 kHz
response ae dB
General
System
Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
US model: 186W (STR-D615)
170W (STR-D515)
Canadian model: 290VA (STR-D615)
195W (STR-D515)
AC outlet
One switched (120 W/1A Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17x 5%, x 11 4, inches)
including projecting parts and controls
Mass
Approx. 7.2kg (16lb 2 oz) (STR-D615)
Approx. 6.3kg (13lb 15 oz) (STR-D515)
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-U242 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
(For AEP2, E and Australian models)
Amplifier section
Continuous RMS power output (8 ohms (EXCEPT AEP1, G)
4Q(AEP1, G), at 1 kHz less than 0.8% total harmonic distortion)
(FRONT)
STR-D615: 80W+80W (EXCEPT AEP1, G)
110W+110W (4Q)(AEP1, G)
STR-D515: 60W+60W (EXCEPT AEP1, G)
85W+85W (40)(AEP1, G)
Harmonic distortion
Less than 0.8% at rated output
SUR (surround ) MODE (8 ohms, less than 0.8% total harmonic
distortion)
STR-D615 STR-D515
50W+50W 60W+60W
(70W+70W) (85W+85W)
CENTER (only in the 50W 20W
DOLBY mode) (70W) (20W)
( ): AEP1, G
Frequency response
PHONO: RIAA equalization curve +0.5 dB
cD
VIDEO
TAPE
FRONT
] 10 Hz - 50 kHz +1 dB
Inputs
Sensitivity Impedance | S/N (weighting
network, input level)
PHONO 2.5mV 50 kilohms | 75dB
75dB*(A, 5.0mV)
300 mV 50 kilohms | 82dB
82dB*(A, 500mV)
VIDEO, Tv/ | 250mV
LD, TAPE/MD
Outputs
*'78 IHF
Voltage 250mV
impedance 10 kilohms
Accepts low and high impedance
headphones
REC OUT, VIDEO
(AUDIO) OUT
HEADPHONES
Tone controls
BASS: +8dB at 100 Hz
TREBLE: +8 cB at 10 kHz
Muting
~20 dB
DBFB
+10 dB at 70 Hz
Video section
INPUT VIDEO, TV/LD| 1 Vp-p 75 ohms
OUTPUT VIDEO 1 Vp-p 75 ohms
MONITOR
