Sony STR-D515 - Safety Check-Out (US Model); Leakage Test Procedure

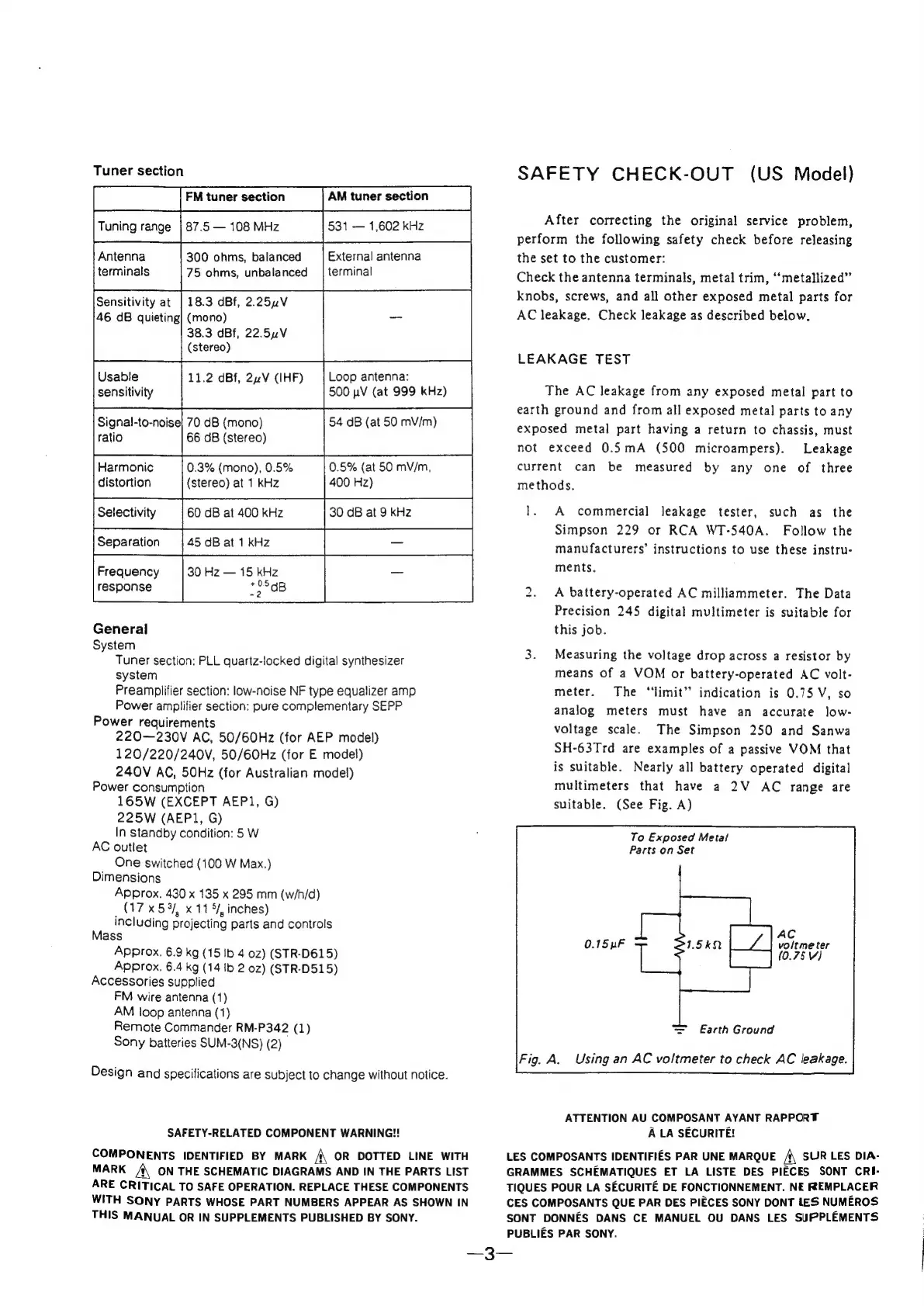

Tuner section
[irerseion nar ston
87.5 — 108 MHz 531 — 1,602 kHz
Antenna 300 ohms, balanced External antenna
terminals 75 ohms, unbalanced | terminal
Loop antenna:
500 pV (at 999 kHz)
38.3 dBf, 22.5uV
(stereo)
Usable 11.2 dBf, 2uV (IHF)
sensitivity
Signal-to-noise| 70 dB (mono) 54 dB (at 50 mV/m)
ratio 66 GB (stereo)
Harmonic 0.3% (mono), 0.5% 0.5% (at 50 mV/m,
distortion (stereo) at 1 KHz 400 Hz)
Selectivity 60 dB at 400 kHz 30 dB at 9 kHz
Frequency 30 Hz — 15 kHz
response *2° dB
General
System
Tuner section: PLL quartz-locked digital synthesizer
system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
220—230V AC, 50/60Hz (for AEP model)
120/220/240V, 50/60Hz (for E model)
240V AC, 50Hz (for Australian model)
Power consumption
165W (EXCEPT AEP1, G)
225W (AEP1, G)
In standby condition: 5 W
AC outlet
One switched (100 W Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17 x 5%, x 115, inches)
including projecting parts and controls
Mass
Approx.
6.9
kg
(15
Ib
4
oz)
(STR-D615)
Approx.
6.4
kg
(14
ib
2
oz)
(STR-D515)
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-P342 (1)
Sony batteries SUM-3(NS) (2)
Design
and
specifications
are
subject
to
change
without
notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK
A
ON
THE
SCHEMATIC
DIAGRAMS
AND
IN
THE
PARTS
LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS
WITH
SONY
PARTS
WHOSE
PART
NUMBERS
APPEAR
AS
SHOWN
IN
THIS
MANUAL
OR
IN
SUPPLEMENTS
PUBLISHED
BY
SONY.
SAFETY CHECK-OUT (US Model)
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5mA (S00 microampers). Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these instru-
ments.
2. <A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)
To Exposed Metal
Parts on Set
AC
voltmeter
P| 0.75)
“= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR LES DIA-
GRAMMES SCHEMATIQUES ET LA LISTE DES PIECES SONT CRI-
TIQUES POUR LA SECURITE DE FONCTIONNEMENT. NE REMPLACER
CES COMPOSANTS QUE PAR DES PIECES SONY DONT LES NUMEROS
SONT DONNES DANS CE MANUEL OU DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
—3—
