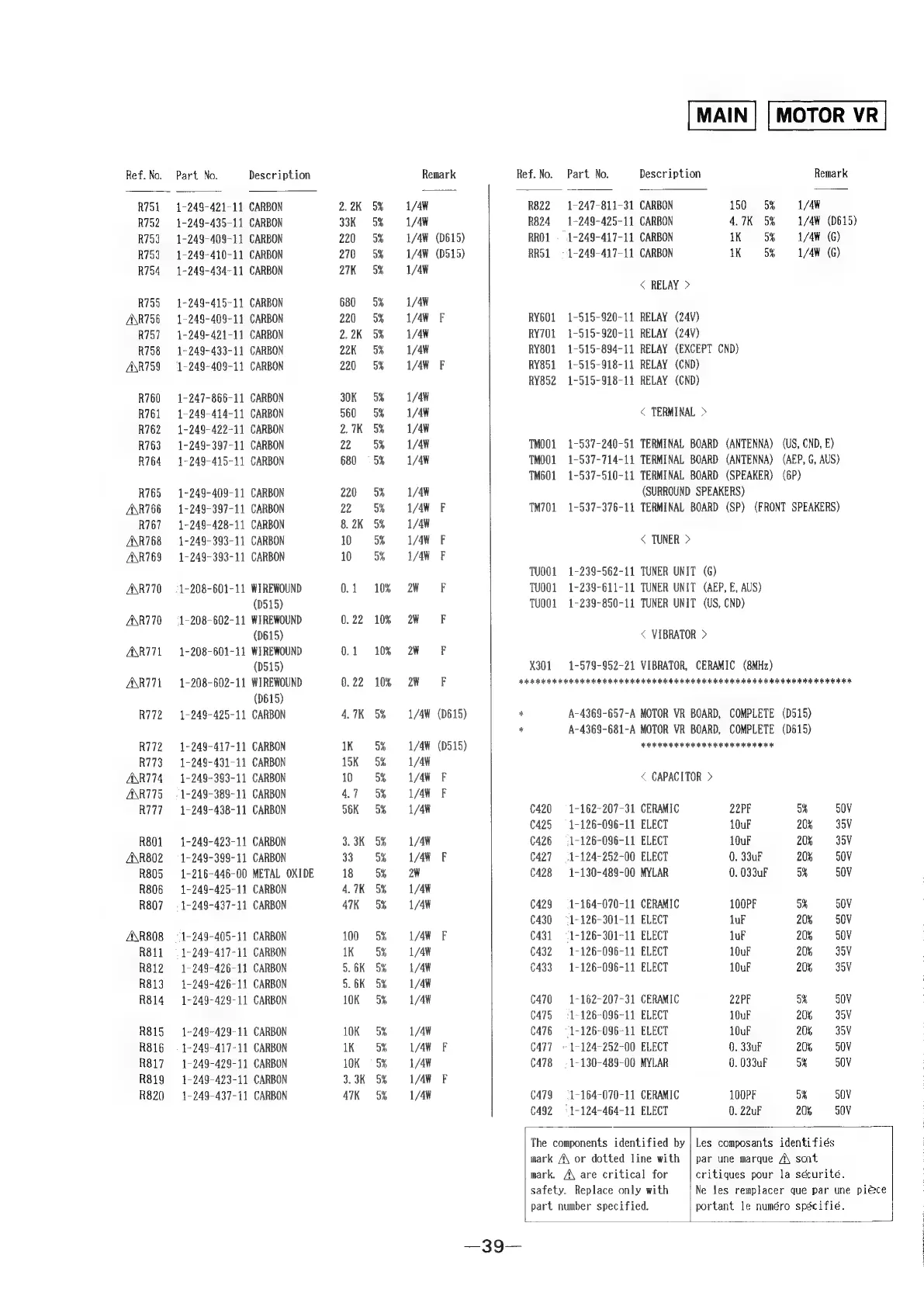

Sony STR-D515 - Page 31

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R751 = 1-249-421-11 CARBON 2.2K 5% 1/4W R822 1-247-811-31 CARBON 150 5% 1/4W
R752 1-249-435-11 CARBON 33K O% 1/4W R824 1-249-425-11 CARBON 4.7K 5% 1/4W (D615)
R753 1-249-409-1411 CARBON 220) 5% 1/4W (D615) RRO1 =. 1-249-417-11 CARBON iK o% 1/4¥ (@)
R753 1-249-410-11 CARBON 270 5% 1/4¥ (D515) RR51 =: 1-249-417-11 CARBON 1K 5% 1/44 (@)
R754 1-249-434-11 CARBON 27K 5% 1/4W
< RELAY >
R755 1-249-415-11 CARBON 680 5% 1/4W
A\R756.~—«:1-249-409-11 CARBON 220 5% 1/4W F RY601 1-515-920-11 RELAY (24V)
R757 1-249-421-11 CARBON 2.2K 5% 1/4W RY701 1-515-920-11 RELAY (24V)
R758 1-249-433-11 CARBON 22K ok 1/4W RY801 1-515-894-11 RELAY (EXCEPT CND)
A\R759 ~~: 1-249-409-11 CARBON 220 5k 1/4W F RY851 1-515-918-11 RELAY (CND)
RY852 1-515-918-11 RELAY (CND)
R760 1-247-866-11 CARBON 30K 5% 1/44
R761 1-249-414-11 CARBON 560 5% 1/4W < TERMINAL >
R762 1-249-422-11 CARBON 2.7K 5% 1/4¥
R763 1-249-397-11 CARBON 22 5% 1/4W TMO01 1-537-240-51 TERMINAL BOARD (ANTENNA) (US, CND, E)
R764 1-249-415-11 CARBON 680 | o% 1/4W TMOO01 1-537-714-11 TERMINAL BOARD (ANTENNA) (AEP, G, AUS)
TM601 1-537-510-11 TERMINAL BOARD (SPEAKER) (6P)
R765 1-249-409-11 CARBON 220 5% 1/4W (SURROUND SPEAKERS)
A\R766 — 1-249-397-11 CARBON 22 Ry 1/4W F TM701 1-537-376-11 TERMINAL BOARD (SP) (FRONT SPEAKERS)
R767 1-249-428-11 CARBON 8.2K 5% 1/4
A\R768 — 1-249-393-11 CARBON 10 5% 1/4W F < TUNER >
A\R769 = 1-249-393-11 CARBON 10 3% 1/4W F
TUOO1 1-239-562-11 TUNER UNIT (G)
A\R770 ~~: 1-208-601-11 WIREWOUND 0.1 10% QW F TU001 1-239-611-11 TUNER UNIT (AEP, E, AUS)
(D515) TUO01 1-239~-850-11 TUNER UNIT (US, CND)
A\R770 ~~: 1-208-602-11 WIREWOUND 0.22 10% WF
(D615) < VIBRATOR >
A\R771 ~—-1-208-601-11 WIREWOUND 0.1 10% W F
(D515) X301 1-579-952-21 VIBRATOR, CERAMIC (8MHz)
ANR771 1-208-602-11 WIREWOUND 0.22 10% 2W F 2S ISIOIGI OCG OIG CSIC OOOO IGIOIGI COI IG IC IORI IOI IGE
(D615)
R772 1-249-425-11 CARBON 4.7K 5% 1/4W (D615) * A-4369-657-A MOTOR VR BOARD, COMPLETE (D515)
* A-4369-681-A MOTOR VR BOARD, COMPLETE (D615)
R772 1-249-417-11 CARBON 1K 5%) /4W (D515) Jobo foi foi ob io iotiotioipiniot
R773 1-249-431-11 CARBON 15K oo% 1/4W
A\R774—-:1-249-393-11 CARBON 10 3% 1/4W F < CAPACITOR >
A\R775 ~~: 1-249-389-11 CARBON 4.7 5% 1/4¥ F
R777: 1-249-438-11 CARBON 36K 5% 1/4¥ C420 = 1-162-207-31 CERAMIC 22PF a” S0V
C425 = 1-126-096-11 ELECT 10uF 20% 35V
R801 1-249-423-11 CARBON 3.3K 5% 1/4W C426 =: 1-126-096-11 ELECT 10uF 20% 35V
A\R802 = 1-249-399-11 CARBON 33 on 1/48 F C427 =: 4-124-252-00 ELECT 0. 33uF 20% S0V
R805 = 1-216-446-00 METAL OXIDE 18 om OW C428 = 1-130-489-00 MYLAR 0. 033uF ny] 50V
R806 1-249-425-11 CARBON 4.7K 5% 1/4W
R807 = 1-248-437-11 CARBON 47K 5% 1/48 C429 =: 1-164-070-11 CERAMIC 100PF 3% 30V
C430) =: 1-126-301-11 ELECT luF 20% 50V
AXR808 =: 1- 249-405-411 CARBON 100 5% 1/4W F C431 =: 1-126-301-11 ELECT luF 20% 50V
R811 = 1-249-417-11 CARBON 1K 5% 1/4W C432 =1-126-096-11 ELECT 10uF 20% 35V
R812 1-249-426-11 CARBON 5.6K 5% 1/4W €433-1-126-096-11 ELECT 10uF 20% 35V
R813 1-249-426-11 CARBON 5.6K 5% 1/4
R814 1-249-429-11 CARBON 10K 5% 1/4W C470 = 1-162-207-31 CERAMIC 22PF on S0V
C475 =: 1-126-096-11 ELECT 10uF 20% 35V
R815 1-249-429-11 CARBON 10K 5% 1/4W C476 =: 1-126-096-11 ELECT 10uF 20% 35V
R816 — 1-249-417-11 CARBON 1K 5% 1/4W F C477 =: 1-124-252-00 ELECT 0. 33uF 20% 50V
R817: 1-249-429-11 CARBON 10K = 5% 1/4 C478 = 1-130-485-00 MYLAR 0. 033uF by 50V
R819 1-249-423-11 CARBON 3.3K 5% 1/4¥ F
R820 —1-249-437-11 CARBON 47K 5% 1/4W C479 =: 1-164-070-11 CERAMIC 100PF 54 50V
C492 =: 1-124-464-11 ELECT 0. 22uF 20% 50V
The components identified by | Les composants identifi¢s
mark A\ or dotted line with | par une marque A\ sont
mark. A\ are critical for critiques pour la sécurité.
safety. Replace only with Ne les remplacer que par une pi@ce
part number specified. portant le numéro spécifié.
