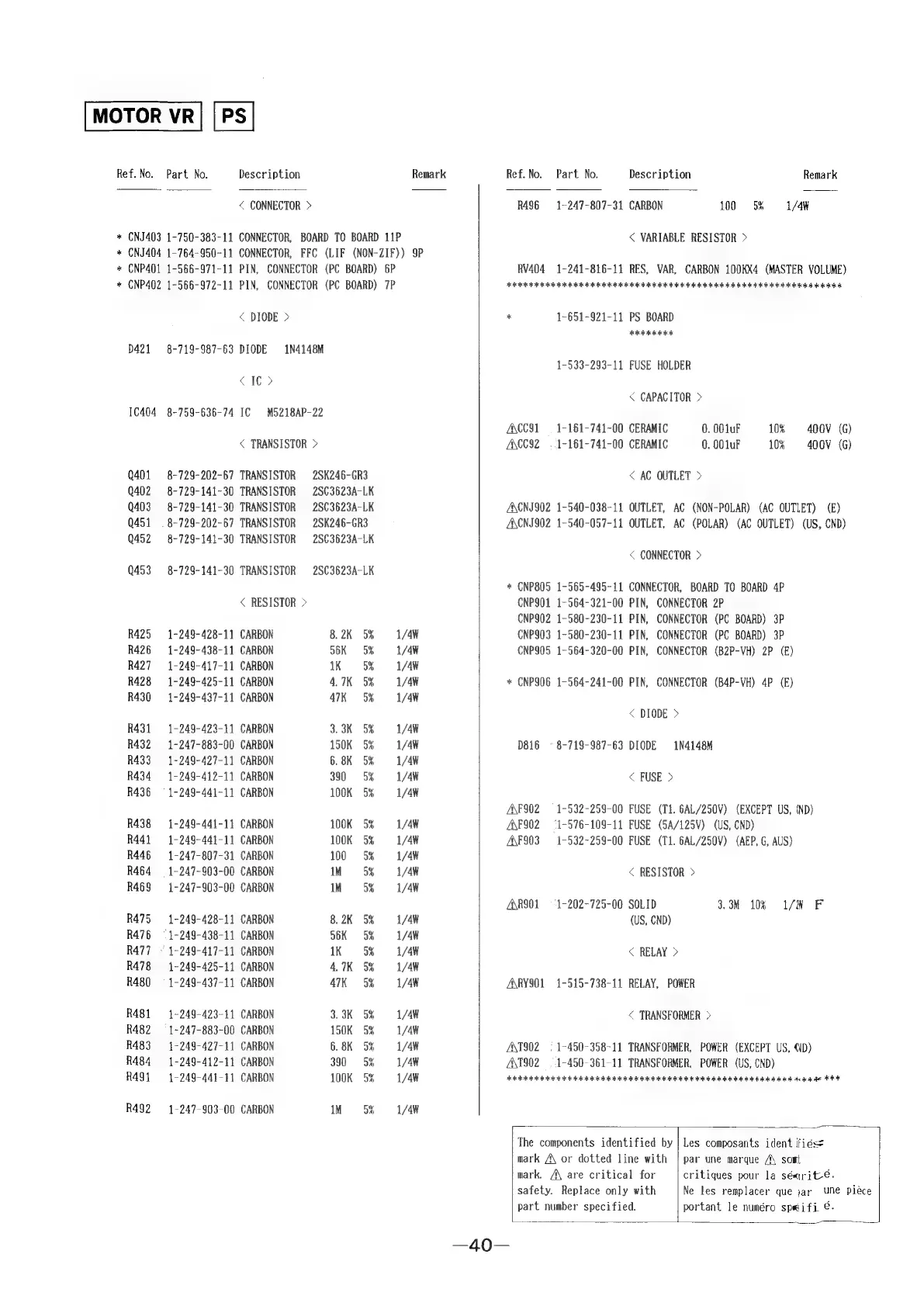

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< CONNECTOR > R496 1-247-807-31 CARBON 100 5% 1 /4W
* CNJ403 1-750-383-11 CONNECTOR, BOARD TO BOARD 11P < VARIABLE RESISTOR >
* CNJ404 1-764-950-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P
* CNP401 1-566-971-11 PIN, CONNECTOR (PC BOARD) 6P RV404 1-241-816-11 RES, VAR, CARBON 100KX4 (MASTER VOLUME)
* CNP402 1-566-972-11 PIN, CONNECTOR (PC BOARD) 7P JOSS IIIS IOI OOO I IOI OIG IG TSG Aa iobok dofokbdotok
< DIODE > * 1-651-921-11 PS BOARD
Fok bobo tok
D421 8-719-987-63 DIODE 1N4148M
1-533-293-11 FUSE HOLDER
< Ie >
< CAPACITOR >
10404 8-759-636-74 IC M5218AP-22
ACC91 = 1-161-741-00 CERAMIC 0. O01uF 10% 400V (G)
< TRANSISTOR > ANCC92 =: 1-161-741-00 CERAMIC 0. 001uF 10% 400V (G)
Q401 8-729-202-67 TRANSISTOR 2SK246-GR3 < AC OUTLET >
Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q403 8-729-141-30 TRANSISTOR 2SC3623A-LK ANCNJ902 1-540-038-11 OUTLET, AC (NON-POLAR) (AC OUTLET) (E)
Q451 = 8-729-202-67 TRANSISTOR 2SK246-GR3 A\CNJ902 1-540-057-11 OUTLET, AC (POLAR) (AC OUTLET) (US, CND)
Q452 — 8-729-141-30 TRANSISTOR 2SC3623A-LK
< CONNECTOR >
Q453 8-729-141-30 TRANSISTOR 2SC3623A-LK
* CNP805 1-565-495-11 CONNECTOR, BOARD TO BOARD 4P
< RESISTOR > CNP901 1-564-321-00 PIN, CONNECTOR 2P
CNP902 1-580-230-11 PIN, CONNECTOR (PC BOARD) 3P
R425 1-249-428-11 CARBON 8.2K 5% 1 /4H CNP903 1-580-230-11 PIN, CONNECTOR (PC BOARD) 3P
R426 1-249-438-11 CARBON 56K 5% 1/4¥ CNP905 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P (E)
R427: 1-249-417-11 CARBON 1K % 1/48
R428 1-249-425-11 CARBON 4.7K 5% 1/4W * CNP906 1-564-241-00 PIN, CONNECTOR (B4P-VH) 4P (E)
R430 —1-249-437-11 CARBON 47K 5% = 1/4W
< DIODE >
R431 1-249-423-11 CARBON 3.3K 5% = 1/4W
R432 1-247-883-00 CARBON 150K 5% 1/4W D816 = 8-719-987-63 DIODE 1N4148M
R433 1-249-427-11 CARBON 6.8K 5% 1/4W
R434 1-249-412-11 CARBON 390 5% 1/4W < FUSE >
R436 = 1-249-441-11 CARBON 100K 5% 1/4W
AF902 — 1-532-259-00 FUSE (Ti. 6AL/250V) (EXCEPT US, (ND)
R438 1-249-441-11 CARBON 100K 5% 1/4W ANF902 =: 1-576-109-11 FUSE (5A/125V) (US, CND)
R441 1-249-441-11 CARBON 100K 5% 1/4W ANF903 —-1-532-259-00 FUSE (T1. 6AL/250V) (AEP, G, AUS)
R446 1-247-807-31 CARBON 100% 1/4
R464 = 1-247-903-00 CARBON 1M 3% 1/4W < RESISTOR >
R468 —1-247-903-00 CARBON IM 3% 1/4W
ANR901 =: 1-202-725-00 SOLID 3.3M 10% 1/8 F
R475 1-249-428-11 CARBON 8.2K 5% 1/4 (US, CND)
R476 = 1-249-438-11 CARBON 56K 5% 1/48
R477 = 1-249-417-11 CARBON 1K 3% 1/4¥ < RELAY >
R478 1-249-425-11 CARBON 4.7K 5% 1/44
R480 = 1-249-437-11 CARBON 47K oh 1/44 ANRY901 =1-515-738-11 RELAY, POWER
R481 1-249-423-11 CARBON 3.3K 5% 1/44 < TRANSFORMER >
R482 — 1-247-883-00 CARBON 150K 5% 1/44
R483 1-249-427-11 CARBON 6.8K 5% 1/4 A\T902 — 1-450-358-11 TRANSFORMER, POWER (EXCEPT US, 4D)
R484 1-249-412-11 CARBON 390 5% 1/4W A\T9O2 ~~: 1-450-361-11 TRANSFORMER, POWER (US, CND)
R491 1-249-441-11 CARBON 100K 5% 1/4W FOS III ISI IGIO OI IG TOI Ooi doi oiooi iol ok tok ick ojotoke atk
R492 1-247-903-00 CARBON 1M ox 1/4
The components identified by | Les composants ident ifiés=
mark A\ or dotted line with | par une marque A\ som!
mark. A\ are critical for critiques pour la séarité.
safety. Replace only with Ne les remplacer que jar une piéce
part number specified. portant le numéro speifi &¢-
—40—
