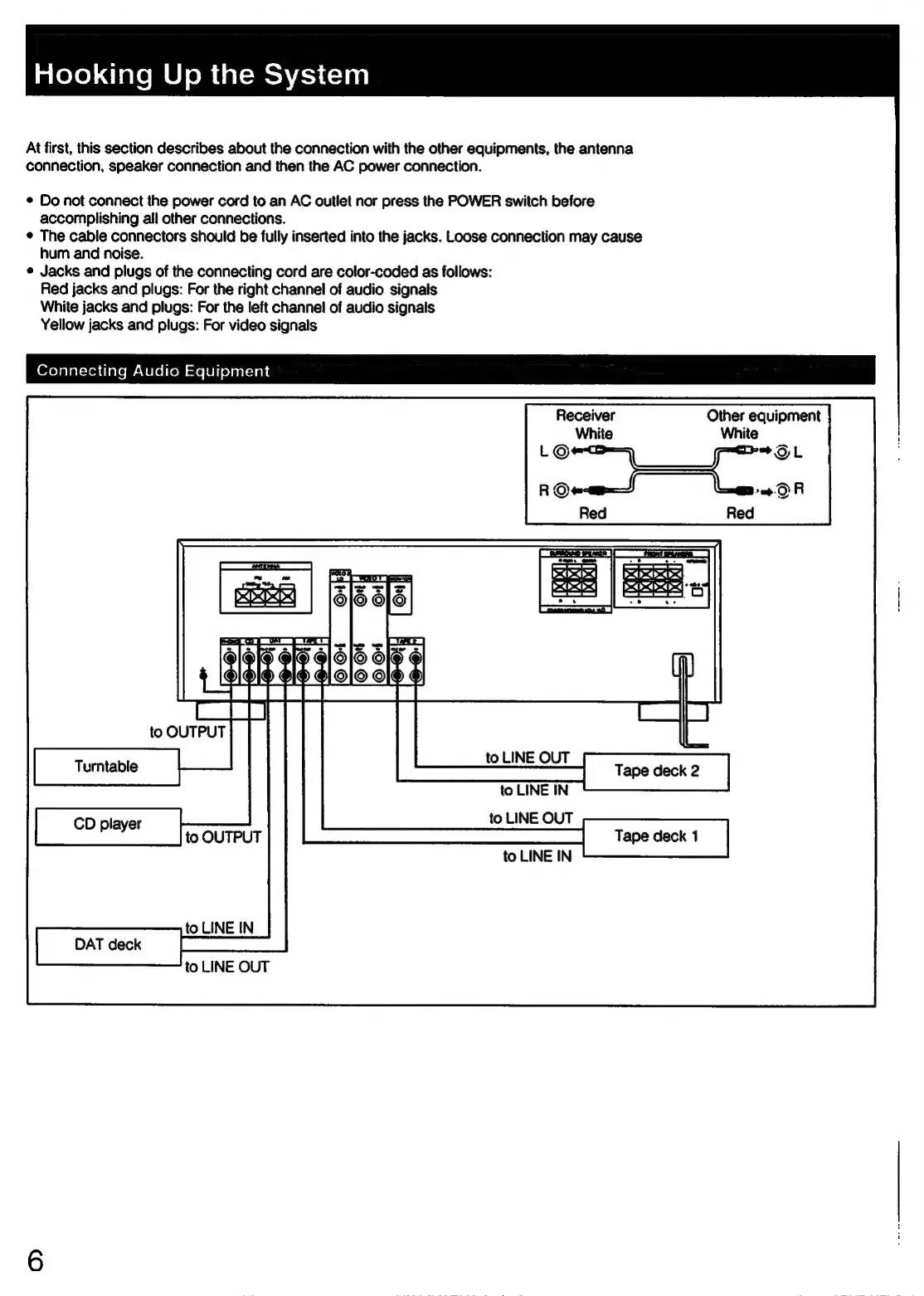

Hooking Up the System
At first, this section describes about the connection with the other equipments, the antenna
connection, speaker connection and then the AC power connection.
© Do not connect the power cord to an AC outlet nor press the POWER switch before
accomplishing all other connections.
* The cable connectors should be fully inserted into the jacks. Loose connection may cause
hum and noise.
¢ Jacks and plugs of the connecting cord are color-coded as follows:
Red jacks and plugs: For the right channel of audio signals
White jacks and plugs: For the left channel of audio signals
Yellow jacks and plugs: For video signals
Ofer alal=roi (ial my Cerel Com ate lel] oypet=val
Receiver Other equipment
White White |
: —_ ;
Turntable
tO
LINE
OUT
Tape
deck
2
to LINE IN
| to LINE OUT
CP player Tape deck 1
to LINE IN
to LINE IN
DAT deck
to LINE OUT
