Sony STR-D911 - Antenna and Ground Wire Connections

{

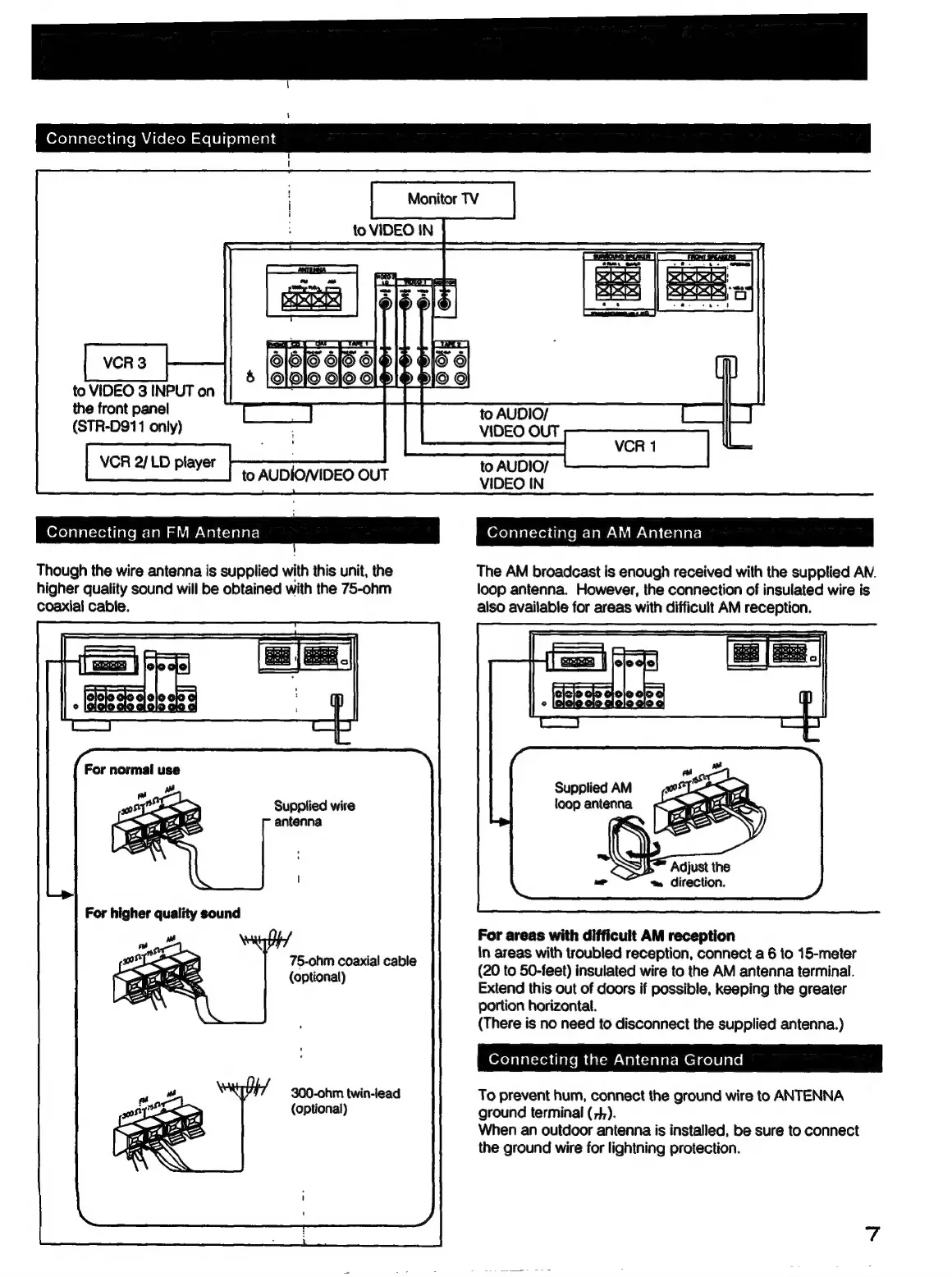

Connecting Video Equipment
1
Monitor TV
to VIDEO 3 INPUT on
the front panel
(STR-D911 only)
VCR 2/ LD player
to AUDIO/
VIDEO IN
Connecting an FM Antenna (Ofer alal-retttare M-lem-Wimaval lalate!
Though the wire antenna is supplied with this unit, the
higher quality sound will be obtained with the 75-ohm
coaxial cable.
Supplied wire
antenna
7§-ohm coaxial cable
(optional)
300-ohm twin-lead
(optional)
The AM broadcast is enough received with the supplied AN.
loop antenna. However, the connection of insulated wire is
also available for areas with difficult AM reception.
Supplied AM
loop antenna
For areas with difficult AM reception
In areas with troubled reception, connect a 6 to 15-meter
(20 to 50-feet) insulated wire to the AM antenna terminal.
Extend this out of doors if possible, keeping the greater
portion horizontal.
(There is no need to disconnect the supplied antenna.)
Fol aT al=toa diate Mm calm Val Cclalarcmeiceleiare|
To prevent hum, connect the ground wire to ANTENNA
ground terminal (74).
When an outdoor antenna is installed, be sure to connect
the ground wire for lightning protection.
