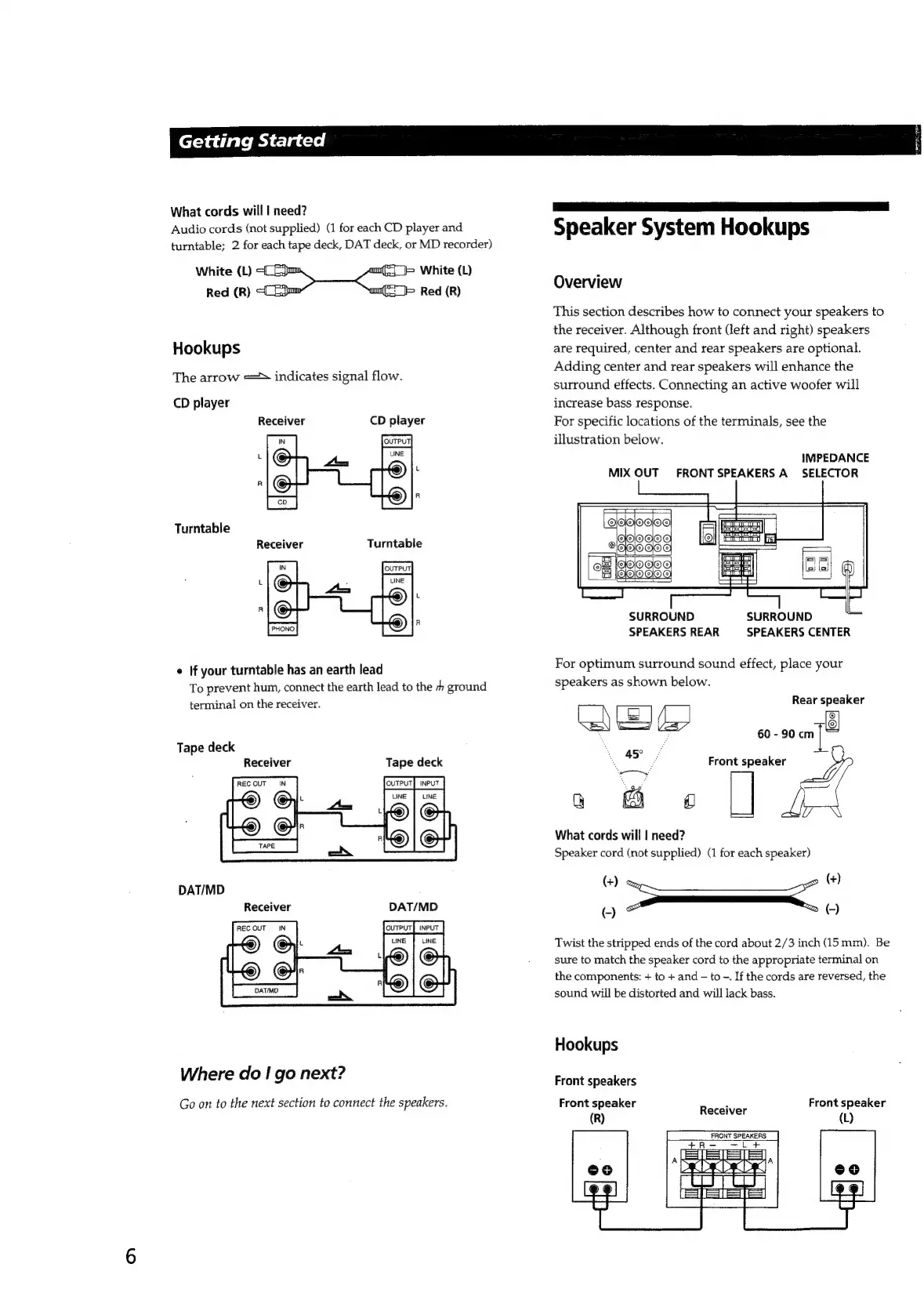

Getting Started
What cords will | need?
Audio cords (not supplied) (1 for each CD player and
turntable; 2 for each tape deck, DAT deck, or MD recorder)
White (L)
Red (R) “_EJam fF Red (R)
Hookups
The arrow ==> indicates signal flow.
CD player
Receiver CD player
Turntable
Receiver Turntable
e If your turntable has an earth lead
To prevent hum, connect the earth lead to the rh ground
terminal on the receiver.
Tape deck
Receiver Tape deck
DAT/MD
Receiver DAT/MD
Where do ! go next?
Go on to the next section to connect the speakers.
Speaker System Hookups
Overview
This section describes how to connect your speakers to
the receiver. Although front (left and right) speakers
are required, center and rear speakers are optional.
Adding center and rear speakers will enhance the
surround effects. Connecting an active woofer will
increase bass response.
For specific locations of the terminals, see the
illustration below.
IMPEDANCE
MIX OUT FRONT SPEAKERS A SELECTOR
SURROUND SURROUND
SPEAKERS REAR SPEAKERS CENTER
For optimum surround sound effect, place your
speakers as shown below.
Rear speaker
(3)
60 - 90 cm
Front i
0 @& o@
What cords will | need?
Speaker cord (not supplied) (1 for each speaker)
(+) = d (+)
©) oO
Twist the stripped ends of the cord about 2/3 inch (15 mm). Be
sure to match the speaker cord to the appropriate terminal on
the components: + to + and — to -. If the cords are reversed, the
sound will be distorted and will lack bass.
Hookups
Front speakers
aa ee Recawes: Front nad
FRONT SPEAKERS
