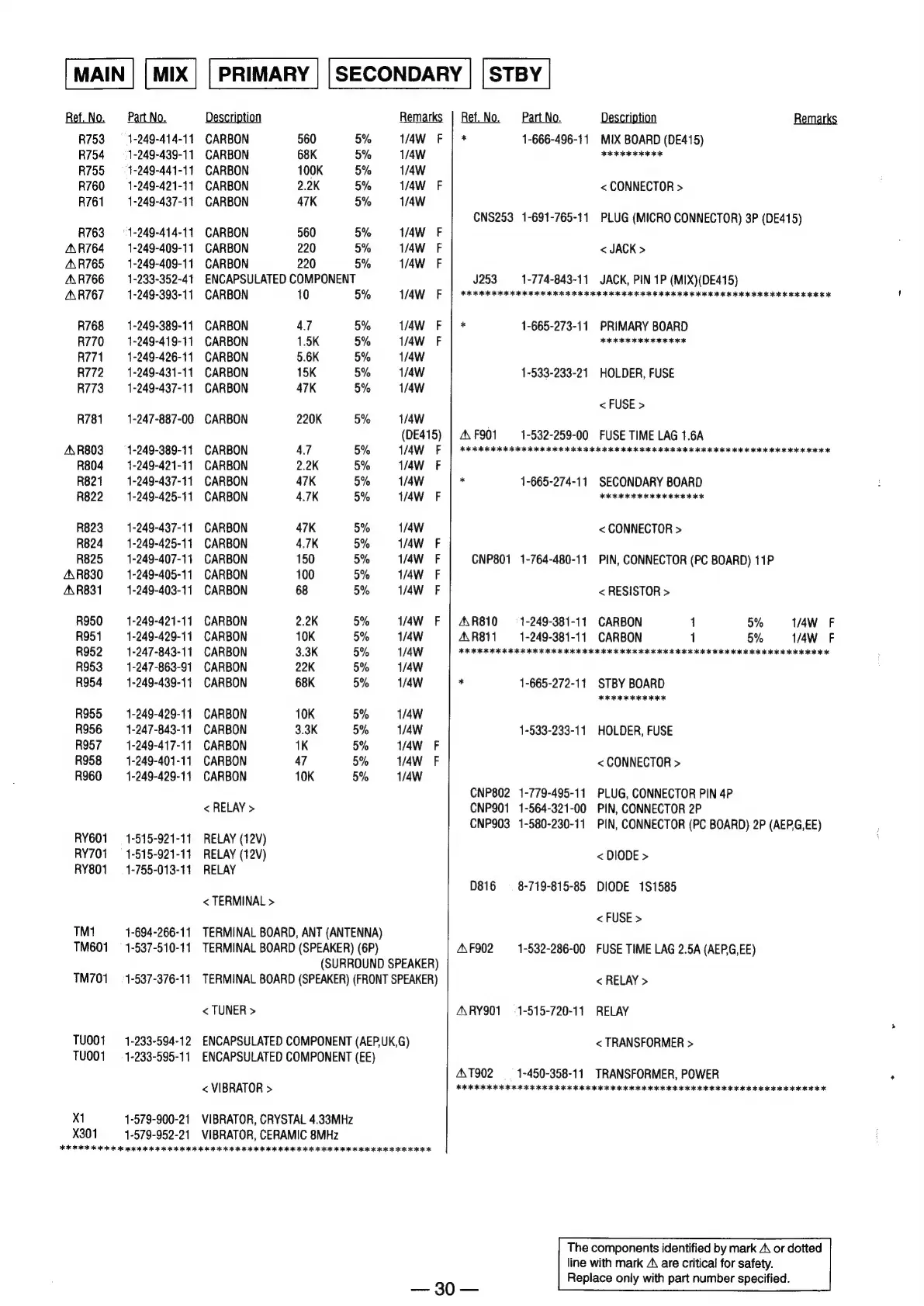

Sony STR-DE415 - Page 20

[MAIN | [Ix | | PRIMARY | [SECONDARY | |STBY |
Ref.No. Part No. Description Remarks
R753 ~—s- 1-249-414-11 CARBON 560 5% 1/4W F
R754 ~—s- 1-249-439-11 CARBON 68K 5% 1/4W
R755 ~—«- 1-249-441-11 CARBON 100K 5% 1/4W
R760 ~—-1-249-421-11 CARBON 2.2K 5% 1/4w F
R761 1-249-437-11 CARBON 47K 5% 1/4W
R763 ~—s«- 1-249-414-11 CARBON 560 5% V/4wW F
A\R764 1-249-409-11 CARBON 220 5% 1/4W F
A\R765 ~—-1-249-409-11 CARBON 220 5% 1/4W OF
A\R766 ~—-1-233-352-41 ENCAPSULATED COMPONENT
A\R767 ~—-:1-249-393-11 CARBON 10 5% 1/4W OF
R768 —_1-249-389-11 CARBON 4.7 5% 1/4W F
R770 __—‘1-249-419-11 CARBON 1.5K 5% 1/4W F
R771 1-249-426-11 CARBON 5.6K 5% 1/4W
R772 1-249-431-11 CARBON 15K 5% 1/4W
R773 1-249-437-11 CARBON 47K 5% 1/4W
R781 1-247-887-00 CARBON 220K 5% 1/4W
(DE415)
A\R803 ~—s- 1-249-389-11 CARBON 4.7 5% 1/4W F
R804 1-249-421-11 CARBON 2.2K 5% W/4w F
R821 1-249-437-11 CARBON 47K 5% 1/4W
R822 1-249-425-11 CARBON 4.7K 5% 1/4W F
R823 1-249-437-11 CARBON 47K 5% 1/4W
R824 1-249-425-11 CARBON 4.7K 5% 1/4W OF
R825 1-249-407-11 CARBON 150 5% 1/4W F
A\R830 1-249-405-11 CARBON 100 5% 1/4W F
AR831 1-249-403-11 CARBON 68 5% 1/4W OF
R950 1-249-421-11 CARBON 2.2K 5% 1/AW F
R951 1-249-429-11 CARBON 10K 5% 1/4W
R952 1-247-843-11 CARBON 3.3K 5% 1/4W
R953 1-247-863-91 CARBON 22K 5% 1/4W
R954 1-249-439-11 CARBON 68K 5% 1/4W
R955 1-249-429-11 CARBON 10K 5% 1/4W
R956 1-247-843-11 CARBON 3.3K 5% 1/4W
R957 1-249-417-11 CARBON 1K 5% 1/4AW F
R958 1-249-401-11 CARBON 47 5% 1/4W F
R960 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
RY601 = 1-515-921-11 RELAY (12V)
RY701 = 1-515-921-11 RELAY (12V)
RY801 = 1-755-013-11 RELAY
< TERMINAL >
T™1 1-694-266-11 TERMINAL BOARD, ANT (ANTENNA)
TM601 = 1-537-510-11 TERMINAL BOARD (SPEAKER) (6P)
(SURROUND SPEAKER)
TM701 =‘ 1-537-376-11 TERMINAL BOARD (SPEAKER) (FRONT SPEAKER)
< TUNER >
TU001 1-233-594-12 ENCAPSULATED COMPONENT (AEP.UK,G)
TU001 = 1-233-595-11 ENCAPSULATED COMPONENT (EE)
< VIBRATOR >
x1 1-579-900-21 VIBRATOR, CRYSTAL 4.33MHz
X301 1-579-952-21 VIBRATOR, CERAMIC 8MHz
FIFI ICR OOO IORI IO OGIO ORI OR IO IOIGR IO doi ok 4 kK a
530 <=
Ref.No. Part No. Description Remarks
: 1-666-496-11 MIX BOARD (DE415)
FOR RRR RE
< CONNECTOR >
CNS253 1-691-765-11 PLUG (MICRO CONNECTOR) 3P (DE415)
< JACK >
J253.——1-774-843-11 JACK, PIN 1P (MIX)(DE415)
FECA EGCG OOOO IGG OOOO IGOR GI Kak iar
i 1-665-273-11 PRIMARY BOARD
2 RK RK KK AK
1-533-233-21 HOLDER, FUSE
< FUSE >
A\F901 —_1-532-259-00 FUSE TIME LAG 1.6A
JEG GOS GA CGO CIO GIGI GOI AI GR AGR ie
* 1-665-274-11 SECONDARY BOARD
FOO IA IK
< CONNECTOR >
CNP801 1-764-480-11 PIN, CONNECTOR (PC BOARD) 11P
< RESISTOR >
A\R810 ~—- 1-249-381-11 CARBON 1 5% 1/4W OF
AR811_—s- 1-249-381-11 CARBON 1 5% 1/4W OF
SIRI OR RRO OR RR AOR OK IO OR IK 30K ok a 2 9 Kok akc oe ok akc ae
* 1-665-272-11 STBY BOARD
JR OK OK eK aK
1-533-233-11 HOLDER, FUSE
< CONNECTOR >
CNP802 1-779-495-11 PLUG, CONNECTOR PIN 4P
CNP901 1-564-321-00 PIN, CONNECTOR 2P
CNP903 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P (AEP,G,EE)
< DIODE >
D816 = 8-719-815-85 DIODE 181585
< FUSE >
AF902 1-532-286-00 FUSE TIME LAG 2.5A (AEP.G,EE)
< RELAY >
A\RY901 =: 1-515-720-11 RELAY
< TRANSFORMER >
AT902 —- 1-450-358-11 TRANSFORMER, POWER
FEI ICRF III OOO GIO IORI ORO A IO IO K
The components identified by mark A\ or dotted
line with mark A\ are critical for safety.
Replace only with part number specified.
