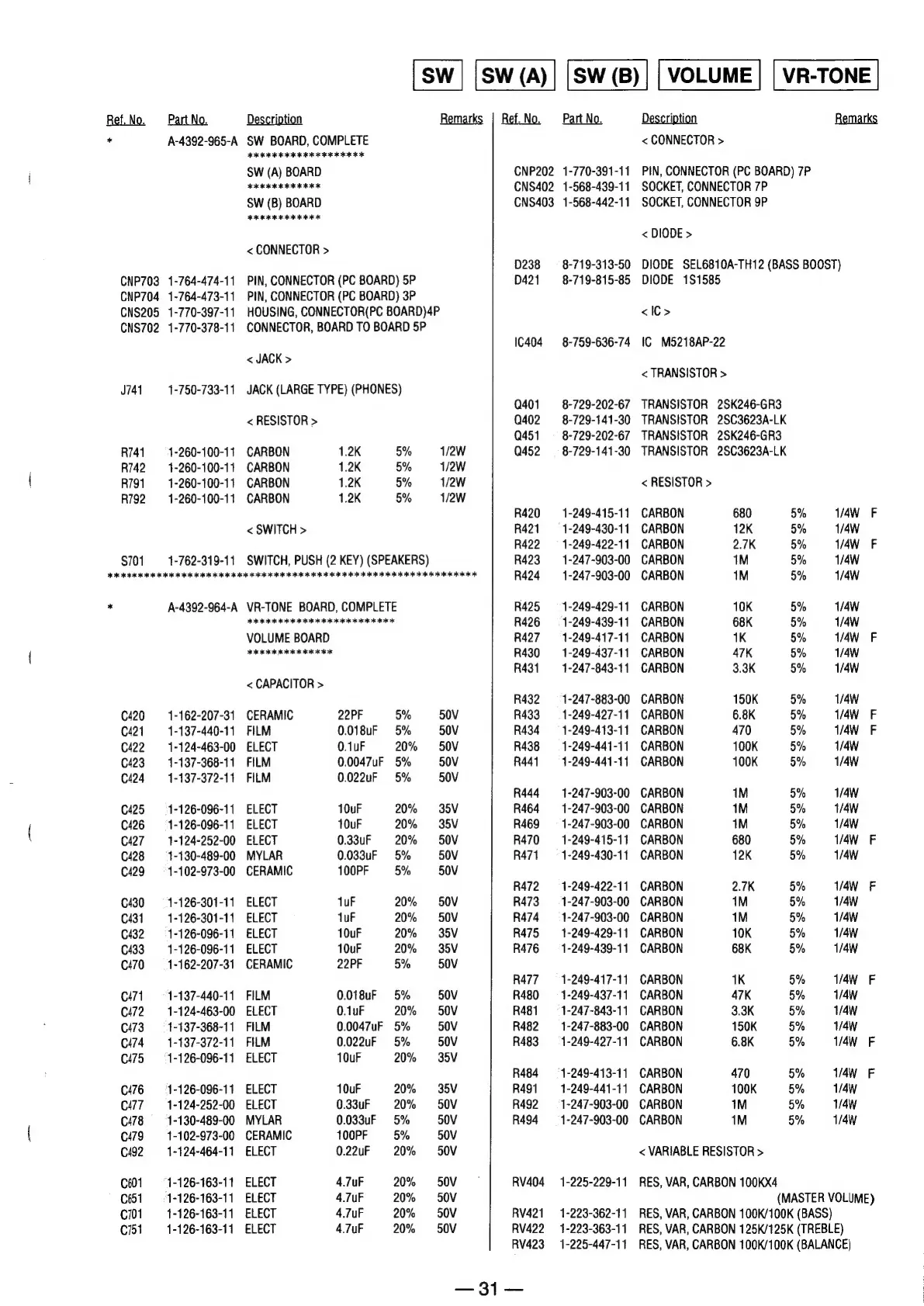

| sw | [sw (a)] [sw (6) | | VOLUME | [ VR-TONE |
Bef.No. PartNo. Description Remarks | Ref. No. Part No. Description Remarks
* A-4392-965-A SW BOARD, COMPLETE < CONNECTOR >
2 oe a 2 a I OR EK OR OK
SW (A) BOARD CNP202 1-770-391-11 PIN, CONNECTOR (PC BOARD) 7P
sila dalellsiedeainilel CNS402 1-568-439-11 SOCKET, CONNECTOR 7P
SW (B) BOARD CNS403 1-568-442-11 SOCKET, CONNECTOR 9P
eR eR
< DIODE >
< CONNECTOR >
D238 = 8-719-313-50 DIODE SEL6810A-TH12 (BASS BOOST)
CNP703 1-764-474-11 PIN, CONNECTOR (PC BOARD) 5P D421 8-719-815-85 DIODE 181585
CNP704 1-764-473-11 PIN, CONNECTOR (PC BOARD) 3P
CNS205 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P <IC>
CNS702 1-770-378-11 CONNECTOR, BOARD TO BOARD 5P
10404 8-759-636-74 IC M5218AP-22
< JACK >
< TRANSISTOR >
J741 1-750-733-11 JACK (LARGE TYPE) (PHONES)
Q401 =8-729-202-67 TRANSISTOR 2SK246-GR3
< RESISTOR > Q402 —8-729-141-30 TRANSISTOR 2SC3623A-LK
Q451 = 8-729-202-67 TRANSISTOR 2SK246-GR3
R741 —- 1-260-100-11 CARBON 1.2K 5% 1/2W Q452 = 8-729-141-30 TRANSISTOR 2SC3623A-LK
R742 ~—-1-260-100-11 CARBON 1.2K 5% 1/2W
R791 —-1-260-100-11 CARBON 1.2K 5% 1/2W < RESISTOR >
R792 —-1-260-100-11 CARBON 1.2K 5% 1/2W
R420 ~—-1-249-415-11 CARBON 680 5% 1/4W OF
< SWITCH > R421 —- 1-249-430-11 CARBON 12K 5% 1/4W
R422 = 1-249-422-11 CARBON 2.7K 5% 1/4W OF
$701 1-762-319-11 SWITCH, PUSH (2 KEY) (SPEAKERS) R423‘ 1-247-903-00 CARBON 1M 5% 1/4W
DRO IO RR ICI IC IC RK II I ACAI FE RE fe i 2 A 2 aS ae oe 2 Ee 2 2k 2 2 2 ae a ok 2 2 2 R424 1-247-903-00 CARBON 1M 5% 1/4W
* A-4392-964-A VR-TONE BOARD, COMPLETE R425 —- 1-249-429-11 CARBON 10K 5% 1/4W
PERE CEESALRASH ALLELES ENE R426 —- 1-249-439-11 CARBON 68K 5% 1/4W
VOLUME BOARD R427 ~—- 1-249-417-11 CARBON 1K 5% 1/4W OF
SAREE SEN BERENS R430: 1-249-437-11 CARBON 47K 5% 1/4W
R431: 1-247-843-11 CARBON 3.3K 5% 1/4W
< CAPACITOR >
R432 —- 1-247-883-00 CARBON 150K 5% 1/4W
C420. ~—-1-162-207-31 CERAMIC 22PF 5% 50V R433 —- 1-249-427-11 CARBON 6.8K 5% 1/4W OF
C421. 1-137-440-11 FILM 0.018uF 5% 50V R434 = 1-249-413-11 CARBON 470 5% 1/4W OF
C422, 1-124-463-00 ELECT 0.1uF 20% 50V R438 = 1-249-441-11 CARBON 100K 5% 1/4W
C423. 1-137-368-11 FILM 0.0047uF 5% 50V R441 —- 1-249-441-11 CARBON 100K 5% 1/4W
C424 1-137-372-11 FILM 0.022uF 5% 50V
R444 —- 1-247-903-00 CARBON 1M 5% 1/4W
C425 =: 1-126-096-11 ELECT 10uF 20% 35V R464 _—1-247-903-00 CARBON 1M 5% 1/4W
C426 =: 1-126-096-11 ELECT 10uF 20% 35V R469 —- 1-247-903-00 CARBON 1M 5% 1/4W
C427: 1-124-252-00 ELECT 0.33uF 20% 50V R470 ~—-1-249-415-11 CARBON 680 5% 1/4W F
C428 ~=—- 1-130-489-00 MYLAR 0.033uF 5% 50V R471 —- 1-249-430-11 CARBON 12K 5% 1/4W
C429 ~—s- 1-102-973-00 CERAMIC 100PF 5% 50V
R472 ~—- 1-249-422-11 CARBON 2.7K 5% 1/4W OF
C430. =: 1-126-301-11 ELECT uF 20% SOV R473 —- 1-247-903-00 CARBON 1M 5% 1/4W
C431 1-126-301-11 ELECT 1uF 20% 50V R474 —- 1-247-903-00 CARBON 1M 5% 1/4W
C432 =: 1-126-096-11 ELECT 10uF 20% 35V R475 —-1-249-429-11 CARBON 10K 5% 1/4W
C433: 1-126-096-11 ELECT 10uF 20% 35V R476 —- 1-249-439-11 CARBON 68K 5% 1/4W
C470 =: 1-162-207-31 CERAMIC 22PF 5% 50V
R477 —- 1-249-417-11 CARBON 1K 5% 1/4W OF
C471 —s- 1-137-440-11 FILM 0.018uF 5% 50V R480 = 1-249-437-11 CARBON 47K 5% 1/4W
C472 = 1-124-463-00 ELECT 0.1uF 20% 50V R481 —- 1-247-843-11 CARBON 3.3K 5% 1/4W
C473. =: 1-137-368-11 FILM 0.0047uF 5% 50V R482 _—-1-247-883-00 CARBON 150K 5% 1/4W
C474: 1-137-372-11 FILM 0.022uF 5% 50V R483 —- 1-249-427-11 CARBON 6.8K 5% /4W OF
C475 =: 1-126-096-11 ELECT 10uF 20% 35V
R484 —- 1-249-413-11 CARBON 470 5% 1/AW OF
C476 =: 1-126-096-11 ELECT 10uF 20% 35V R491 = 1-249-441-11 CARBON 100K 5% 1/4W
C477: 1-124-252-00 ELECT 0.33uF 20% 50V R492 ~—- 1-247-903-00 CARBON 1M 5% 1/4W
C478 ~—s- 1-130-489-00 MYLAR 0.033uF 5% 50V R494 —- 1-247-903-00 CARBON 1M 5% 1/4W
C479_~—s- 1-102-973-00 CERAMIC 100PF 5% 50V
C492 = 1-124-464-11 ELECT 0.22uF 20% 50V < VARIABLE RESISTOR >
C601 =: 1-126-163-11 ELECT 4.7uF 20% ‘50V — RV404_ = 1-225-229-11 RES, VAR, CARBON 100KX4
C651 =: 1-126-163-11 ELECT 4.7UF 20% 50V (MASTER VOLUME)
C701 = 1-126-163-11 ELECT 4.7uF 20% 50V RV421 —_1-223-362-11 RES, VAR, CARBON 100K/100K (BASS)
C751 = 1-126-163-11 ELECT 4.7uF 20% 50V RV422 1-223-363-11 RES, VAR, CARBON 125K/125K (TREBLE)
RV423 1-225-447-11 RES, VAR, CARBON 100K/100K (BALANCE)
