STR-DE475

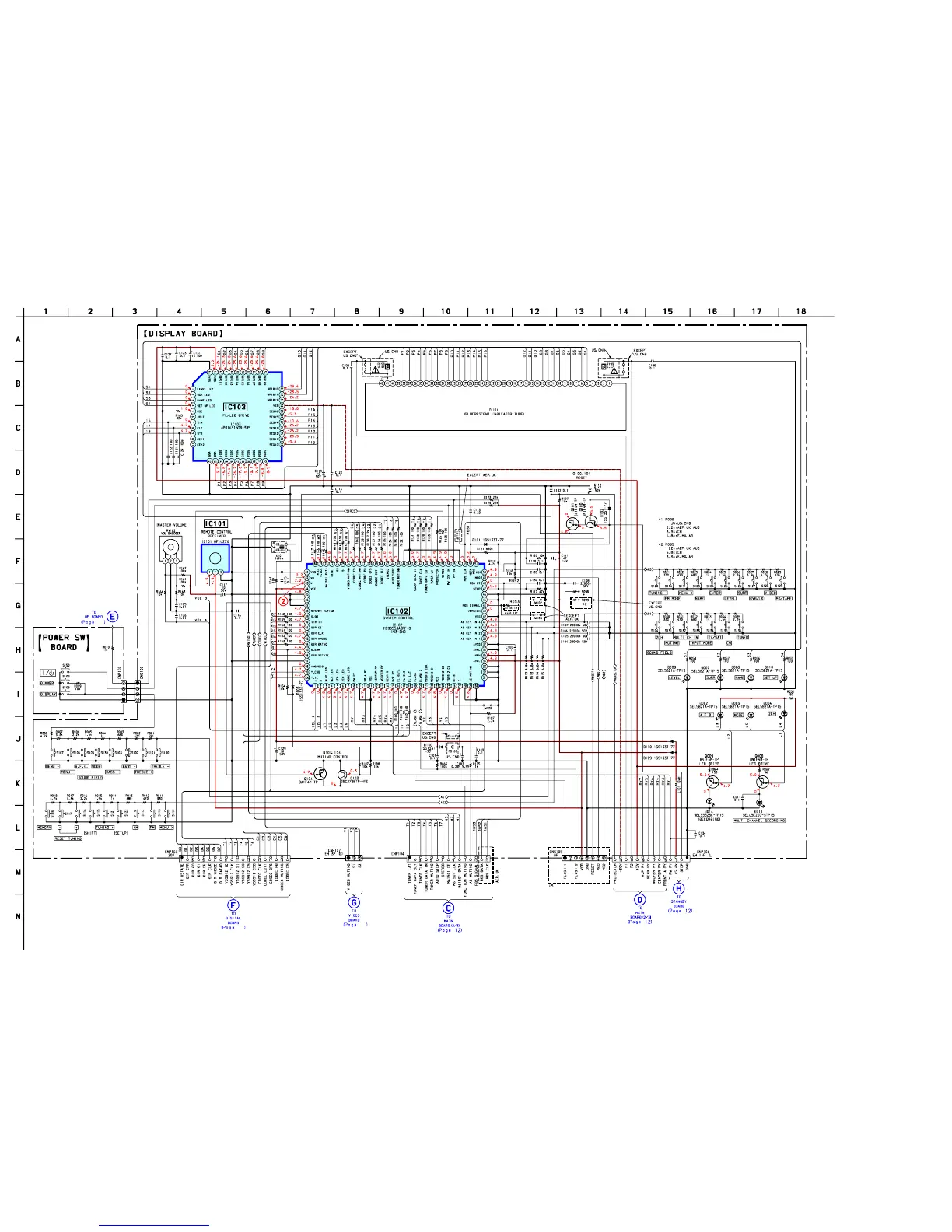

3-10. SCHEMATIC DIAGRAM – DISPLAY SECTION –
• See page 23 for IC Pin Function. • See page 7 for Waveforms.
