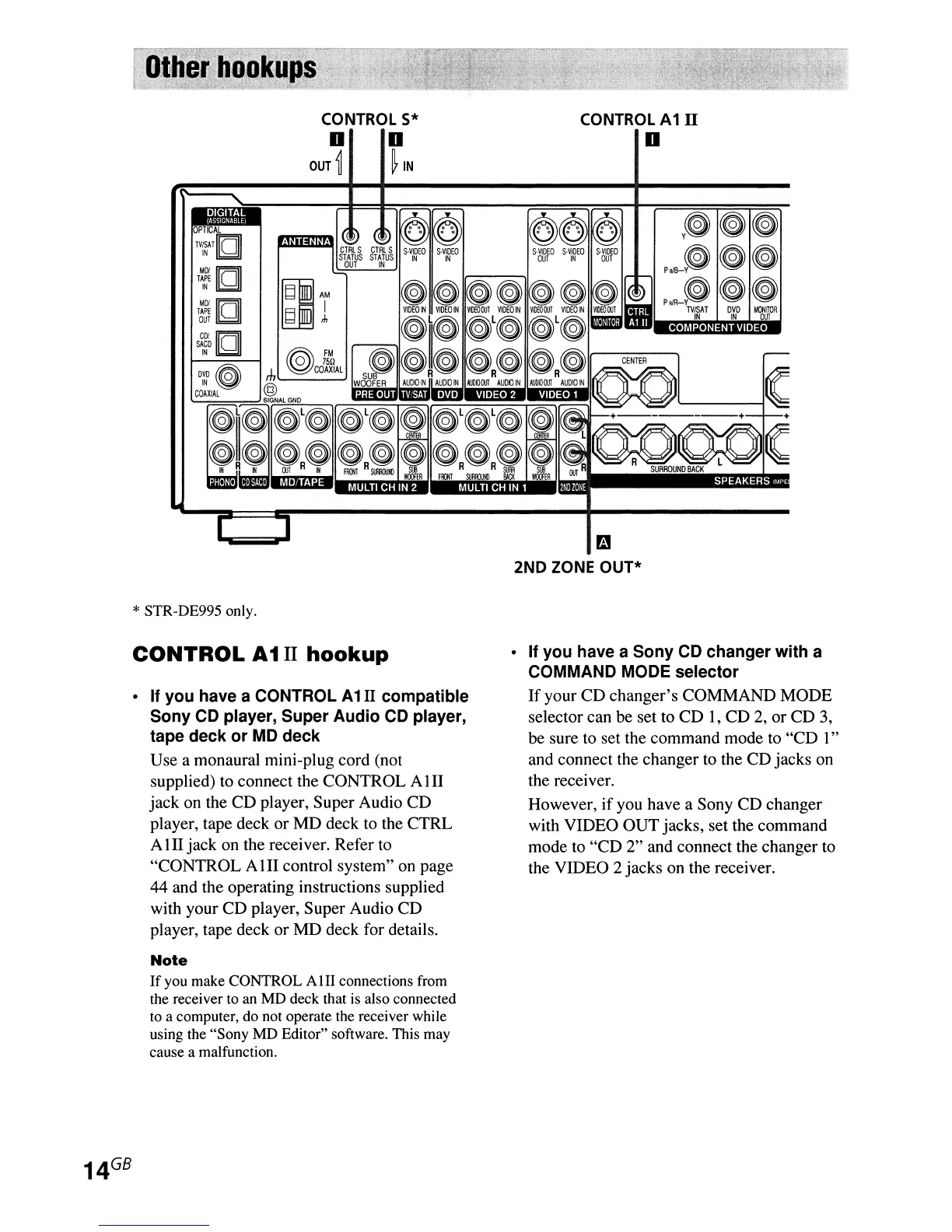

Sony STR-DE995 - Other Hookups; CONTROL A1 II Hookup; If You Have a CONTROL A1 II Compatible Sony CD Player, Super Audio CD Player, Tape Deck or MD Deck; If You Have a Sony CD Changer with a COMMAND MODE Selector

88 pages
