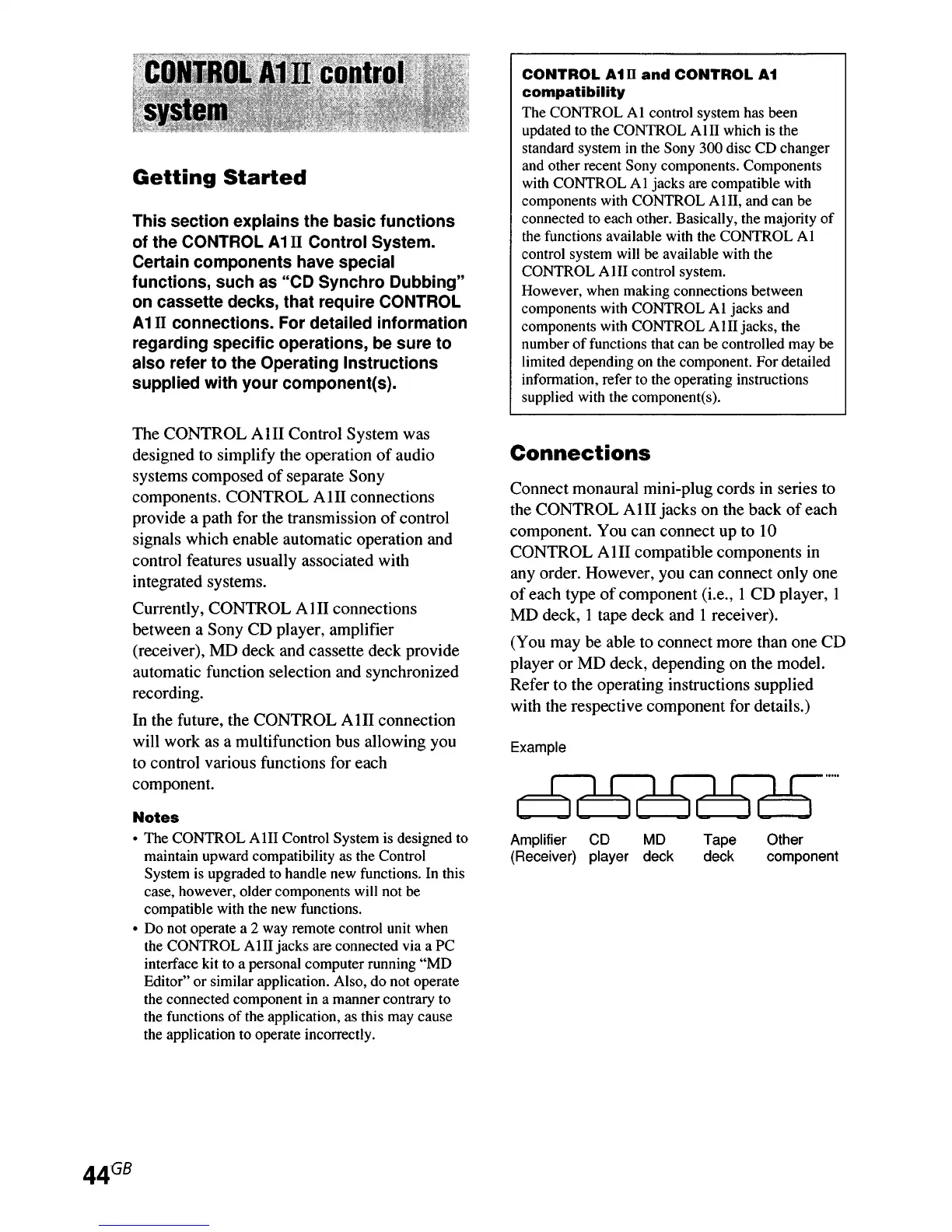

Sony STR-DE995 - CONTROL A1 II Control System; Getting Started; Connections; CONTROL A1 II and CONTROL A1 Compatibility
