Sony STR-GA7ES - Rear Panel Descriptions

29
EN
1 ANTENNA (AM/FM)
2 TV/DBS
3 LD
4 VIDEO 2
5 VIDEO 1
6 MONITOR
7 IMPEDANCE SELECTOR
(see page 7)
8 FRONT SPEAKERS (A/B)
9 SWITCHED AC OUTLETs
(Outlet shape and position varies
according to destination)
0 AC power cord
!¡ VOLTAGE SELECTOR (certain
models only)
!™ REAR SPEAKERS
!£ CENTER SPEAKER
!¢ POWER SWAP (see page 7)
!∞ SURROUND OUT (CENTER)
!§ SURROUND OUT (WOOFER)
!¶ SURROUND OUT (REAR)
!• LOW FILTER (see page 7)
!ª 5.1 INPUT (CENTER)
@º 5.1 INPUT (WOOFER)
@¡ 5.1 INPUT (REAR)
@™ 5.1 INPUT (FRONT)
@£ TAPE
@¢ DAT/MD
@∞ CD
@§ PHONO
@¶ y ground terminal

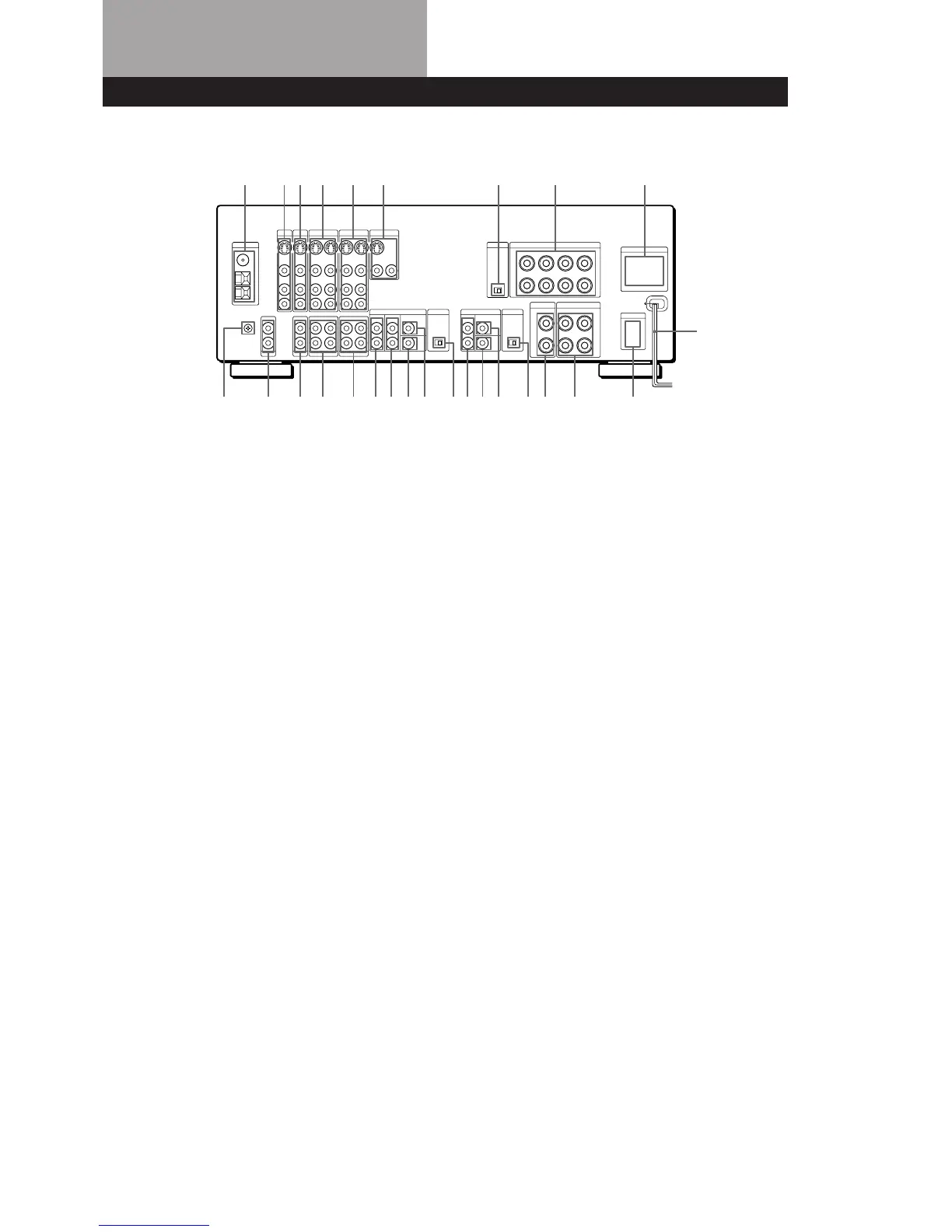

Rear Panel Descriptions
123456 7 8 9
0
!™!£!¶@¡@™@£
@¢
@∞@§@¶ !¢!∞!§!•@º!ª !¡
