Sony STR-GX211 Service Manual

GENERAL
instruction
manual.
nH
S14)
(5)
(SlCz18)
(SIF
Identifying
Parts
and
Controls

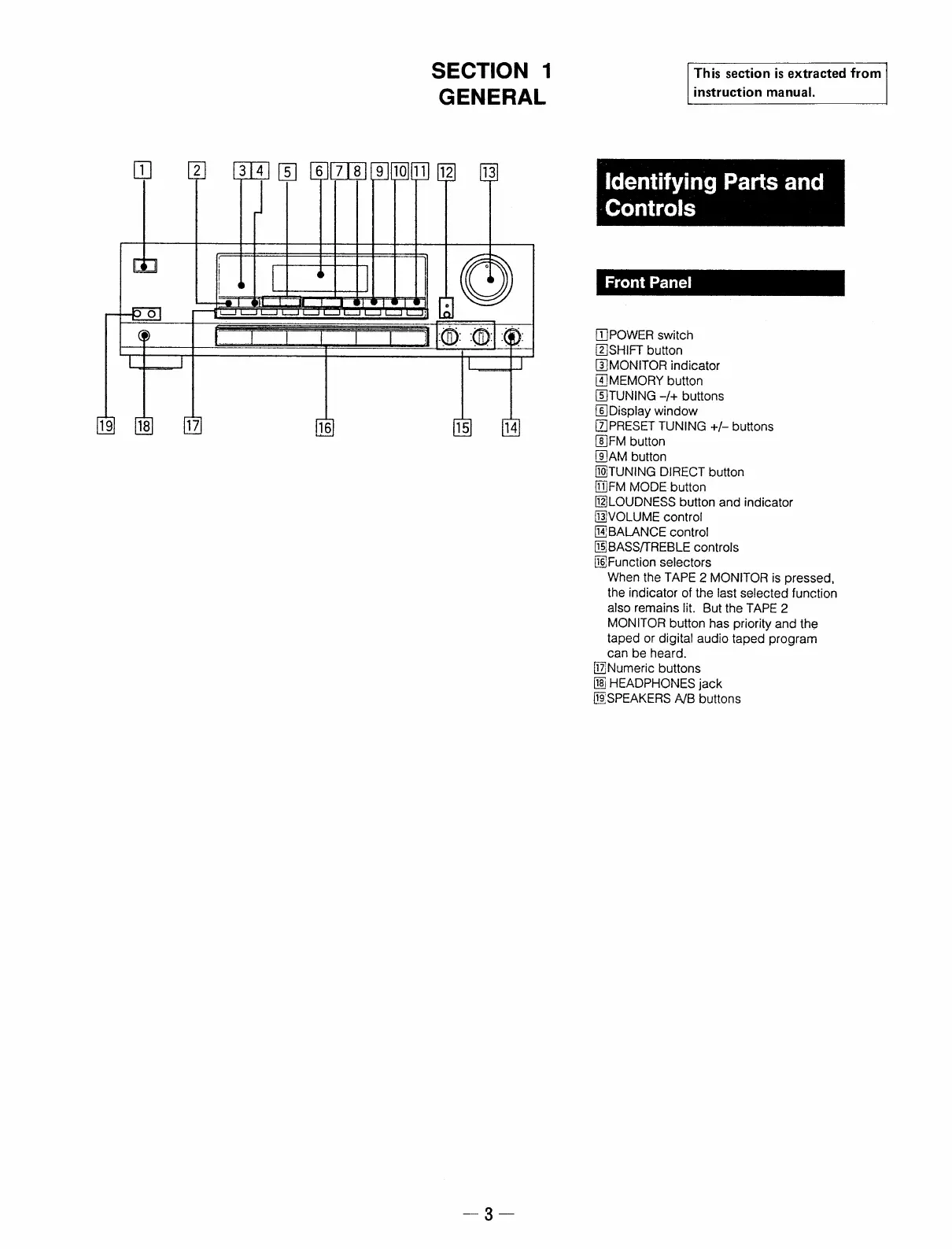

Front Panel
{TIPOWER switch
[2]SHIFT button
[3}MONITOR indicator
[4JMEMORY button
[S]JTUNING —/+ buttons
{6]Display window
18 17 15 14 (ZJPRESET TUNING +/- buttons
18 uw 6] 15 14 [8]FM button
(9]AM button
floX TUNING DIRECT button
{FM MODE button
fi2,LOUDNESS button and indicator
{13} VOLUME control
(41BALANCE contro!
{iS BASS/TREBLE controls
fig Function selectors
When the TAPE 2 MONITOR is pressed,
the indicator of the last selected function
also remains lit. But the TAPE 2
MONITOR button has priority and the
taped or digital audio taped program
can be heard.
fi7iNumeric buttons
(is) HEADPHONES jack
fig SPEAKERS A/B buttons

Sony STR-GX211 Specifications

General

Brand	Sony
Model	STR-GX211
Category	Stereo Receiver
Language	English
