Sony STR-K1000P Service Manual

2525
STR-K1000P
STR-K1000P

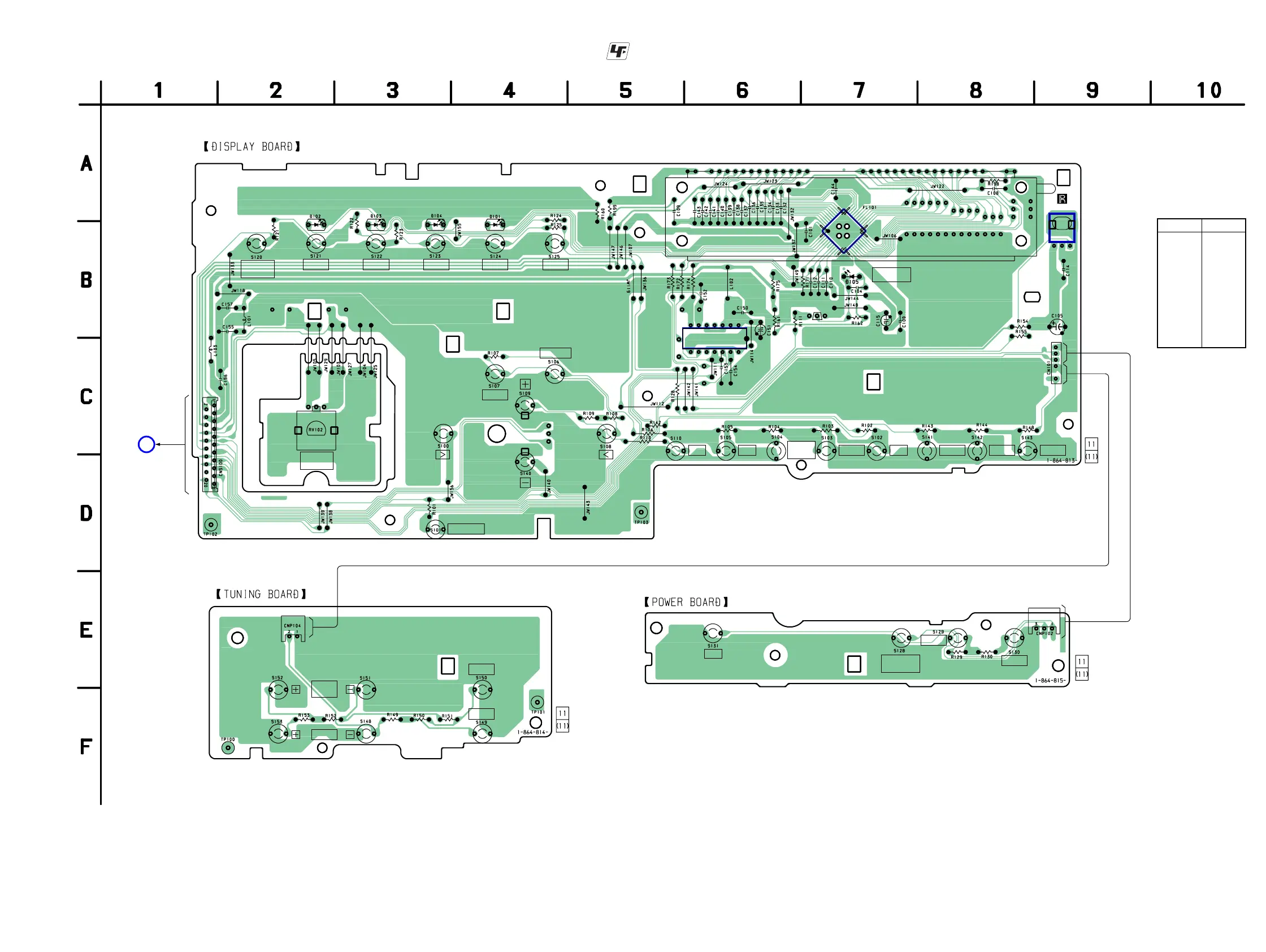

3-14. PRINTED WIRING BOARD – DISPLAY SECTION –
IC102
IC100
IC101
A
DIGITAL BOARD
CNS505
(Page 15)
MASTER
VOLUME
SURR BACK
DECODING
MUSIC MOVIE A.F.D. 2CH SLEEP
ENTER
MAIN MENU
INPUT MODE
AM FM DVD
SA-CD /
CD
MD/TAPE VIDEO 3 VIDEO 2 VIDEO 1
1
5
SPEAKERS
(OFF/A/B/A+B)
DISPLAY
DIMMER
?/1
MEMORY
FM MODE
TUNING
PRESET
TUNING
Q110
MUTI CHANNEL
DECODING
• Semiconductor
Location
Ref. No. Location
D101 B-4
D102 B-2
D103 B-3
D104 B-3
D105 B-7
IC100 A-7
IC101 B-6
IC102 A-9
Q110 C-7
:Uses unleaded solder.
• See page 11 for Circuit Boards Location.

Sony STR-K1000P Specifications

General

Type	AV receiver
Channels	5.1
Video Connections	Composite Video
Impedance	6 ohms
Dimensions	430 x 145 x 298 mm
Weight	7.2 kg
Speaker load impedance	6 ohms
Digital inputs	coaxial, optical
Frequency Response	10Hz
Output Power	100 W per channel (6 ohms, 1 kHz, THD 0.7%)
