Sony STR-K850P - Diagrams; Circuit Board Location

77
STR-K850P
• Waveforms
DIGITAL Board
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. p : pF. 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•%: indicates tolerance.
•
f
: internal component.
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
No mark : FM
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
• Circled numbers refer to waveforms.
• Signal path.
F : FM
J : CD (ANALOG)
c : DVD (DIGITAL)
•Abbreviation
CND : Canadian model
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in each
block.)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side B) the parts face are indicated.
For printed wiring boards.
Note:
• X : parts extracted from the component side.
•
a
: Through hole.
•
f
: internal component.
• : Pattern from the side which enables seeing.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
1 IC1101 wa (XOUT)
4.3Vp-p
1V/DIV, 40ns/DIV
81.4ns
(12.288MHz)
2 IC1201 9 (MCLK1)
3.4Vp-p
73.6ns (13.59MHz)
1V/DIV, 40ns/DIV
3 IC1601 id (XI)
3.5Vp-p
62.5ns (16MHz)
1V/DIV, 40ns/DIV
SECTION 3
DIAGRAMS

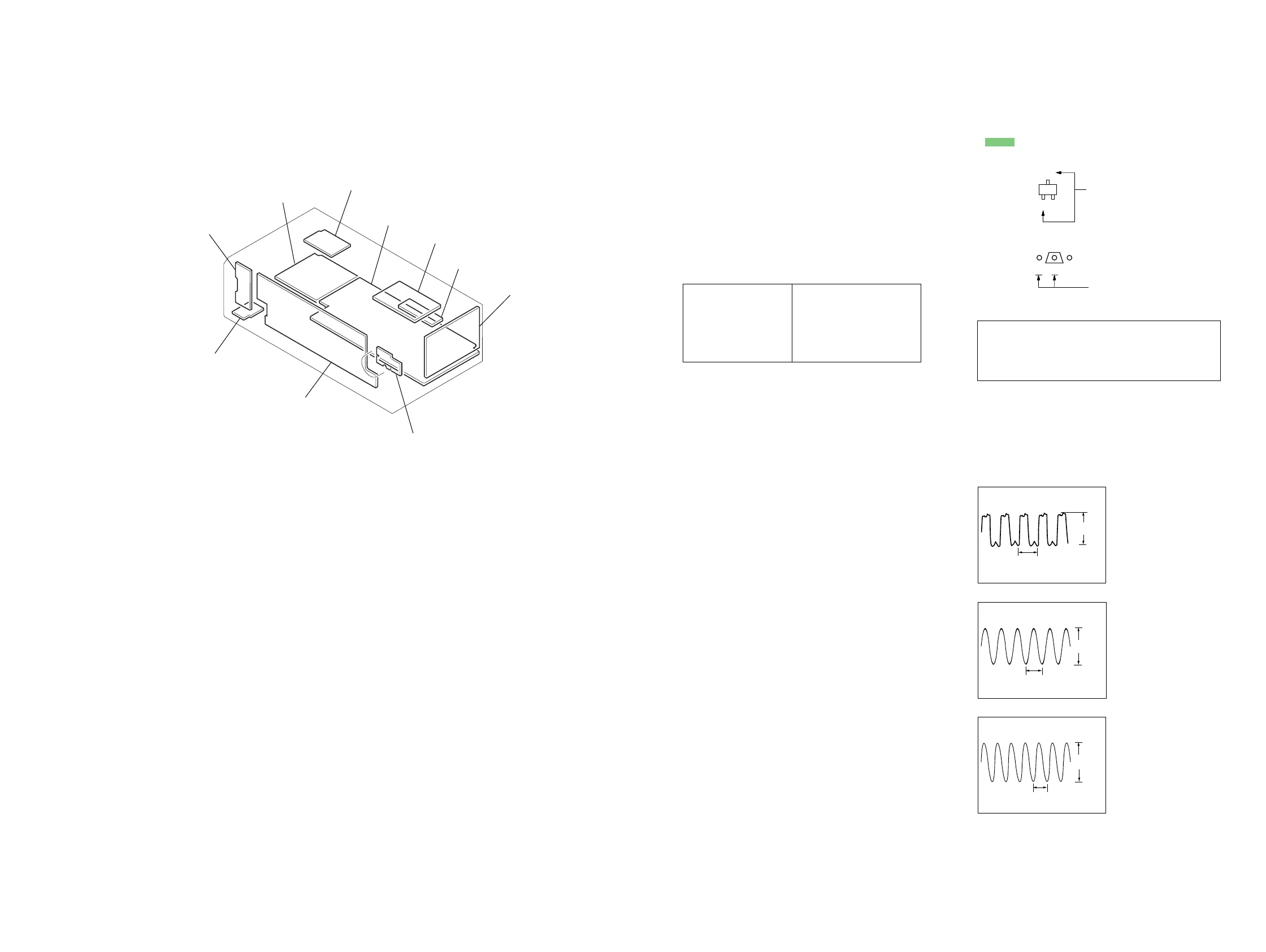

3-1. Circuit Board Location
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
MAIN board
BRIDGEABLE board
DISPLAY board
HEADPHONE board
STANDBY board
VIDEO board
S-VIDEO board
DIGITAL boar
d
VOLUME board
POWER board
