Sony STR-K990 - 5 Exploded Views; Front Panel Section

47
STR-K990
6 3-087-053-01 +BVTP2.6 (3CR)
7 A-1242-877-A DISPLAY BOARD, COMPLETE
8 1-829-994-11 WIRE (FLAT TYPE) (17 CORE)
9 3-363-099-02 SCREW (CASE 3 TP2)
10 3-354-981-11 SPRING (SUS), RING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 2-661-142-01 VOLUME KNOB
2 2-661-141-01 MENU KNOB
3 2-661-145-11 CASE
4 X-2176-942-1 FRONT PANEL ASSY (US)
4 X-2176-943-1 FRONT PANEL ASSY (CND)
5 4-977-358-01 CUSHION

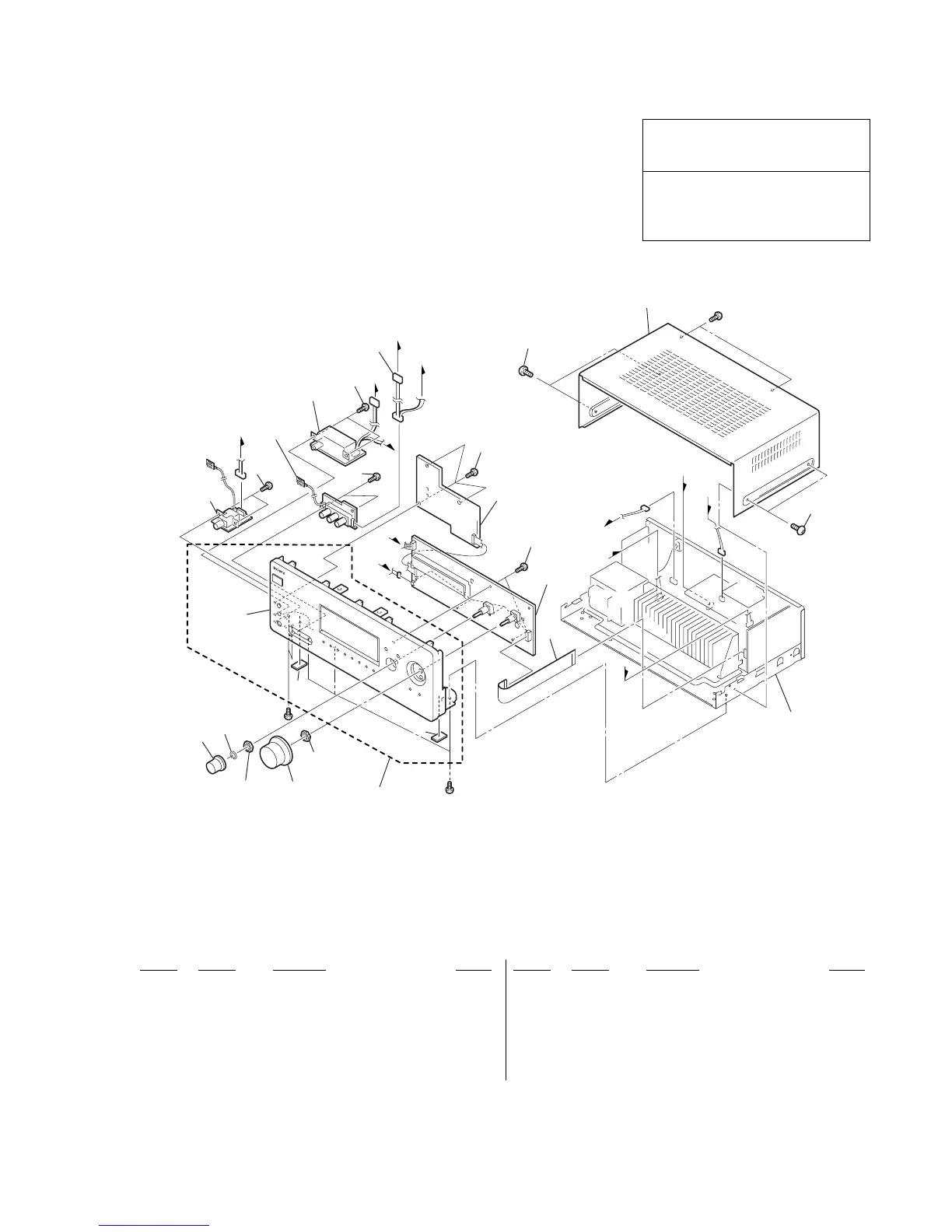

5-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•Abbreviation
CND : Canadian model
9
9
3
#1
6
6
7
1
2
5
5
4
6
6
6
#1
#1
chassis section
supplied
with RV102
supplied
with RV101
not
supplied
10
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
8
a
a
b
f
f
e
c
c
b
e
d
d
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
