STR-KG700
2
SAFETY CHECK-OUT
After correcting the original service problem, perform the
following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’ instructions to
use these instruments.
2. A battery-operated AC miliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Meausring the voltage drop across a resistor by means of a
VOM or battery-operated AC volmeter. The “limit
” indication is 0.75 V, so analog meters must have an
accurate low-voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that is suitable.
Nearly all battery operated digital multimeters that have a 2
V AC range are suitable. (See Fig. A)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENT IDENTIFIED BY MARK
OR DOTTED
LINE WITH MARK ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
4)
You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning
in any AM station, turn off the receiver. While holding down MOVIE ,
press
&/1
. All preset stations will be erased when you change the tun-
ing scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure.
General
Power requirements
Area code Tuning scale
US, Canadian 120 V AC, 60 Hz
AEP 230 V AC, 50/60 Hz
AUS 230 V AC, 50 Hz
E51 120/220/240V AC, 50/60 Hz
AR 220 – 230 V AC, 50/60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption
Area code Tuning scale
US 220W
Canadian 290VA
AEP, AUS 220W
E51, AR 220 W
Power consumption (during standby mode)
0.3 W
Dimensions (width/height/depth) (Approx.)
17 × 5
3
/
4
× 12
1
/
8
inches
430 × 145 × 306 mm
including projecting parts and controls
16 lb 6oz (7.4 kg) (US, Canadian)
Mass (Approx.) 7.7 kg
Design and specifi cations are subject to
change without notice.
• Abbreviation
AR : Argentina model
AUS : Australian model
E51 : Chilean and Peruvian model
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

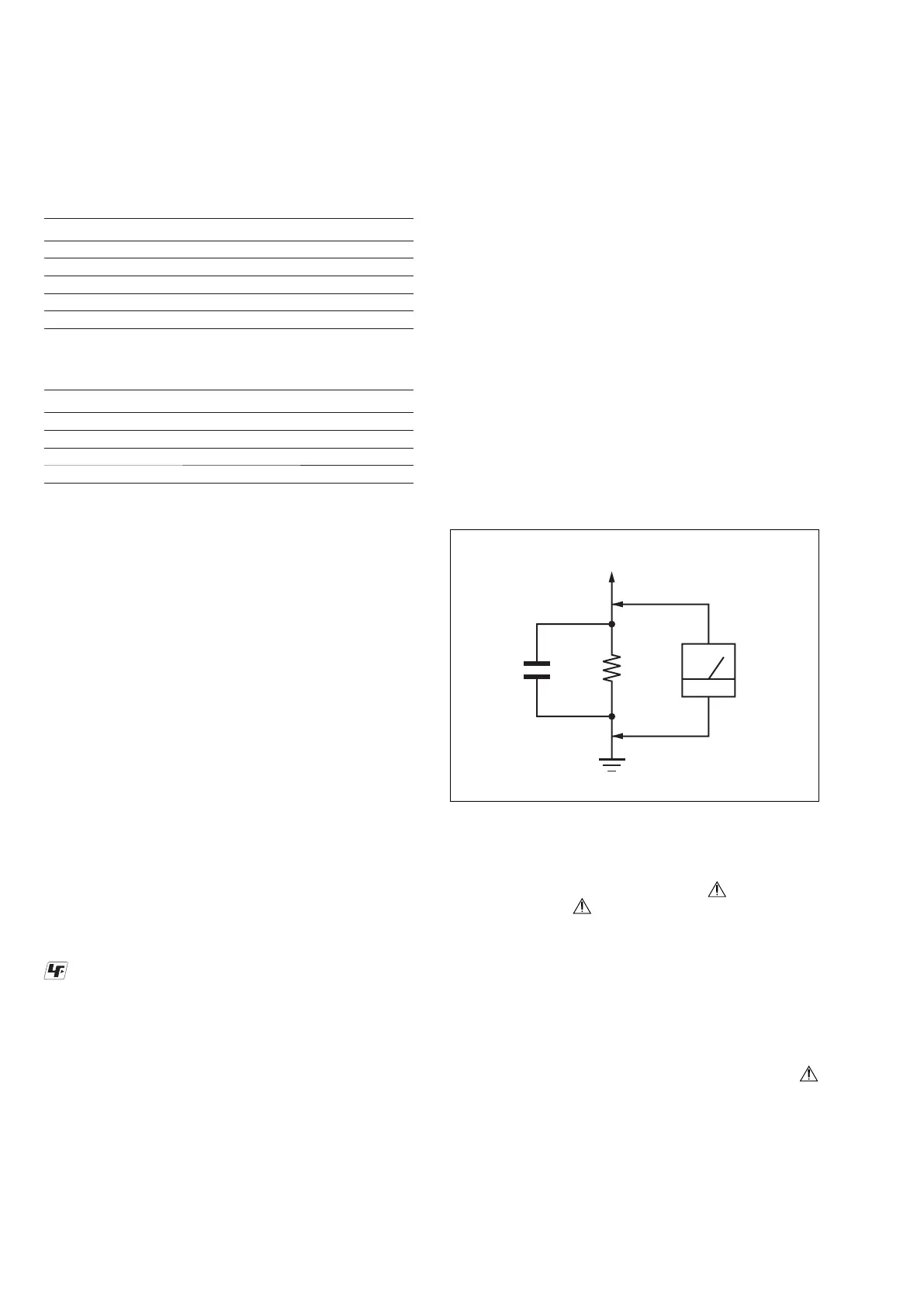

Fig.A. Using an AC voltmeter to check AC leakage.
1.5 k
Ω
0.15
μ
F
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
Ver. 1.3
