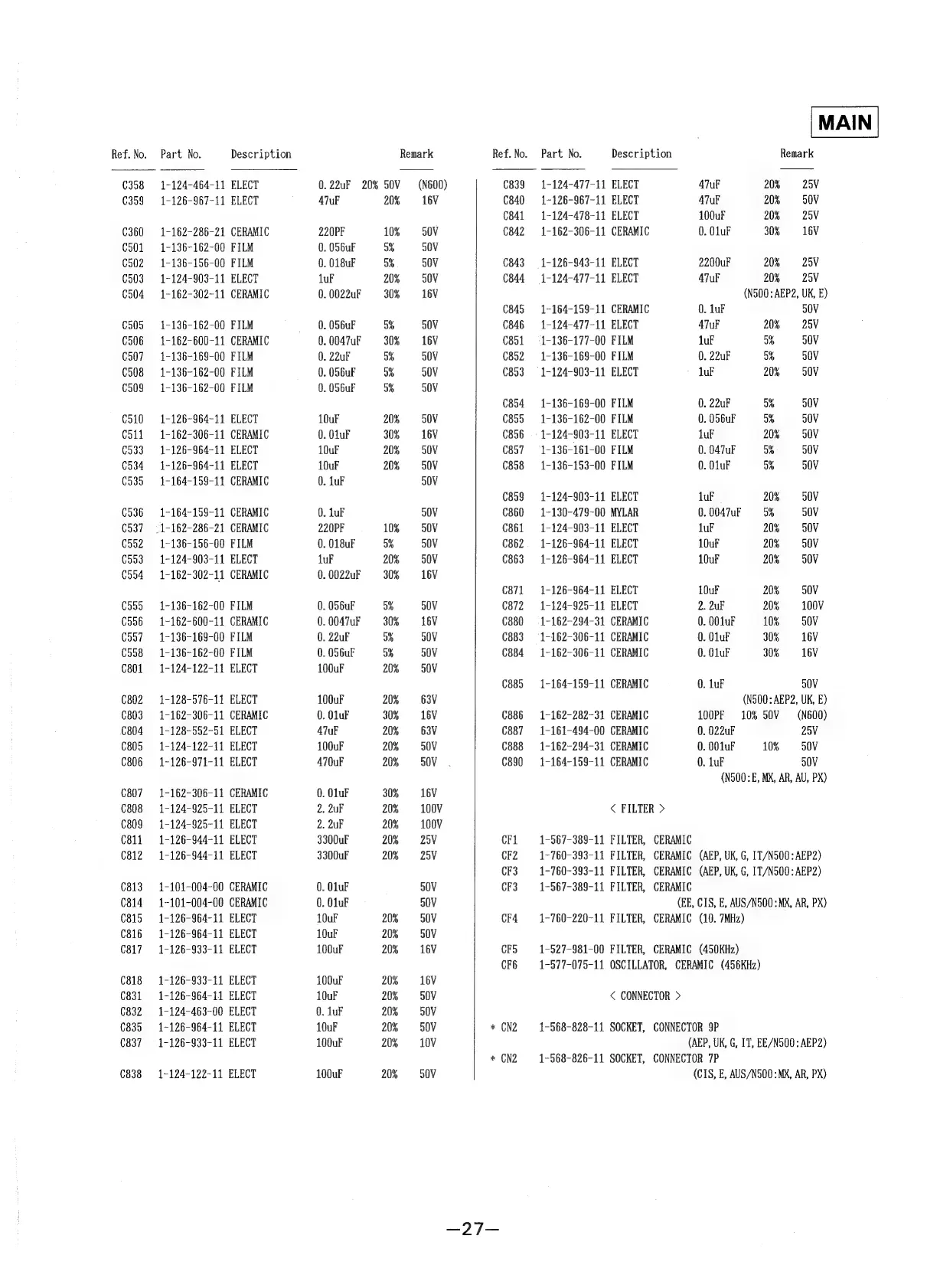

Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
(358 1-124-464-11 ELECT 0.22uF 20% 50V (N600) C839 1-124-477-11 ELECT A7uF 20% 25V
0359 1-126-967-11 ELECT 47uF 20% 16V C840 1-126-967-11 ELECT ATuF 20% 50V
C841 =1-124-478-11 ELECT 100uF 20% 25V
C360 1-162-286-21 CERAMIC 220PF 10% 50V C842 1-162-306-11 CERAMIC 0. OluF 30% 16V
C501 1-136-162-00 FILM 0. 056uF 5% 50V
C502 1-136-156-00 FILM 0. 018uF oO 50V C843. = 1-126-943-11 ELECT 2200uF 20% 25V
C503 1-124-903-11 ELECT luF 20% 50V C844 = 1-124-477-11 ELECT 47uF 20% 25V
C504 1-162-302-11 CERAMIC 0. 0022uF 30% 16V (N500: AEP2, UK, E)
C845 1-164-159-11 CERAMIC 0. luF 50V
C505 1-136-162-00 FILM 0. 056uF 5% 50V C846 = =1-124-477-11 ELECT ATuF 20% 25V
C506 1-162-600-11 CERAMIC 0. 0047uF 30% 16V C851 =: 1-136-177-00 FILM luF om 50V
C507 1-136-169-00 FILM 0. 22uF 5% 50V C852 1-136-169-00 FILM 0. 22uF om 50V
C508 1-136-162-00 FILM 0. 056uF 5% 50V C853. = 1-124-903-11 ELECT ~ luF 20% 50V
C509 1-136-162-00 FILM 0. 056uF a” 50V
C854 =1-136-169-00 FILM 0. 22uF 5% 50V
510 1-126-964-11 ELECT 10uF 20% 50V C855 = 1-136-162-00 FILM 0. O56uF 5% 50V
C5ti = 1-162~-306-11 CERAMIC 0. O1uF 30% 16V C856 = 1-124-903-11 ELECT uF 20% 50V
C533 =©1-126-964-11 ELECT 10uF 20% 50V C857. =: 1-136-161-00 FILM 0. 047uF 5% 50V
C534 =1-126-964-11 ELECT 10uF 20% 50V C858 1-136-153-00 FILM 0. OluF 5% 50V
C535 1-164-159-11 CERAMIC 0. 1uF 50V
C859 + =1-124-903-11 ELECT luF 20% 50V
C536 1-164-159-11 CERAMIC 0. 1uF 50V C860 1-130-479-00 MYLAR 0.0047uF 5% 50V
C537. =: 1-162-286-21 CERAMIC 220PF 10% 50V C861 1-124-903-11 ELECT luF 20% 50V
C552 1-136-156-00 FILM 0. 018uF 5% 50V C862. 1-126-964-11 ELECT 10uF 20% 50V
(553 1-124-903-11 ELECT luF 20% 50V C863 1-126-964-11 ELECT 10uF 20% 50V
¢554 1-162-302-11 CERAMIC 0. 0022uF 30% 16V
C871 =1-126-964-11 ELECT 10uF 20% 50V
(555 1-136-162-00 FILM 0. 056uF 5% 50V C872 1-124-925-11 ELECT 2. 2uF 20% 100V
C556 1-162-600-11 CERAMIC 0. 0047uF 30% 16V C880 = 1-162-294-31 CERAMIC 0. OO1uF 10% 50V
C557 ~=1-136-169-00 FILM 0. 22uF 5% 50V C883 = 1-162-306-11 CERAMIC 0. OluF 30% 16V
C558 1-136-162-00 FILM 0. 056uF 5% 50V C884 1-162-306-11 CERAMIC 0. OluF 30% 16V
C801 1-124-122-11 ELECT 100uF 20% 50V
C885 1-164-159-11 CERAMIC 0. luF 50V
C802 = =1-128-576-11 ELECT 100uF 20% 63V (N500: AEP2, UK, E)
C803 1-162-306-11 CERAMIC 0. O1uF 30% 16V C886 1-162-282-31 CERAMIC 100PF 10% 50V (N600)
C804 = 1-128-552-51 ELECT ATuF 20% 63V C887 1-161-494-00 CERAMIC 0. 022uF 25V
C805 1-124-122-11 ELECT 100uF 20% 50V C888 1-162-294-31 CERAMIC 0. O01uF 10% 50V
C806 1-126-971-11 ELECT 470uF 20% SOV . C890 1-164-159-11 CERAMIC 0. LuF 50V
(N500:E, MX, AR, AU, PX)
C807 =1-162-306-11 CERAMIC 0. OluF 30% 16V
C808 1-124-925-11 ELECT 2. 2uF 20% 100V < FILTER >
C809 1-124-925-11 ELECT 2. 2uF 20% 100V
C811 1-126-944-11 ELECT 3300uF 20% 25V CF1 1-567-389-11 FILTER, CERAMIC
C812 1-126-944-11 ELECT 3300uF 20% 25V CF2 1-760-393-11 FILTER, CERAMIC (AEP, UK, G, IT/N500:AEP2)
CF3 1-760-393-11 FILTER, CERAMIC (AEP, UK, G, IT/N500:AEP2)
¢813 1-101-004-00 CERAMIC 0. O1uF 50V CF3 1-567-389-11 FILTER, CERAMIC
C814 1-101-004-00 CERAMIC 0. OluF 50V (EE, CIS, E, AUS/N500:MX, AR, PX)
C815 1-126-964-11 ELECT 10uF 20% 50V CF4 1-760-220-11 FILTER, CERAMIC (10. 7MHz)
C816 =1-126-964-11 ELECT 10uF 20% 50V
C817 =1-126-933-11 ELECT 100uF 20% 16V CF5 1-527-981-00 FILTER, CERAMIC (450KHz)
CF6 1-577-075-11 OSCILLATOR, CERAMIC (456KHz)
(818 1-126-933-11 ELECT 100uF 20% 16V
C831 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR >
C832 1-124-463-00 ELECT 0. luF 20% 50V
(835 =©1-126-964-11 ELECT 10uF 20% 50V * ON2 1-568-828-11 SOCKET, CONNECTOR SP
C837 = 1-126-933-11 ELECT 100uF 20% 10V (AEP, UK, G, IT, EE/N500 : AEP2)
* CN2 1-568-826-11 SOCKET, CONNECTOR 7P
C838 1-124-122-11 ELECT 100uF 20% 50V (CIS, E, AUS/N500 : MX, AR, PX)
