Sony STR-ZA1000ES Service Manual

STR-ZA1000ES/ZA2000ES/ZA3000ES
9

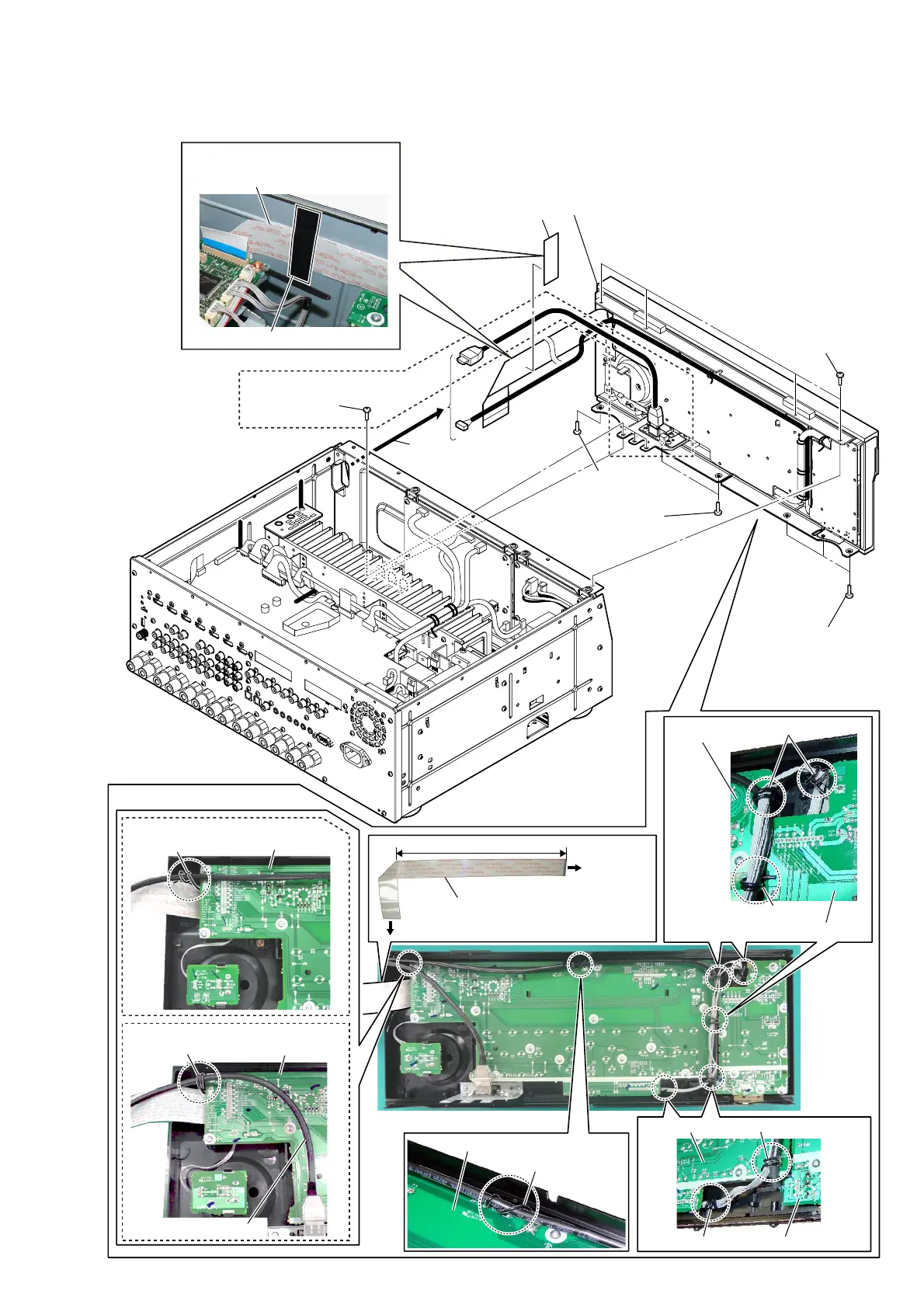

2-5. FRONT PANEL BLOCK-2
1 three screws
(BVTP3 u 8)
2 saranet cushion
(LXWXT)
1 four screws
(BVTP3 u 8)
1 three screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
lead pin
1 screw
(BVTP3 u 8)
lead pin
4 front panel block
3 Draw the wires out of
the hole in chassis.
– Rear view –
– Front panel block rear view –
DISPLAY board
DISPLAY board
lead pin
DISPLAY board
HDMI cable
DISPLAY board
POWER_KEY board
POWER_KEY board
lead pin
lead pin
lead pin
lead pin
DISPLAY board
to DISPLAY
board
to DIGITAL board
flexible flat cable (FFC 29P (400))
long side
 :ire VettinJ
(ZA2000ES/ZA3000ES)
(ZA1000ES)
(ZA2000ES/ZA3000ES)
saranet cushion (LXWXT)
 :ire VettinJ
flexible flat cable (FFC 29P (400))
Ver. 1.1
