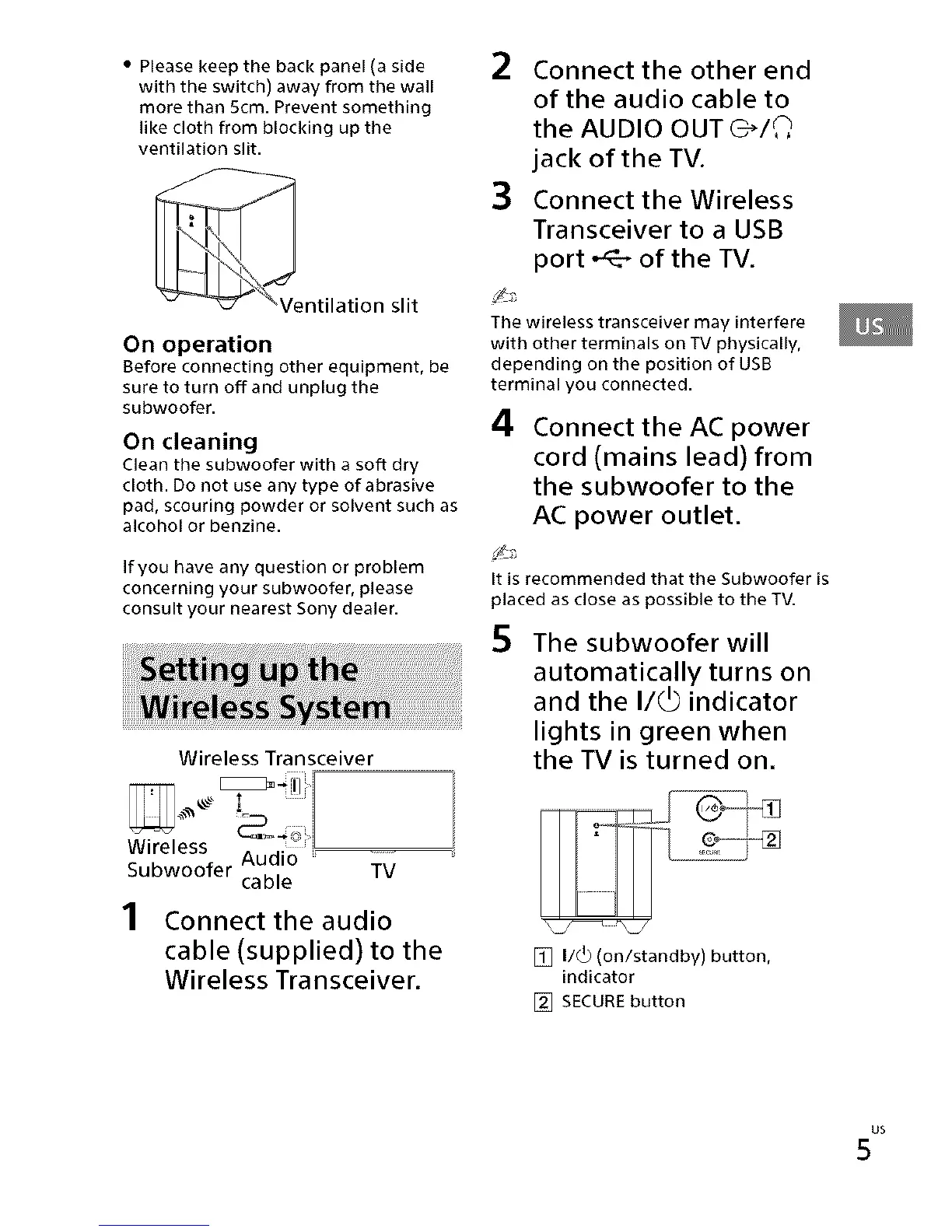

Sony SWF-BR100 User Manual

•Pleasekeepthebackpanel(aside
withtheswitch)awayfromthewall
morethan5cm.Preventsomething
likeclothfromblockingupthe
ventilationslit.
Ventilation slit
On operation
Before connecting other equipment, be
sure to turn off and unplug the
subwoofer.
On cleaning
Clean the subwoofer with a soft dry
cloth. Do not use any type of abrasive
pad, scouring powder or solvent such as
alcohol or benzine.
If you have any question or problem
concerning your subwoofer, please
consult your nearest Sony dealer.
Wireless Transceiver
Wireless '_ _i
h
Subwoofer caUb_e TV
1 Connect the audio
cable (supplied) to the
Wireless Transceiver.
2 Connect the other end
of the audio cable to
the AUDIO OUT C-_/_
jack of the TV.
3 Connect the Wireless
Transceiver to a USB
port _ of the TV.
The wireless transceiver may interfere
with other terminals on TV physically,
depending on the position of USB
terminal you connected.
4 Connect the AC power
cord (mains lead) from
the subwoofer to the
AC power outlet.
It is recommended that the Subwoofer is
placed as close as possible to the TV.
S The subwoofer will
automatically turns on
and the I/_) indicator
lights in green when
the TV is turned on.
\yL %_/
[] I/_ (on/standby) button,
indicator
[] SECURE button
us

Sony SWF-BR100 Specifications

General

Product color	White
Impedance	4 Ω
Subwoofer type	Active subwoofer
Wireless subwoofer	Yes
Subwoofer frequency range	- Hz
AC input voltage	120 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W

Weight and Dimensions

Subwoofer depth	395 mm
Subwoofer width	272 mm
Subwoofer height	306 mm
Subwoofer weight	12200 g
