Sony TA-E9000ES Operating Instructions (primary manual) - Digital Component Hookups

6
GB
Hooking Up the Components
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
DIGITAL
OPTICAL
OUT
COAXIAL
OUT
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
AC-3
RF
OUT
DIGITAL
OPTICAL
OUT
COAXIAL
OUT
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
DIGITAL
OPTICAL
OUT
*
*
AC OUTLET
PHONO TUNER CD MD/DAT TAPE DVDTV LD VIDEO 3 VIDEO 2 VIDEO 1 PRE OUT
S-LINK
RS-232C
LDDVDTVMD/DATCD
MONITOR
LD
ANALYZER
MIC IN AC-3 RF
IN
OPTICAL
IN
COAXIAL
IN
OPTICAL
OUT
OPTICAL
IN
OPTICAL
IN
OPTICAL
IN
OPTICAL
IN
COAXIAL
IN
COAXIAL
IN
CTRL A1
CTRL S
IN
OUTOUTINOUTINOUTINOUTINOUTINININ
IN IN IN
REC OUT IN REC OUT IN ININ IN REC OUT IN REC OUT IN REC OUT IN FRONT REAR WOOFER
CENTER
VIDEO
S-VIDEO
AUDIO
L
R
PROCESSOR
L
R
SIGNAL GND
y

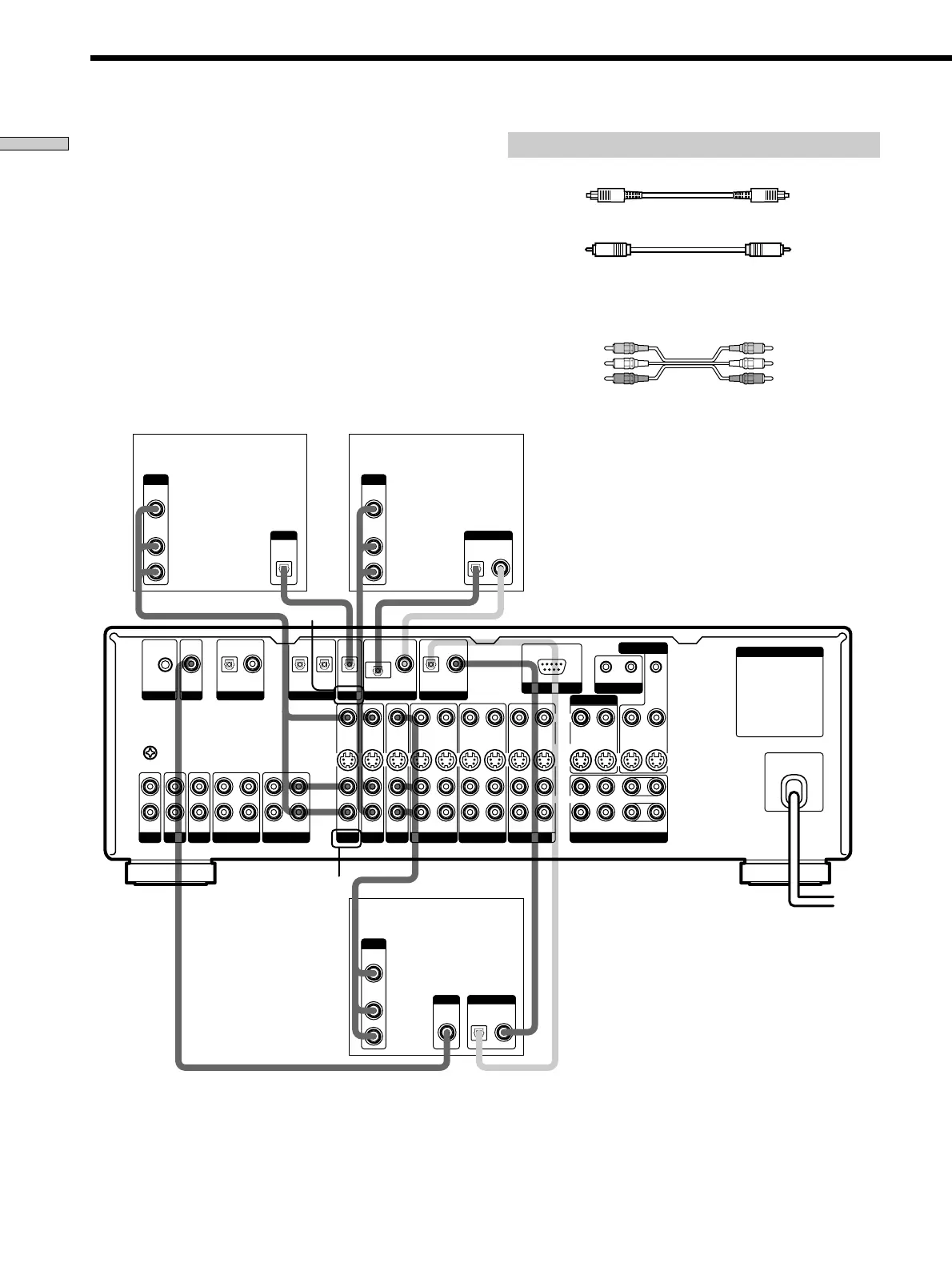

Connect the digital output jacks of your DVD player, LD
player, and TV tuner (etc.) to the control amplifier’s
digital input jacks to bring the multi channel surround
sound of a movie theater into your home.
If your LD (or LD/DVD) player is equipped with an AC-3
RF OUT jack, be sure to connect it to the control
amplifier’s LD AC-3 RF IN jack. This allows you to enjoy
multi-channel surround when playing LD software
encoded with Dolby Digital (AC-3).
Digital Component Hookups
Black Black
Yellow (video) Yellow (video)
White (L/audio) White (L/audio)
Red (R/audio) Red (R/audio)
Required cords
Optical digital cords (not supplied)
Coaxial digital cord (not supplied)
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
Yellow Yellow
TV tuner
(TV or DBS tuner)
DVD player
LD (LD/DVD) player
* TV : European Model
TV/DBS (Digital
Broadcasting
Satellite) : USA and
Canadian Models
Make connections
to either optical or
coaxial digital
audio jacks.
