Sony TA-F333ESL Service Manual

SECTION 6
EXPLODED VIEWS
NOTE:
@ -XX and -X mean standardized parts, so e@ Items marked “**” are not stocked since
they may have some difference from the they are seldom required for routine
original one. service. Some delay should be antici-
e Color Indication of Appearance Parts pated when ordering these items.
Example: e The mechanical parts with no reference
KNOB, BALANCE (WHITE)... (RED) number in the exploded views are not
* * supplied.
Parts Color Cabinet’s Color @ Hardware (# mark) list is given in the last
of this parts list.

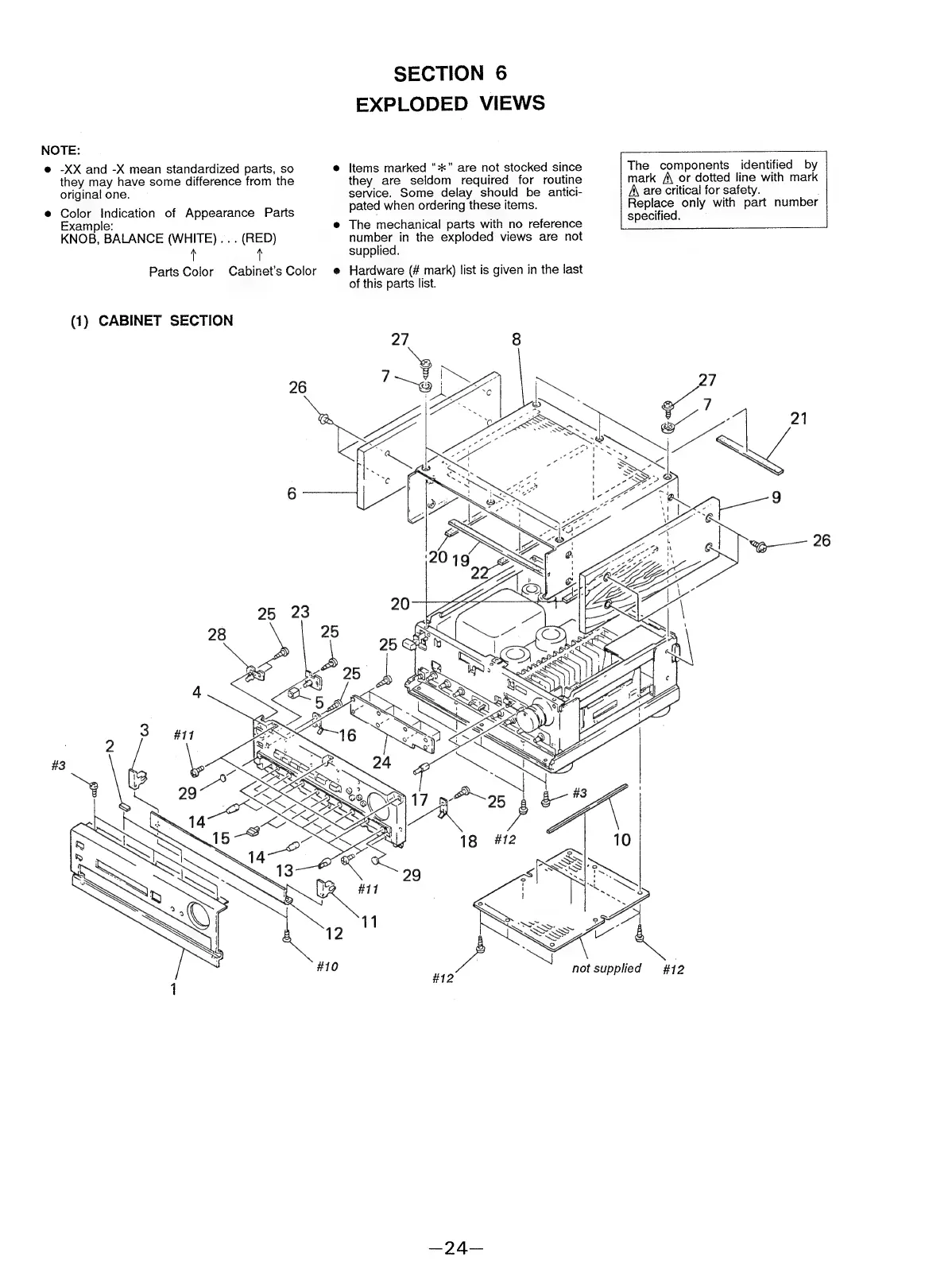

(1) CABINET SECTION
The components identified by
mark A\ or dotted line with mark
A are critical for safety.
Replace only with part number
specified.
not supplied 44 2
