Sony TA-F333ESL Service Manual

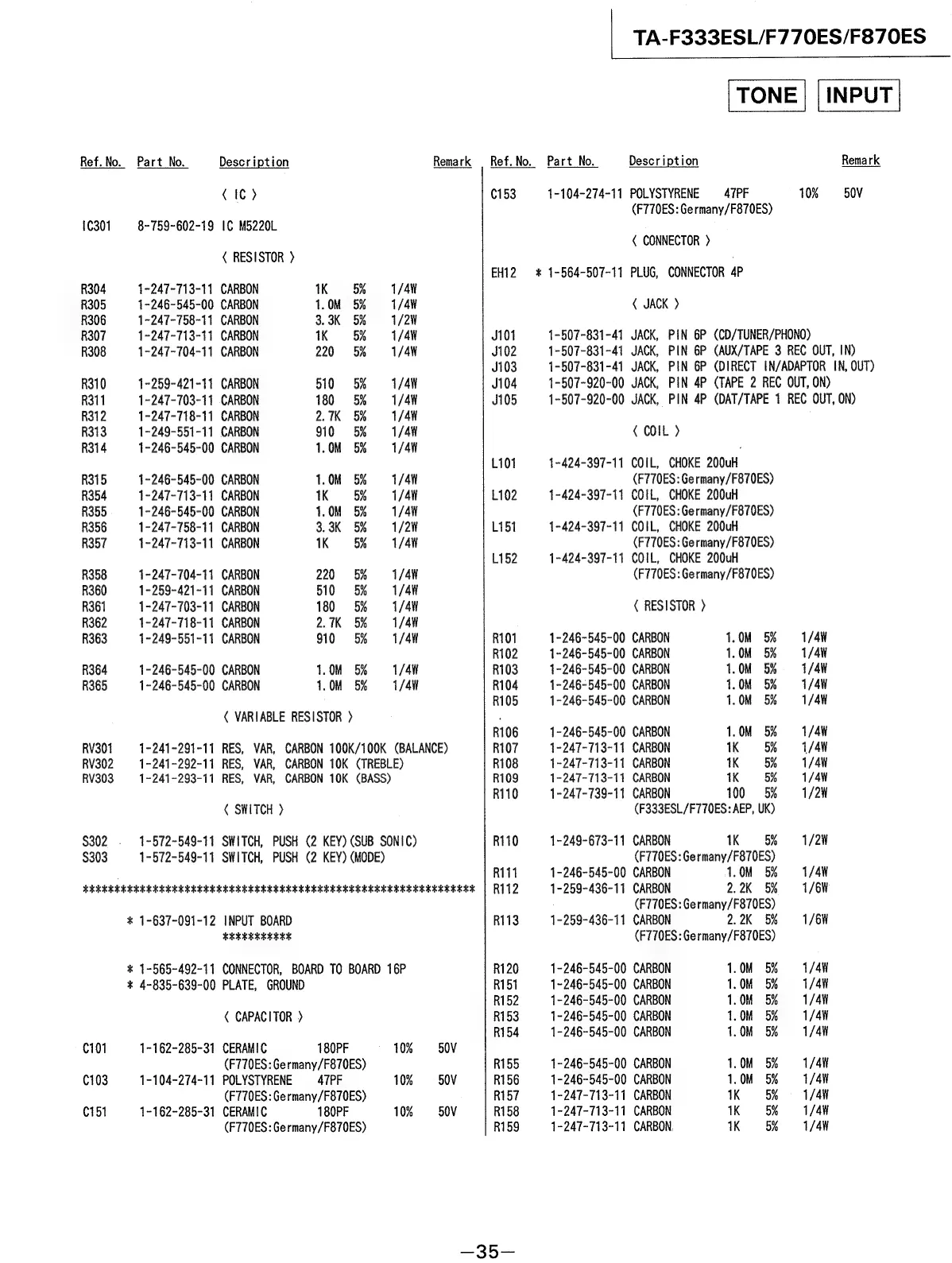

TA-F333ESL/F770ES/F870ES
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
( IC > C153 1-104-274-11 POLYSTYRENE 47PF 10% 50V
(F770ES: Germany/F870ES)
10301 8-759-602-19 IC M5220L
« CONNECTOR }
« RESISTOR })
FH12 * 1-564-507-11 PLUG, CONNECTOR 4P
R304 1-247-713-11 CARBON 1K 5% 1/4¥
R305 1-246-545-00 CARBON 1.0M 5% 1/4W { JACK >
R306 1-247-758-11 CARBON 3.3K 5% 1/2W
R307 1-247-713-11 CARBON 1K 5% 1/4W J101 1-507-831-41 JACK, PIN 6P (CD/TUNER/PHONO)
R308 1-247-704-11 CARBON 220 «5% 1/4W J102 1-507-831-41 JACK, PIN 6P (AUX/TAPE 3 REC OUT, IN)
J103 1-507-831-41 JACK, PIN 6P (DIRECT IN/ADAPTOR IN, OUT)
R310 1-259-421-11 CARBON 510 5% 1/4W J104 1-507-920-00 JACK, PIN 4P (TAPE 2 REC OUT, ON)
R311 1-247-703-11 CARBON 180 5% 1/4W J105 1-507-920-00 JACK, PIN 4P (DAT/TAPE 1 REC OUT, ON)
R312 1-247-718-11 CARBON 2.7K 5% 1/4W
R313 1-249-551-11 CARBON 910 5% 1/4W { COIL >)
R314 1-246-545-00 CARBON 1.0M 5% 1/44
L101 1-424-397-11 COIL, CHOKE 200uH
R315 1-246-545-00 CARBON 1.0M 5% 1/4W (F7T0ES:Germany/F870ES)
R354 1-247-713-11 CARBON 1K 5% 1/4W L102 1-424-397-11 COIL, CHOKE 200uH
R355 1-246-545-00 CARBON 1.0M 5% 1/4W (F770ES:Germany/F870ES)
R356 1-247-758-11 CARBON 3.3K 5% 1/2W L151 1-424-397-11 COIL, CHOKE 200uH
R357 1-247-713-11 CARBON 1K 5% 1/44 (F7T0ES: Germany/F870ES)
L152 1-424-397-11 COIL, CHOKE 200uH
R358 1-247-704-11 CARBON 220 5% 1/4W (F770ES: Germany/F870ES)
R360 1-259-421-11 CARBON 510 «5% 1/4W
R361 1-247-703-11 CARBON 180 5% 1/4W { RESISTOR )
R362 1-247-718-11 CARBON 2.1K 5% 1/4W
R363 1-249-551-11 CARBON 910 5% 1/4W R101 1-246-545-00 CARBON 1.0M 5% 1/4W
R102 1-246-545-00 CARBON 1.0M 5% 1/4W
R364 1-246-545-00 CARBON 1.0M 5% 1/4W R103 1-246-545-00 CARBON 1.0M 5% 1/4W
R365 1-246-545-00 CARBON 1.0M 5% 1/4W R104 1-246-545-00 CARBON 1.0M 5% 1/4W
R105 1-246-545-00 CARBON 1.0M 5% 1/4W
{ VARIABLE RESISTOR }) .
R106 1-246-545-00 CARBON 1.0M 5% 1/4W
RV301 1-241-291-11 RES, VAR, CARBON 100K/100K (BALANCE) R107 1-247-713-11 CARBON 1K 5% 1/4W
RV302 1-241-292-11 RES, VAR, CARBON 10K (TREBLE) R108 1-247-713-11 CARBON 1K 5% 1/4W
RV303 1-241-293-11 RES, VAR, CARBON 10K (BASS) R109 1-247-713-11 CARBON 1K 5% 1/4W
R110 1-247-739-11 CARBON 100 5% 1/2W
« SWITCH ) (F333ESL/F770ES: AEP, UK)
$302 . 1-572-549-11 SWITCH, PUSH (2 KEY) (SUB SONIC) R110 1-249-673-11 CARBON 1K 5% 1/2W
$303 1-572-549-11 SWITCH, PUSH (2 KEY) (MODE) (F770ES: Germany/F870ES)
R111 1-246-545-00 CARBON 1.0M 5% 1/4W
EXEKERAKEKAKAEKAKEERAAAKERKKEREARAKE RARER EER SAAR ERE K EERE ERE | R112 1-259-436-11 CARBON 2.2K 5% 1/6
(F770ES: Germany/F870ES)
* 1-637-091-12 INPUT BOARD R113 1-259-436-11 CARBON 2.2K 5% 1/6W
EKEKKKALELE (F770ES: Germany /F870ES)
* 1-565-492-11 CONNECTOR, BOARD TO BOARD 16P R120 1-246-545-00 CARBON 1.0M 5% 1/4W
* 4-835-639-00 PLATE, GROUND R151 1-246-545-00 CARBON 1.0M 5% 1/4¥
R152 1-246-545-00 CARBON 1.0M 5% 1/4W
{ CAPACITOR > R153 1-246-545-00 CARBON 1.0M 5% 1/4W
R154 1-246-545-00 CARBON 1.0M 5% 1/4W
C101 1-162-285-31 CERAMIC 180PF 10% 50V
(F770ES: Germany/F870ES) R155 1-246-545-00 CARBON 1.0M 5% 1/4W
C103 1-104-274-11 POLYSTYRENE 47PF 10% 50V R156 1-246-545-00 CARBON 1.0M 5% 1/44
(F770ES: Germany/F870ES) R157 1-247-713-11 CARBON 1K 5% SO /4W
C151 1-162~285-31 CERAMIC 180PF 10% 50V R158 1-247-713-11 CARBON 1K 5% 1/4W
(F770ES: Germany/F870ES) R159 1-247-713-11 CARBON. 1K 5% 1/4W
