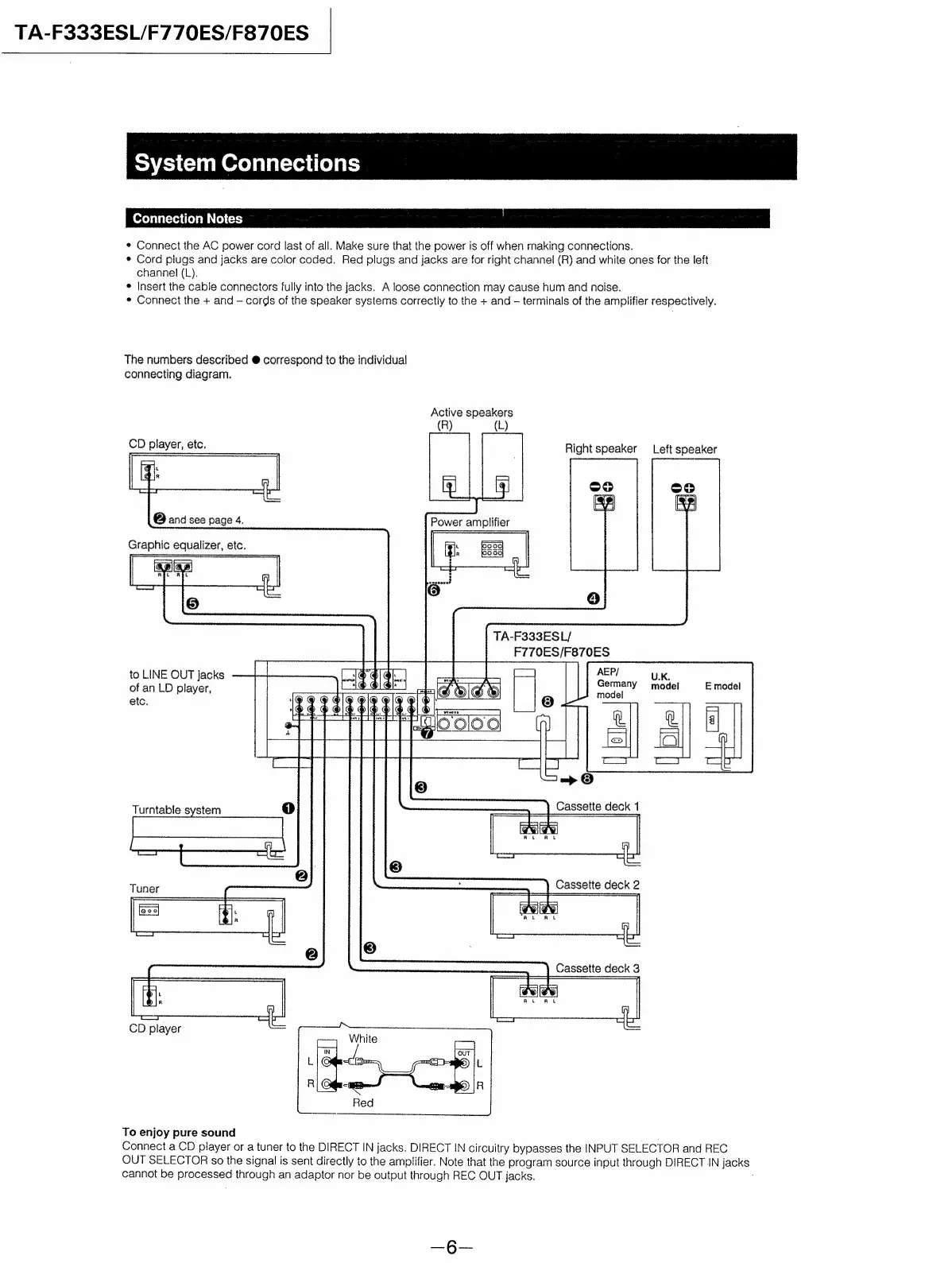

TA-F333ESL/F770ES/F870ES
System
Connections
Connection
Notes
__
*
Connect
the
AC
power
cord
last
of
all.
Make
sure
that
the
power
is
off
when
making
connections.
*
Cord
plugs
and
jacks
are
color
coded.
Red
plugs
and
jacks
are
for
right
channel
(R)
and
white
ones
for
the
left
channel
(L).
*
Insert
the
cable
connectors
fully
into
the
jacks.
A
loose
connection
may
cause
hum
and
noise.
¢
Connect
the
+
and
-
cords
of
the
speaker
systems
correctly
to
the
+
and
terminals
of
the
amplifier
respectively.
The
numbers
described
@
correspond
to
the
individual
connecting
diagram.
Active
speakers
CD
player,
etc.
Right
speaker
Left
speaker
Ra
Rae
9
|
cl
we
o_o
@
and
see
page
4.
Power
amplifier
Graphic
equalizer,
etc.
TA-F333ESL/
F770ES/F870ES
to
LINE
OUT
jacks
ms
AK.
of
an
LD
player,
atasie
model
E
model
etc.
Turntable
system
oO
_}
Cassette
deck
1
ar
aan
|
con
f
Tuner
©
Cassette
deck
2
ak
oles!
i
|
Heide
@
Cassette
deck
3
H
»)
ry
7
CD
player
To
enjoy
pure
sound
Connect
a
CD
player
or
a
tuner
to
the
DIRECT
IN
jacks.
DIRECT
IN
circuitry
bypasses
the
INPUT
SELECTOR
and
REC
OUT
SELECTOR
so
the
signal
is
sent
directly
to
the
amplifier.
Note
that
the
program
source
input
through
DIRECT
IN
jacks
cannot
be
processed
through
an
adaptor
nor
be
output
through
REC
OUT
jacks.
