Sony TA-F501ES User Manual

6
GB

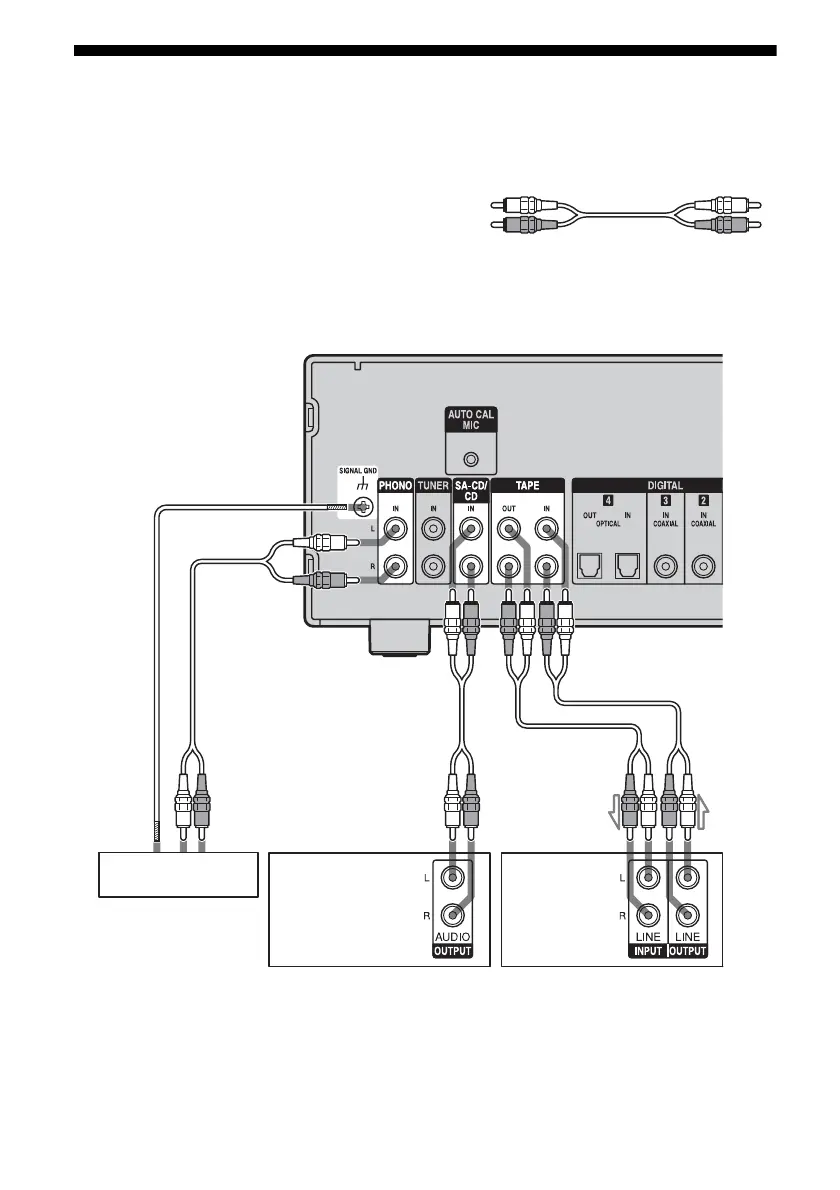

Connecting components with analog audio input/
output jacks
You can connect a component with analog
audio jacks, such as a Super Audio CD player
or CD player, etc. to this amplifier.
Use an audio cord (not supplied) to connect a
component to the analog audio jacks.
Connect the white plug to the L jack and the
red plug to the R jack.
Audio cord (not supplied)
Note
If your turntable has a ground (earth) wire, connect
it to the (U) SIGNAL GND terminal to avoid a
humming noise.
Whit
e
(L)
Red
(R)
Tur nta ble
Super Audio CD
player,
CD player,
VCR
Tape deck

Sony TA-F501ES Specifications

General

Type	Integrated Amplifier
Power Output	80W per channel into 8Ω
Total Harmonic Distortion (THD)	0.008%
Total harmonic distortion	0.008%
Damping factor	100
Frequency Response	10 Hz - 100 kHz
Inputs	1 x Phono
Outputs	tape1, tape2
Input sensitivity	2.5mV (Phono)
Signal to noise ratio	100 dB
Output	Speaker Terminals
Speaker load impedance	4Ω - 16Ω
