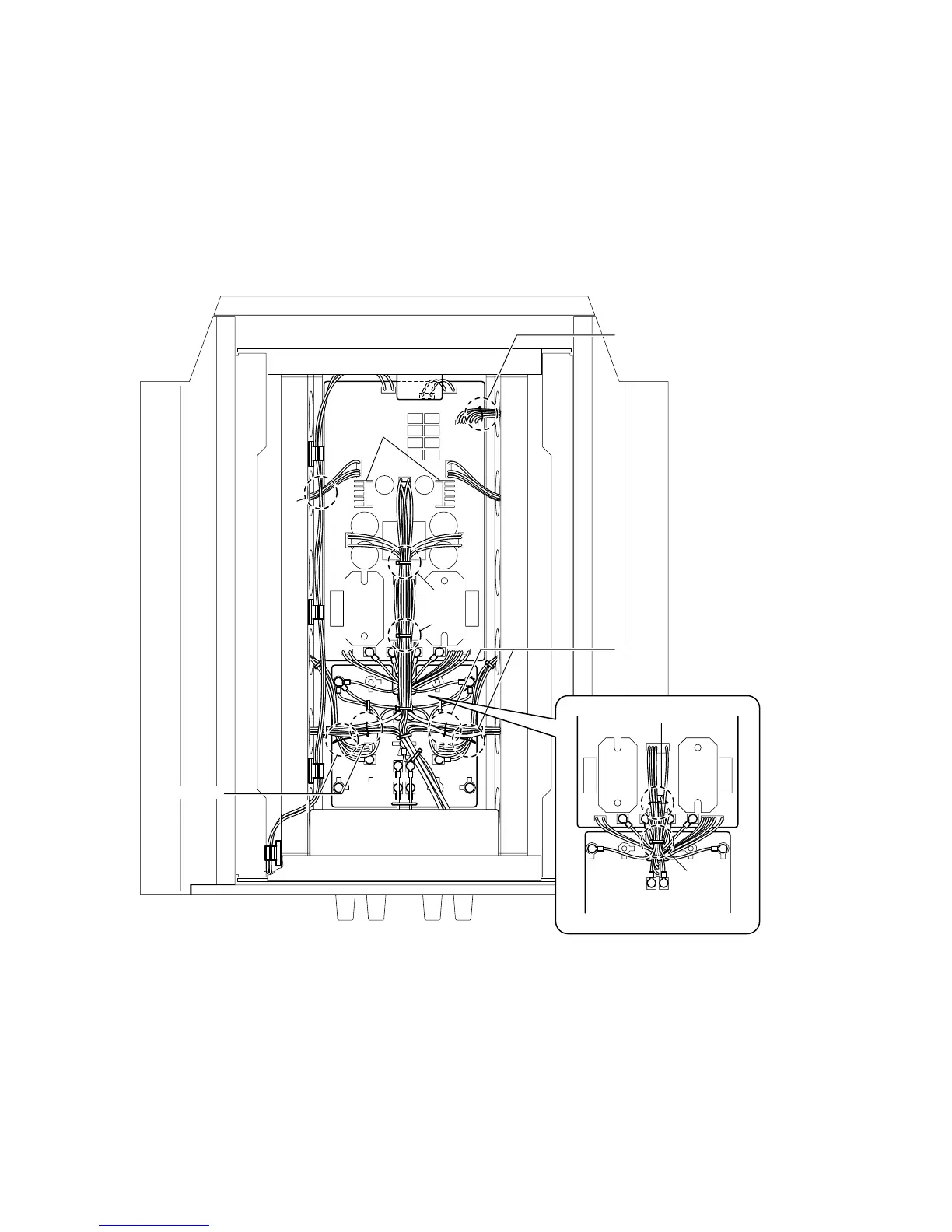

• NOTE ON ARRANGING WIRES
As how the wires in this unit are drawn affect the sound quality,
note down the positions of wires before beginning servicing.
After repairs, arrange the wires as follows.
A : After binding wires, push down.
B : Bind avoiding touching the heatsink.
C : Bind avoiding touching the wires below (binder A).
D : Arrange so that the wires from CN802 pass below the wires
from CN2.
INPUT board
AC/PS board
CN802
CN2
PS B
board
A
B
C
D
Heatsink
Lead pin
Lead pin
Lead pin
Lead pin
