16 16
5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

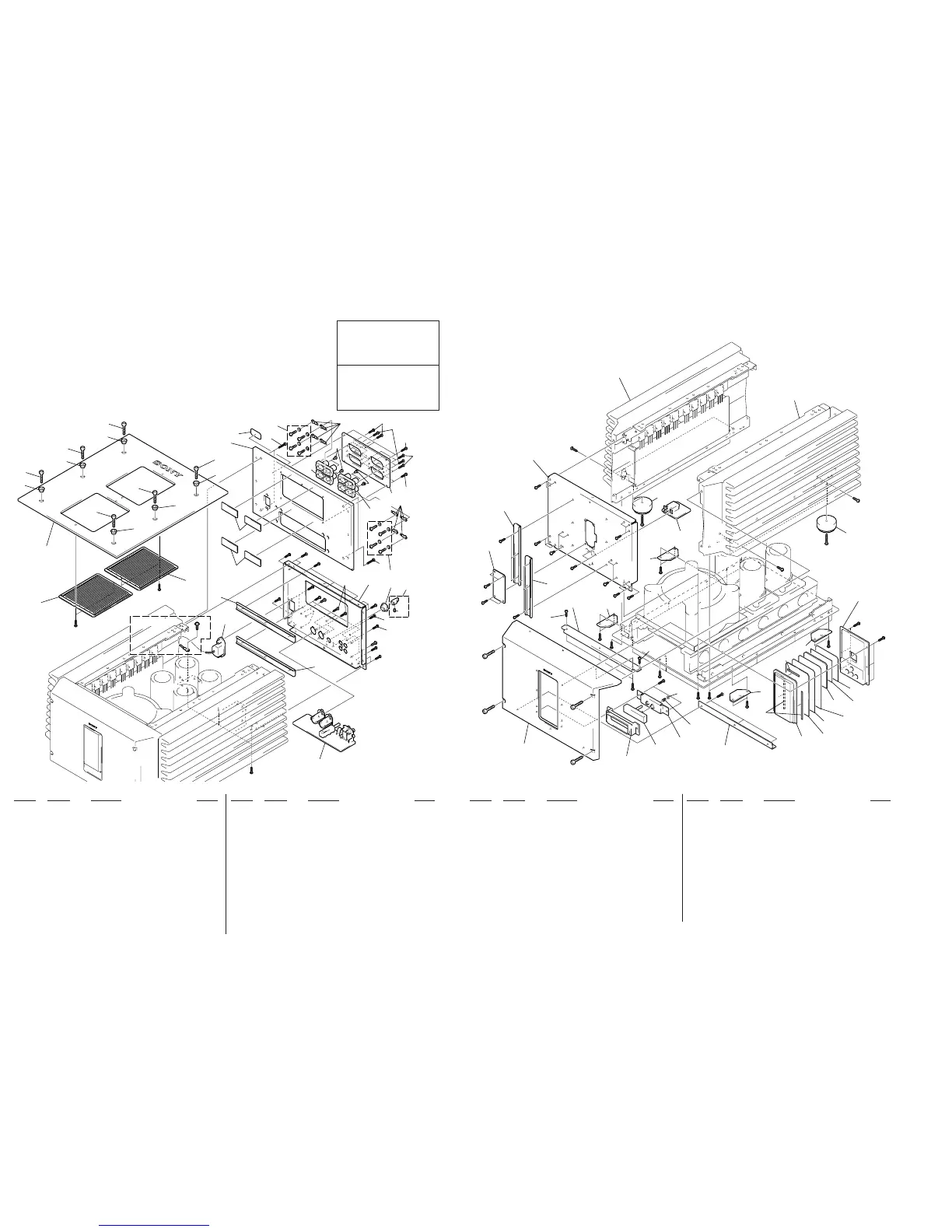

SECTION 5
EXPLODED VIEWS
5-1. TOP AND BACK PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
12 4-219-878-01 ESCUTCHEON (KNOB)
13 4-974-510-01 SCREW (+BV 3X8 CU)
14 4-911-049-21 SCREW (3X8)
15 3-701-505-00 SET SCREW, DOUBLE POINT 3X3
16 4-219-097-01 BOLT (M4X12), 6 SQUARE HOLE
17 3-696-090-11 RIVET, NYLON
* 18 3-703-044-11 LABEL, CAUTION (US,CND)
CNJ1 1-580-375-41 INLET 3P
TB351 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND)
TB351 1-694-541-21 TERMINAL BOARD (SP)(US,CND)
TB451 1-694-541-11 TERMINAL BOARD (SP)(EXCEPT US,CND)
TB451 1-694-541-21 TERMINAL BOARD (SP)(US,CND)
1 4-217-753-01 PANEL, TOP
2 4-935-228-11 GRILLE (A)
3 3-703-685-41 SCREW (+BV 3X8)
4 4-219-096-01 BOLT (M5X16), 6 SQUARE HOLE
5 1-673-331-11 INPUT BOARD
6 4-987-527-01 KNOB (VOL)
7 4-217-756-11 PANEL (C), BACK
8 4-217-757-11 PANEL (A), BACK (US,CND)
8 4-217-757-22 PANEL (A), BACK (EXCEPT US,CND)
9 4-218-397-11 BRACKET (SPEAKER T)(EXCEPT US,CND)
9 4-218-397-21 BRACKET (SPEAKER T)(US,CND)
10 4-217-770-01 REINFORCEMENT (R)
11 4-217-765-01 ESCUTCHEON
62 4-221-068-01 PLATE (SPACER), INDICATION
63 4-218-441-01 PLATE (FILTER 2), INDICATION (MILKY WHITE)
64 4-217-779-01 PLATE (BASE), INDICATION
65 1-673-334-11 LED BOARD
66 4-217-769-01 REINFORCEMENT (F)
67 4-217-755-01 PANEL, SUB
68 1-673-336-11 AC-SW BOARD
69 4-218-443-01 BRACKET (FOOT)
70 X-4942-178-1 FOOT ASSY
71 4-911-049-21 SCREW (3X8)
72 4-222-564-01 PLATE (FILTER C), INDICATION (ORANGE)
51 4-217-750-01 PANEL, FRONT
52 4-217-782-01 ESCUTCHEON (POWER BUTTON)
53 X-4951-184-1 BUTTON ASSY, POWER
54 X-4951-185-1 BRACKET (POWER BUTTON) ASSY
* 55 4-880-426-00 SPRING, COMPRESSION
56 4-862-338-00 RING, STOPPER
57 4-217-777-01 PLATE (FRONT), INDICATION
58 4-217-771-01 PLATE (HALF MIRROR),INDICATION
59 4-217-772-01 PLATE (MASK), INDICATION (BLACK)
60 4-217-778-01 PLATE (FILTER), INDICATION (MILKY WHITE)
61 4-218-442-01 PLATE (BASE 2), INDICATION (WHITE)
NOTE:
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Cabinets color
The mechanical parts with no reference number in
the exploded views are not supplied.
Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Abbreviation
CND : Canadian model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
1
2
2
#4
not supplied
not supplied
not supplied
not supplied
TB351
CNJ1
(US,CND)
TB451
Supplied with TB451
Supplied with TB351
#3
#3
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
11
11
11
11
11
16
11
16
16
16
16
16
5
12
3
10
10
8
18
4
7
6
15
3
13
9
14
14
14
(US,CND)
17
17
13
13
4
#4
#1
#2
#2
#3
#3
#6
#9
#6
HEATSINK (R) BLOCK
HEATSINK (L) BLOCK
#6
#6
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#5
#2
51
#2
#6
not supplied
not supplied
52
57
69
69
62
62
58
59
60
53
54
55
56
71
65
66
66
71
69
69
68
70
67
61
63
64
72
70
#9
