3
SECTION 1
SERVICE NOTE
EPT506
FPT558
CN554 (Red) 2P
CN654 (Red) 4P
CN201 (Red) 4P
CN751 (Red) 4P
CN852 (Red) 4P
CN702 (Black) 4P
CN701 (White) 4P
CN604 (White) 4P
• SECURING THE GRILL (A)
When securing the grill (A) to the top panel, use the Sony bond
SC608LV (7-432-912-48). (
)
Top panel (Buttom side)

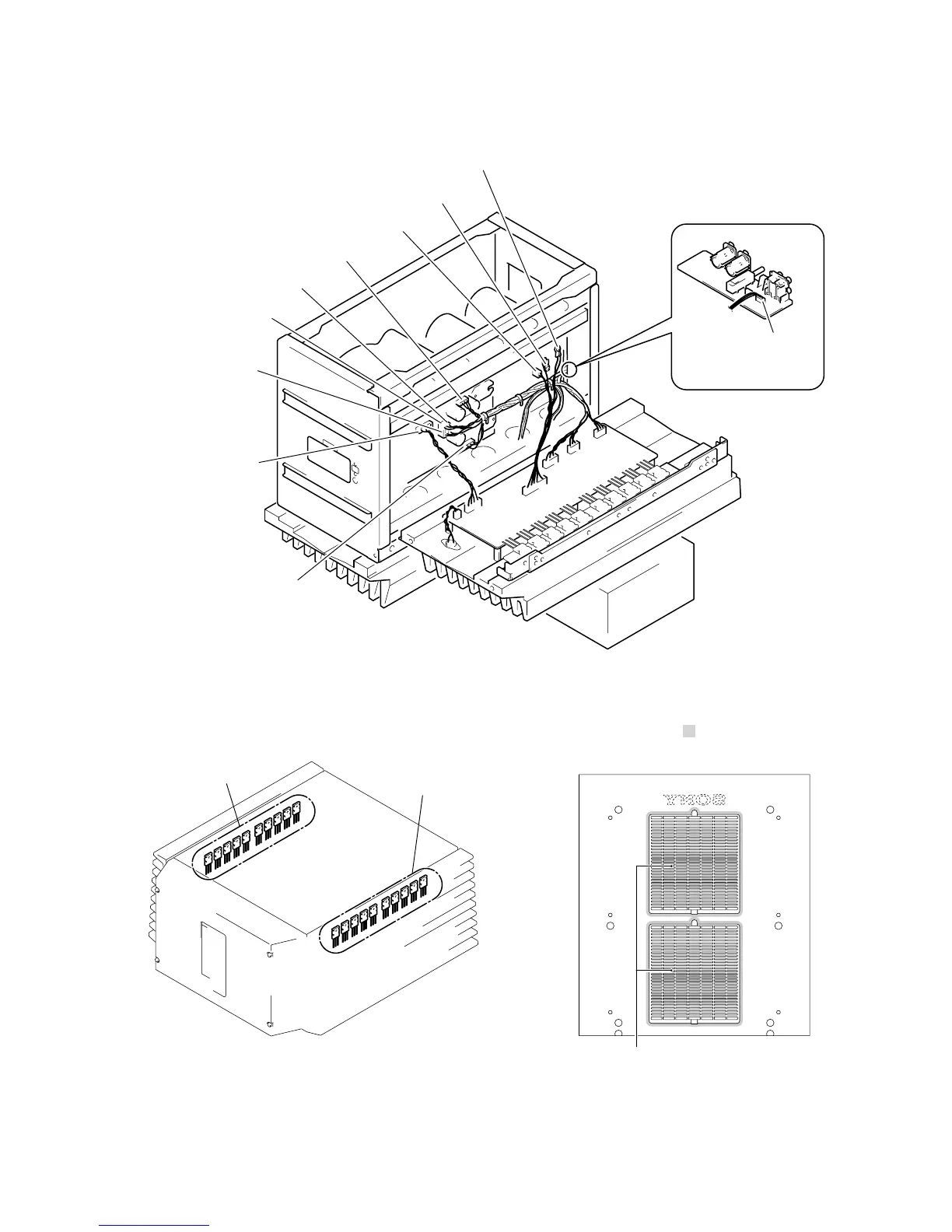

• SERVICE POSITION
When performing servicing, use a table about 15 cm as shown in
the figure.
• REPLACING THE POWER TRANSISTOR
When replacing the power transistors (Q304 to Q313: L-ch, Q404
to Q413: R-ch), replace all ten together.
L ch : Q304 to Q313
R ch : Q404 to Q413
Grille (A)
To Next Page
