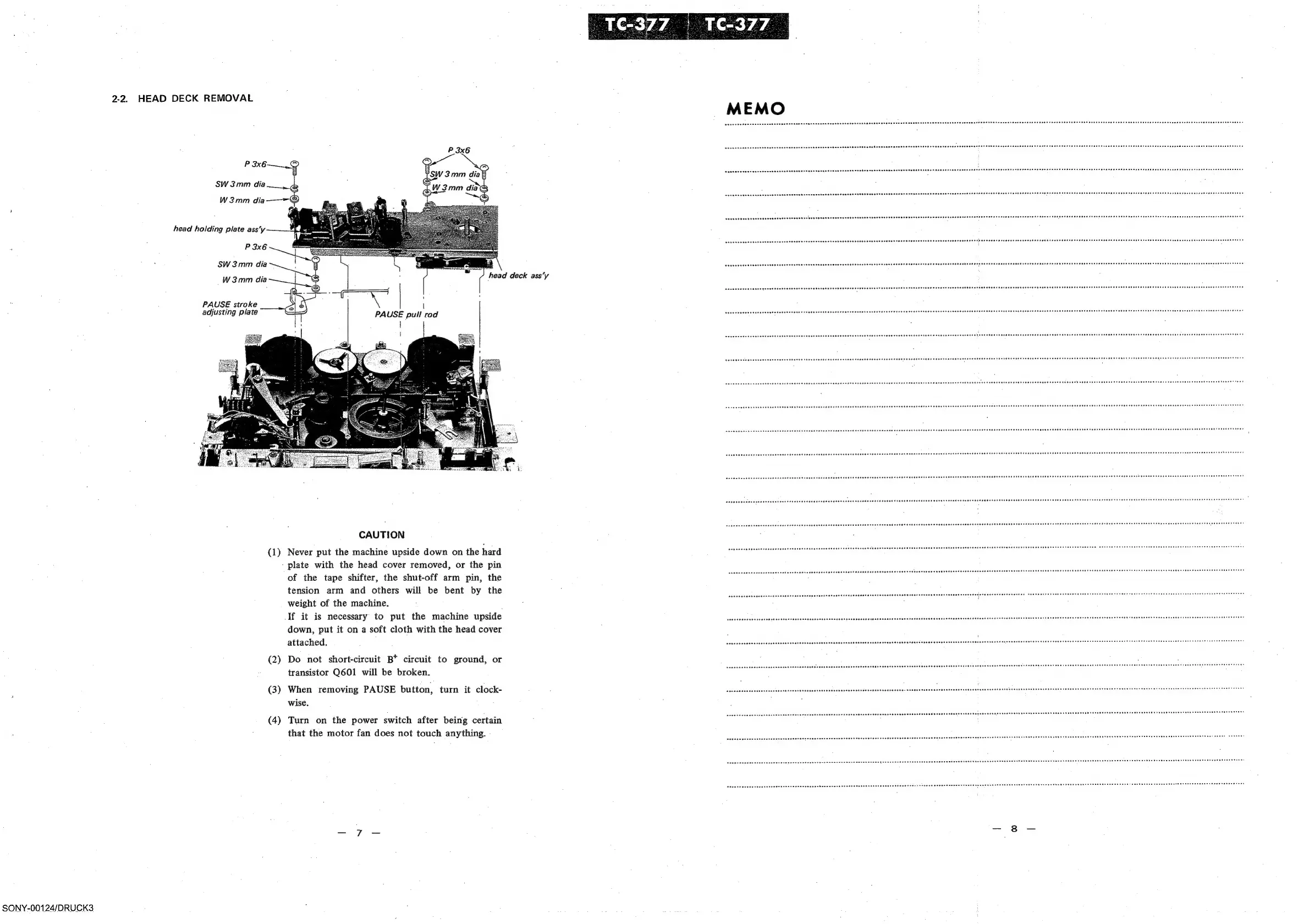

2-2. HEAD DECK REMOVAL
P 3x6—_,¢
SW 3mm dia___,._,
W3mm dia——>"
head holding plate ass’y
P 3x6
SW 3mm dia
W3mm dia
PAUSE stroke
adjusting plate
CAUTION
(1) Never put the machine upside down on the hard
‘plate with the head cover removed, or the pin
of the tape shifter, the shut-off arm pin, the
tension arm and others will be bent by the
weight of the machine.
If it is necessary to put the machine upside
down, put it on a soft cloth with the head cover
attached.
(2) Do not short-circuit B* circuit to ground, or
transistor Q601 will be broken.
(3) When removing PAUSE button, turn it clock-
wise.
(4) Turn on the power switch after being certain
that the motor fan does not touch anything.
7 | head deck ass’y
