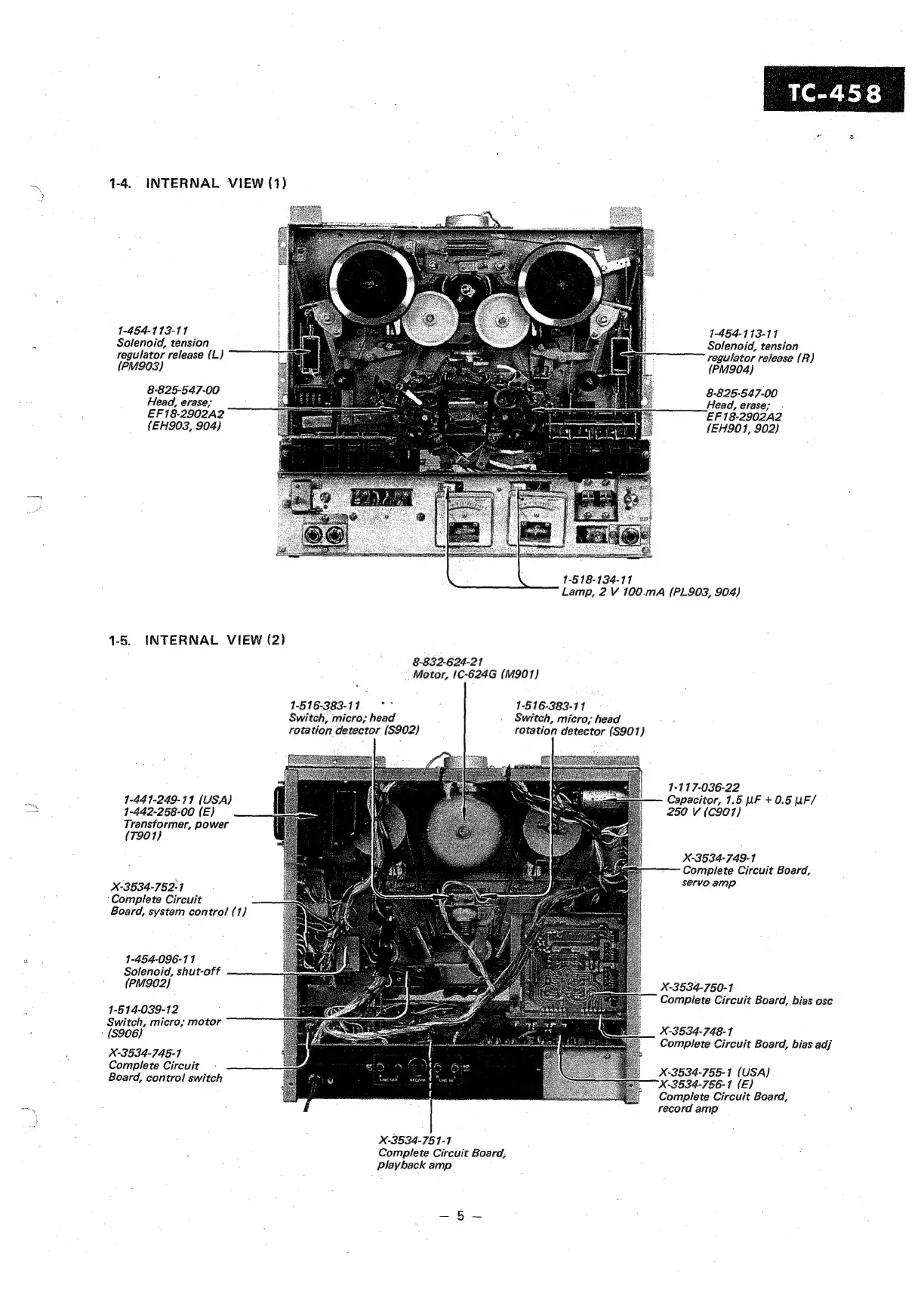

1-4. INTERNAL VIEW (1)
1-454-113-17
Solenoid, tension
regulator release (L)
(PM903)
8-825-547-00
Head, erase;
EF18-2902A2
(EH903, 904)
1-5. INTERNAL VIEW (2)
1-441-249-14 {USA}
1-442-258-00 (E)
Transformer, power
(7901)
X-3534-752-1
‘Complete Circuit
Board, system control (17)
1-454-096-1171
Solenoid, shut-off
(PM902}
1-514-039-12
Switch, micro; motor
X-3534-745-1
Complete Circuit
Board, control switch
1-518-134-17
1-454-113-11
Solenoid, tension
regulator release (R)
(PM904)
8-825-547-00
Head, erase; .
EF18-2902A2
(EH901, 902)
Lamp, 2 V 100.mA (PL903, 904)
8-832-624-21
Motor, 1C-624G (M901)
1-516-383-11
Switch, micro; head
rotation
detector
(S901)
1-516-383-11
Switch, ‘micro; head
rotation detector (S902)
X-3534-751-1
Complete Circuit Board,
Playback amp
1-117-036-22
Capacitor, 1.5 UF + 0.5 WF/
250 V (C907)
X-3534-749-1
Complete Circuit Board,
servo amp
X-3534-750-1
Complete Circuit Board, bias ose
X-3534-748-7
Complete Circuit Board, bias adj
X-3534-755-1 (USA)
X-3534-756-1 (E)}
Complete Circuit Board,
record amp
