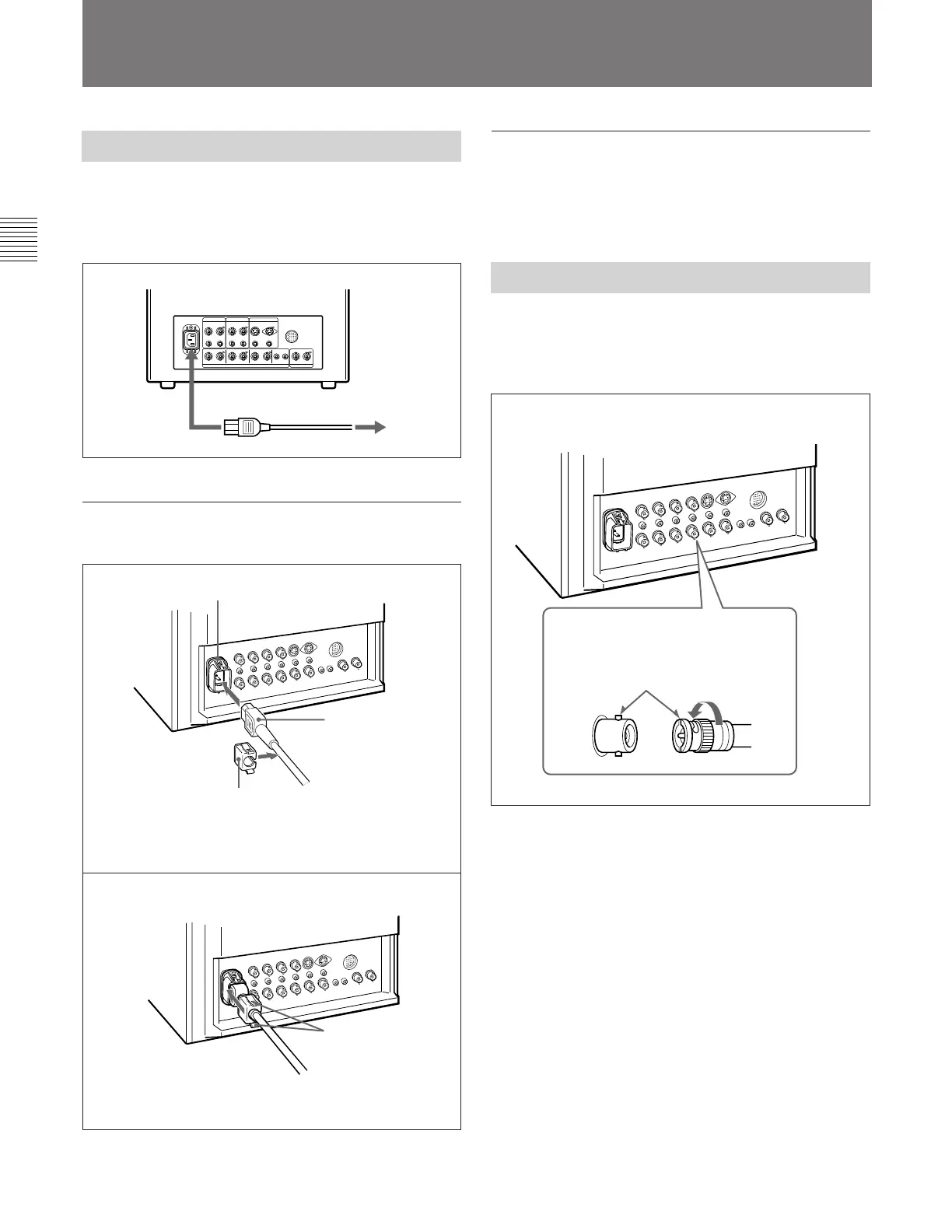

How to Connect the AC Power Cord
Connect the AC power cord (supplied) to the AC IN
socket and to a wall outlet.
To remove the AC power cord
Pull out the AC plug holder while pressing the lock
levers.
To connect an AC power cord securely
with an AC plug holder
Plug the power cord into the AC IN socket. Then, attach
the AC plug holder (supplied) on top of the AC power
cord.
AC plug holder
AC power plug
AC IN socket
1
2
Slide the AC plug holder over the cord until it locks.
Lock levers
How to Connect a Cable to a BNC Connector
Connect a coaxial cable with the BNC plugs to the
BNC connectors on the rear panel as illustrated below.
to AC IN
to a wall outlet
Connections
Insert the BNC plug into the connector
on the rear panel, matching the slit and
pin, and turn the BNC plug clockwise to
secure the connection.
