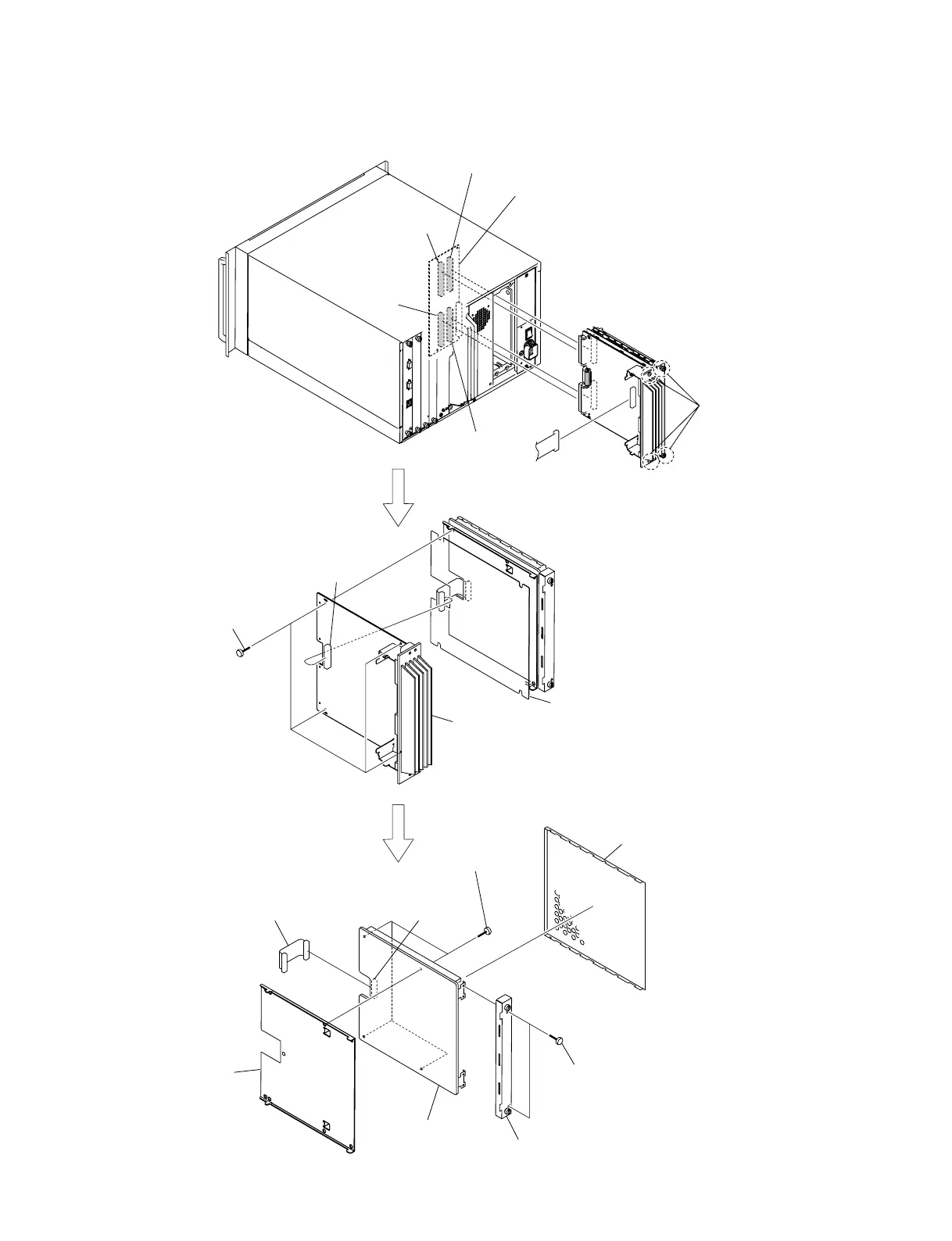

1-3-5. EA Board and E Board
CN1
CN101
CN103
CN102
CN104
TA board
CN900
CN200
2 Four screws
(+PS 3 x 6)
9 Four step screws
(M3 x 4)
5 Two screws
(+BVTT 3 x 8)
7 Cover
0 PWB shield (E) assembly
8 Connector assembly
(20P)
3
E board
!-
EA board
6 Blank panel ( EA )
assembly
4 Insulating plate (E)
1 Loosen
four screws.
