Sony Trinitron BVM-A14F5U Service Manual

1-13
BVM-A14

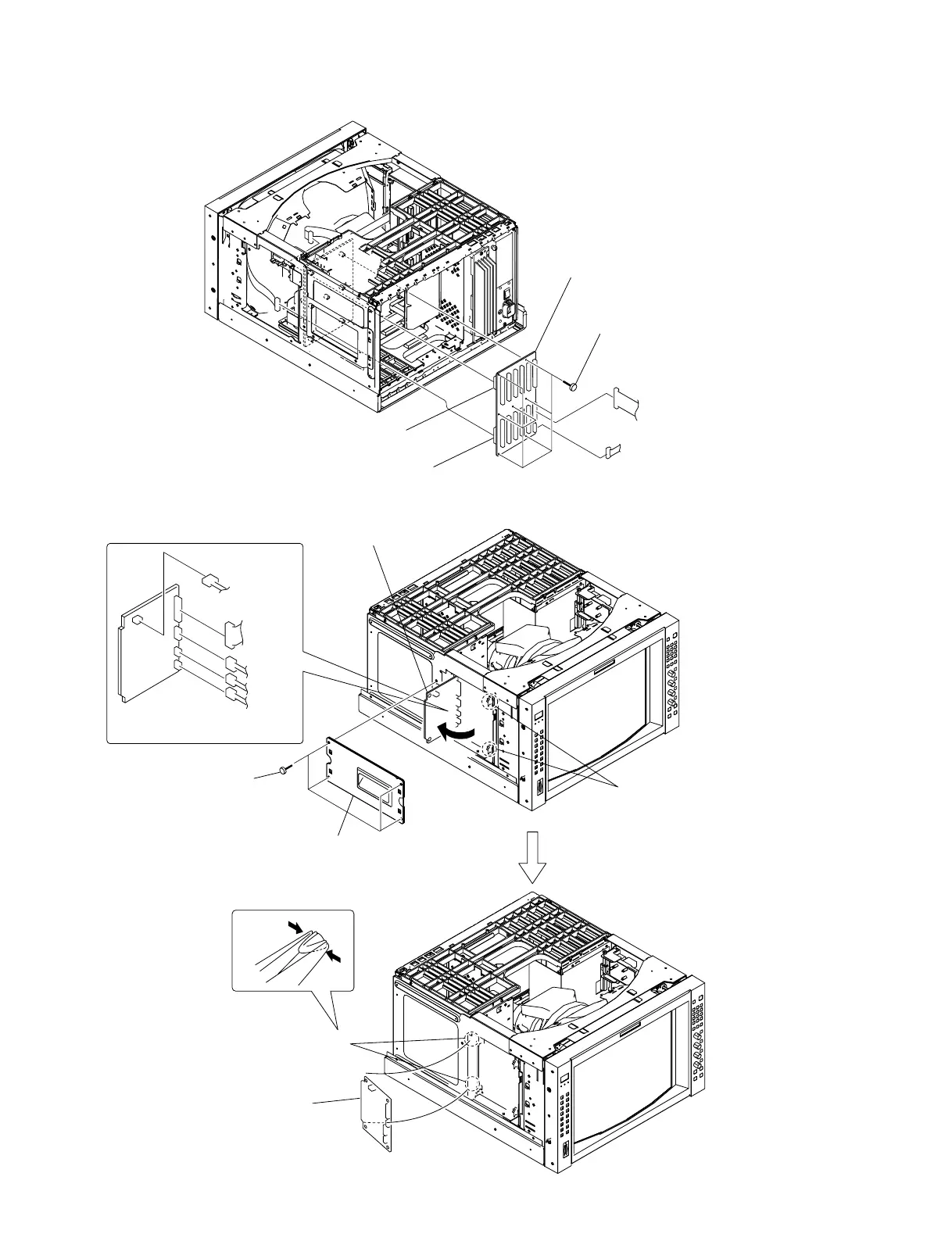

1-3-12. TB Board
1-3-13. PA Board
CN214
CN203
CN204
CN215
1 Seven screws
(+PSW 3 x 8)
2 TB board
1 Four screws
(+P 4 x 8)
2 Handle section (Left)
CN105
CN102
CN103
CN104
CN101
4 Open the PA board in the
direction of the arrow.
6 PA board
5 Two claws
3 Two claws

Sony Trinitron BVM-A14F5U Specifications

General

Screen Size	14 inches
Aspect Ratio	4:3
Display Type	CRT
Technology	Trinitron
Input Connectors	BNC, SDI
Scan Modes	480i, 576i, 480p, 576p, 1080i, 720p
Resolution (TVL)	800 TV lines
