— 17 —
CPD-E210

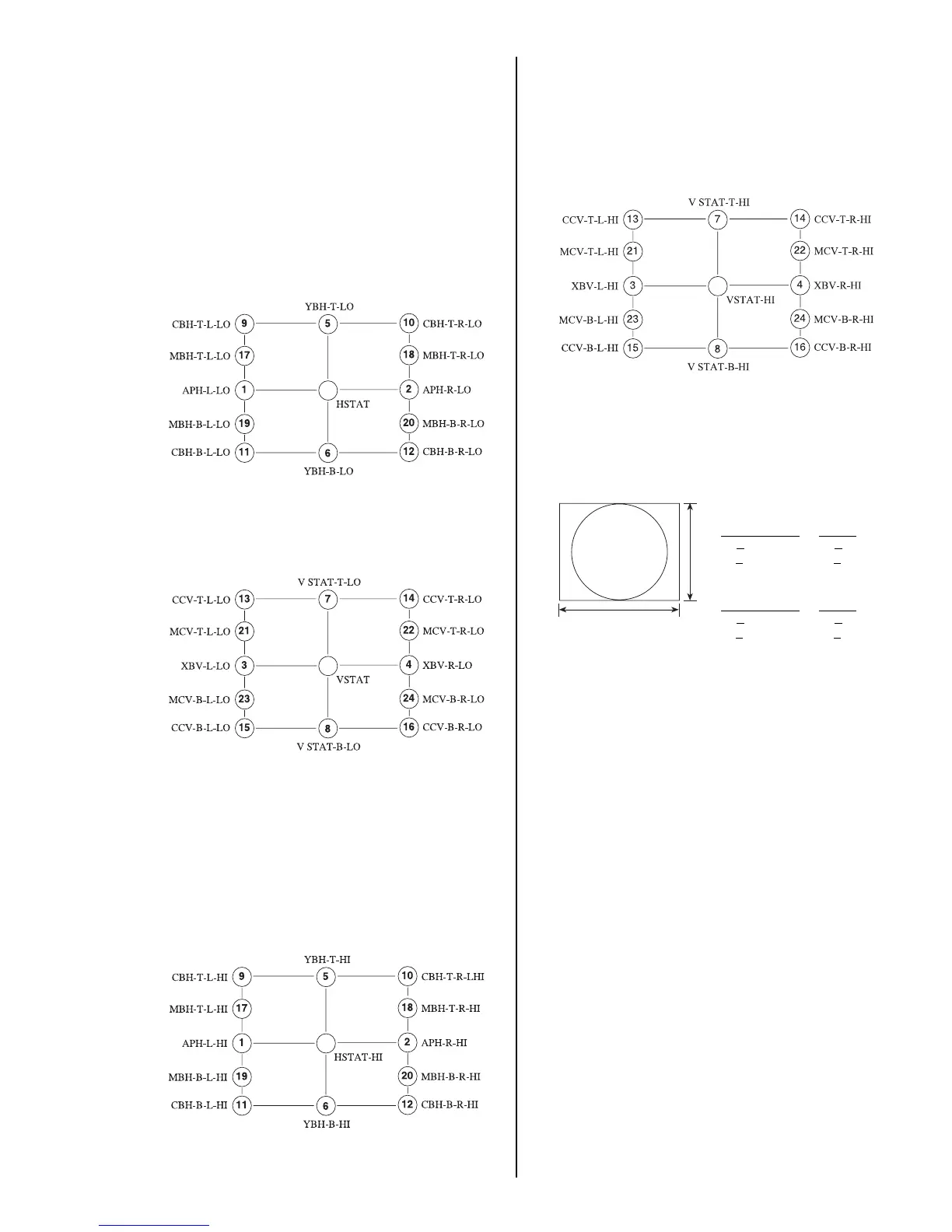

4-7. DIGITAL CONVERGENCE ADJUSTMENT
Convergence (Low) Mode
1. Adjust the H.STAT and V.STAT with "HSTAT" and
"VSTAT".
A. Horizontal Convergence
Adjust each misconvergence point in sequence.
B. Vertical Convergence
Adjust each misconvergence point in sequence.
2. Repeat the procedure of A and B so that the convergence
of the entire screen is within the specification.
Convergence (High) Mode
1. Adjust the H.STAT and V.STAT with "HSTAT-HI" and
"VSTAT-HI".
A. Horizontal Convergence
Adjust each misconvergence point in sequence.
B. Vertical Convergence
Adjust each misconvergence point in sequence.
2. Repeat the procedure of A and B so that the convergence
of the entire screen is within the specification.
4-8. CONVERGENCE SPECIFICATION
B
A
312 mm
234 mm
A Zone:
Primary Mode Others
H:
<
0.25mm H:
<
0.3mm
V:
<
0.25mm V:
<
0.3mm
B Zone:
Primary Mode Others
H:
<
0.3mm H:
<
0.4mm
V:
<
0.3mm V:
<
0.4mm
