Sony TRINITRON KP-43HT20C User Manual

– 2 –
KP-HR432K90/HR532K90/HR532N90/HW572K90

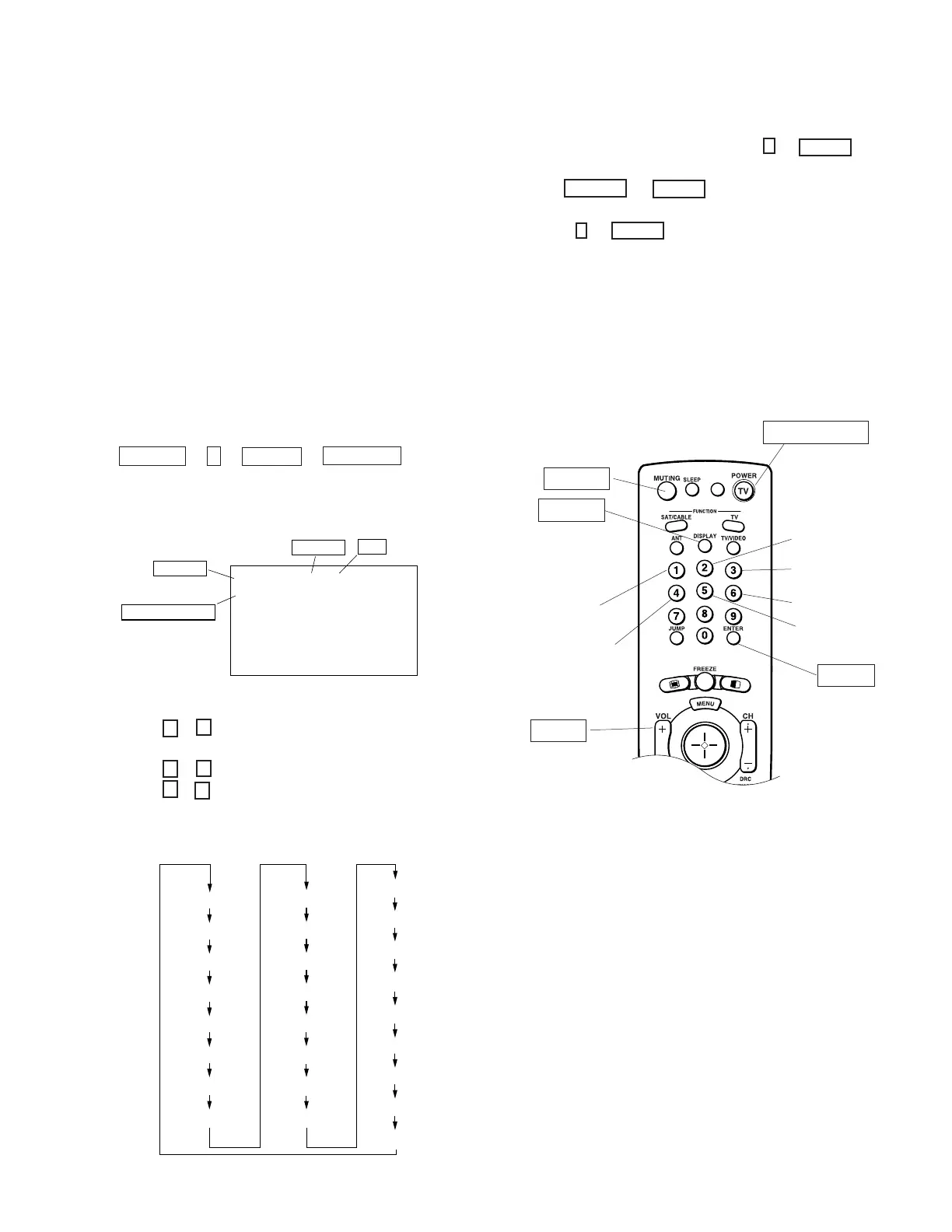

RM-Y909KRM-Y908RM-Y909K RM-Y909K
Specifications
Projection System 3 picture tubes, 3 lenses, horizontal in-line system
Picture Tube 7-inch high-brightness monochrome tubes (6.3 raster size), with optical
coupling and liquid cooling system
Projection Lenses High performance, large
diameter hybrid lens F1.1
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Screen Size (measured diagonally) 43 inches (KP-HR432N90)
53 inches (KP-HR532K90/HR532N90)
57 inches (KP-HW572K90)
Channel Coverage
VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 110 V AC, 60 Hz (KP-HR532N90)
220 V AC, 60 Hz (KP-HR432K90/HR532K90/HW572K90)
Number of Inputs/Outputs
Video (IN) 4 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 500 mVrms (100% modulation)
Impedance: 47 kiloohms
AUDIO (VAR/FIX) 1 500 mVrms at the maximum volume setting
(Variable)
500 mVrms (Fixed)
Impedance (output): 2 kiloohms
TV Out 1 Video: 1 Vp-p 75 ohms unbalanced, Sync
negative
Audio: 500 mVrms (100% modulation)
Impedance (output): 1 kiloohms
CONTROL S (IN/OUT) 1 Minijacks
Component Video Input 2 (Y, P
B
, P
R
) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
RF Inputs 2
Converter 1
Speaker Output 20 W x 2
Dimensions (W x H x D) 966 x 1,072 x 570 mm (KP-HR432K90)
1,180 x 1,430 x 626 mm (KP-HR532K90)
1,180 x 1,417 x 632 mm (KP-HR532N90)
1,326 x 1,377 x 690 mm (KP-HW572K90)
Mass 56 kg (KP-HR432K90)
71 kg (KP-HR532K90)
71.2 kg (KP-HR532N90)
89 kg (KP-HW572K90)
Power Consumption
In Use 280 W (KP-HR532N90)
230 W (KP-HR432K90/HR532K90/HW572K90)
In Standby 1 W (KP-HR532N90)
1.2 W (KP-HR432K90/HR532K90/HW572K90)
Supplied Accessories
Remote Control RM-Y908 (KP-HR532N90)
RM-Y909K (KP-HR432K90/HR532K90/HW572K90)
AA (R6) Batteries 2 supplied for remote control
Design and specifications are subject to change without notice.
