Sony Trinitron KV-24LS35B - 2 Disassembly; Rear Cover Removal; Chassis Removal; A Board PWB Removal

12
2-4. Service Position2-3. A Board PWB Removal

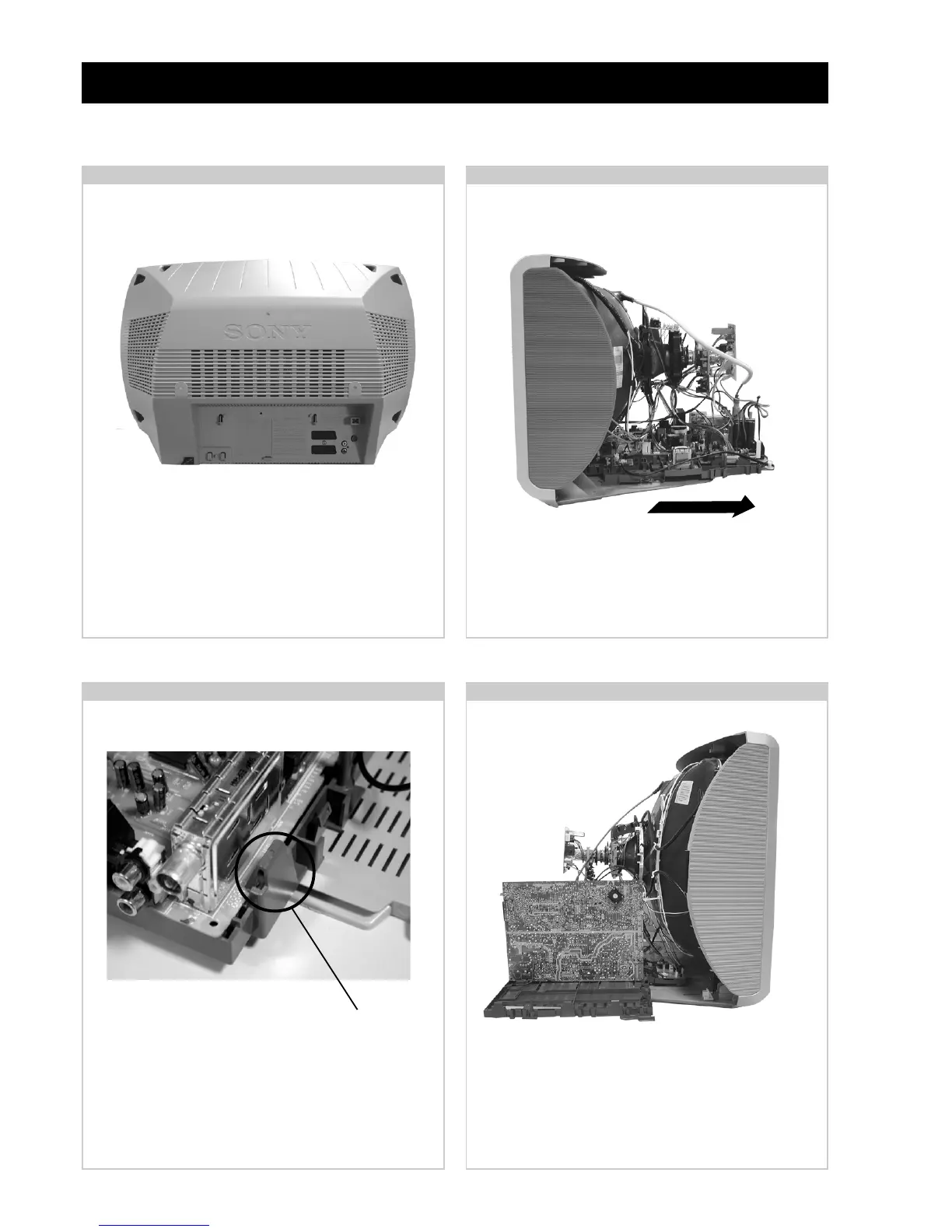

SECTION 2 DISASSEMBLY
2-1. Rear Cover Removal
Release the mains power cable from its securing posts.
Remove the rear cover fixing screws indicated. Pull the rear
cover away from the front beznet.
2-2. Chassis Removal
To remove lift the main bracket rear slightly and slide the
chassis away from the beznet. Ensure that the interconnecting
leads are released from their purse locks to prevent damage
being caused.
Place the A Board PWB in the position indicated to carry out
servicing.
Release the 5 securing clips located at the side and front of the
chassis and slide the PWB clear of the bracket.
Clip.
=>
=> <=
<=
=> =>
=>
=>
