Sony Trinitron KV-24LS35B - 6 Exploded Views; Chassis

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

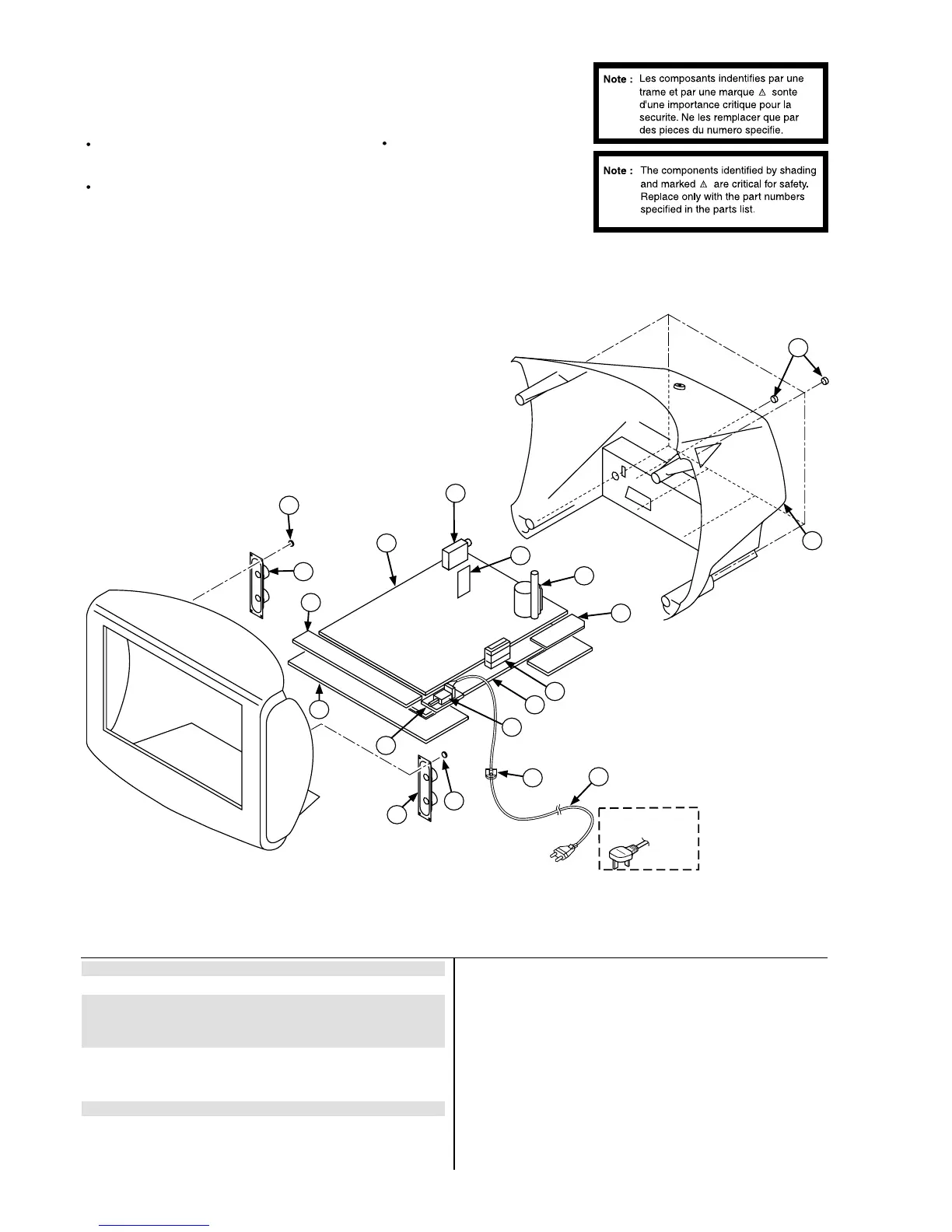

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
46
1 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
2 *4-202-531-01 AC CORD LOCK (SC)
3 £ 1-783-083-11 CORD, POWER (WITH FILTER)
(KV-24LS35B/24LS35E)
£ 1-776-204-12 CORD, POWER (FILTER) (KV-24LS35U)
4 *4-206-048-21 BRACKET, MAIN
5 1-419-893-11 COIL, CHOKE 26MMH
6 *A-1640-434-A D4 BOARD, COMPLETE
7 £ 1-453-372-11 TRANSFORMER ASSY, FLYBACK (NX4521//Z2B14)
8 *A-1642-282-A D2 BOARD, COMPLETE
9 1-693-555-11 TUNER STEREO (KV-24LS35B)
1-693-556-11 TUNER STEREO (KV-24LS35E)
1-693-557-11 TUNER STEREO (KV-24LS35U)
10 *A-1632-943-A A BOARD, COMPLETE (KV-24LS35B)
*A-1632-944-A A BOARD, COMPLETE (KV-24LS35E)
*A-1632-935-A A BOARD, COMPLETE (KV-24LS35U)
11 *A-1646-244-A H5 BOARD, COMPLETE
12 *4-206-154-01 H & F BRACKET
13 *A-1624-105-A F5 BOARD, COMPLETE
14 4-206-064-01 COVER, REAR
15 4-039-358-01 SCREW (4x16), (+) BV TAPPING
16 1-529-408-11 SPEAKER (4.2x24CM)
17 4-384-096-01 SCREW (4x16), BV TAPPING, +P
12
13
2
3
17
16
1
4
7
9
14
11
15
16
17
5
6
8
10
UK Models
only
