— 14 —
KV-27FV16/29FV16/29FV16C/32FS12/32FS16
3 Screws (+BVTP 4x16)
4 Screws
(+BVTP 4x16)
4 Screws
(+BVTP 4x16)
4 Screws (+BVTP 4x16)
Rear Cover

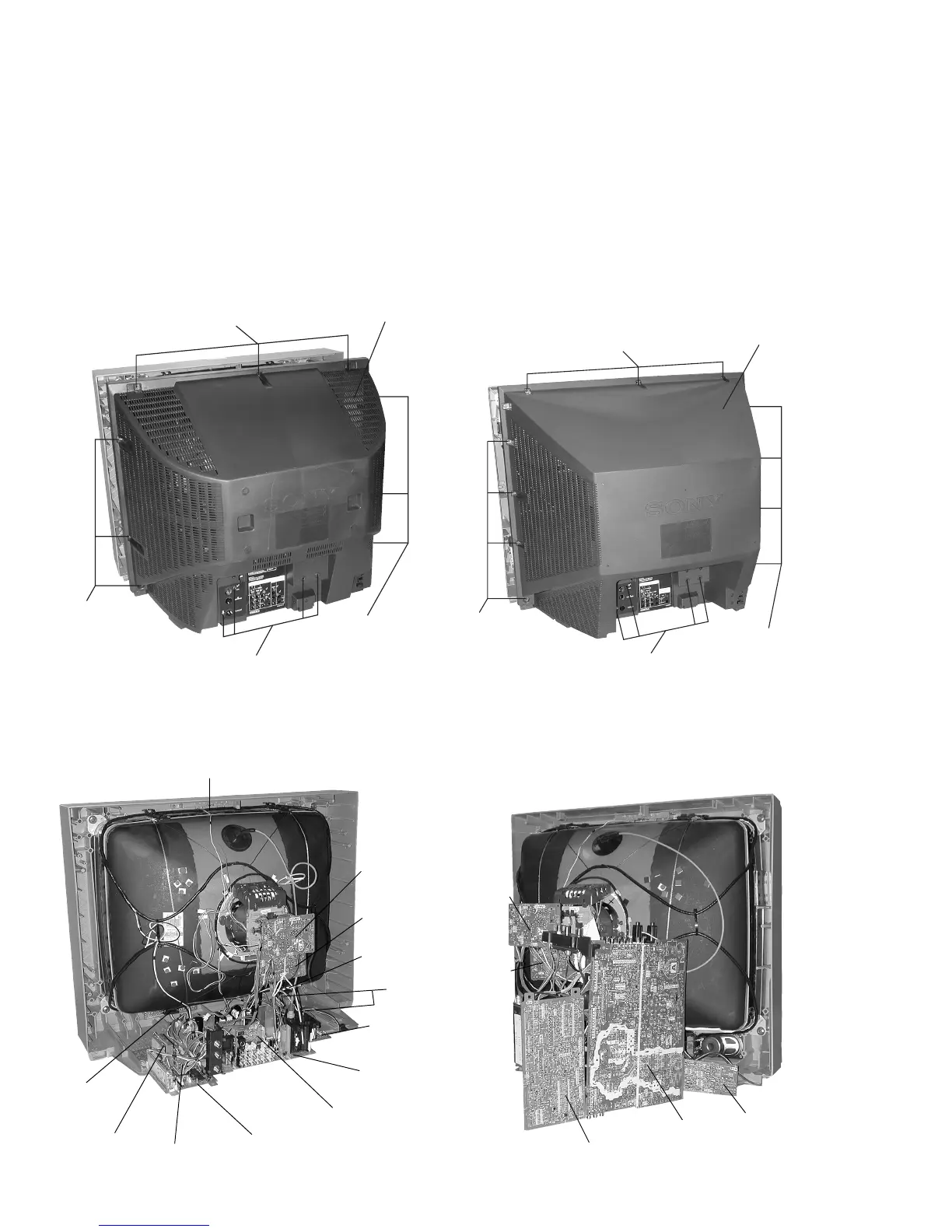

SECTION 2
DISASSEMBLY
2-1. REAR COVER REMOVAL
2-2. CHASSIS ASSEMBLY REMOVAL 2-3. SERVICE POSITION
CA Board
A Board
D Board
VA Board
MA Board
VA Board
CA Board
K Board
A Board
MA Board
Claw
HX Board
P Board
D Board
BC Board
HB Board
HA Board
KV-27FV16/29FV16/29FV16C ONLY
3 Screws (+BVTP 4x16)
3 Screws
(+BVTP 4x16)
3 Screws
(+BVTP 4x16)
4 Screws (+BVTP 4x16)
Rear Cover
KV-32FS12/32FS16 ONLY
