Sony Trinitron KV-27S35 - Connecting Antenna and Cable TV Systems

Getting Started
Although you can use either an indoor or outdoor
antenna with your TV, we recommend that you
connect an outdoor antenna or a cable TV system to get
better picture quality.
How to connect different types of
cables

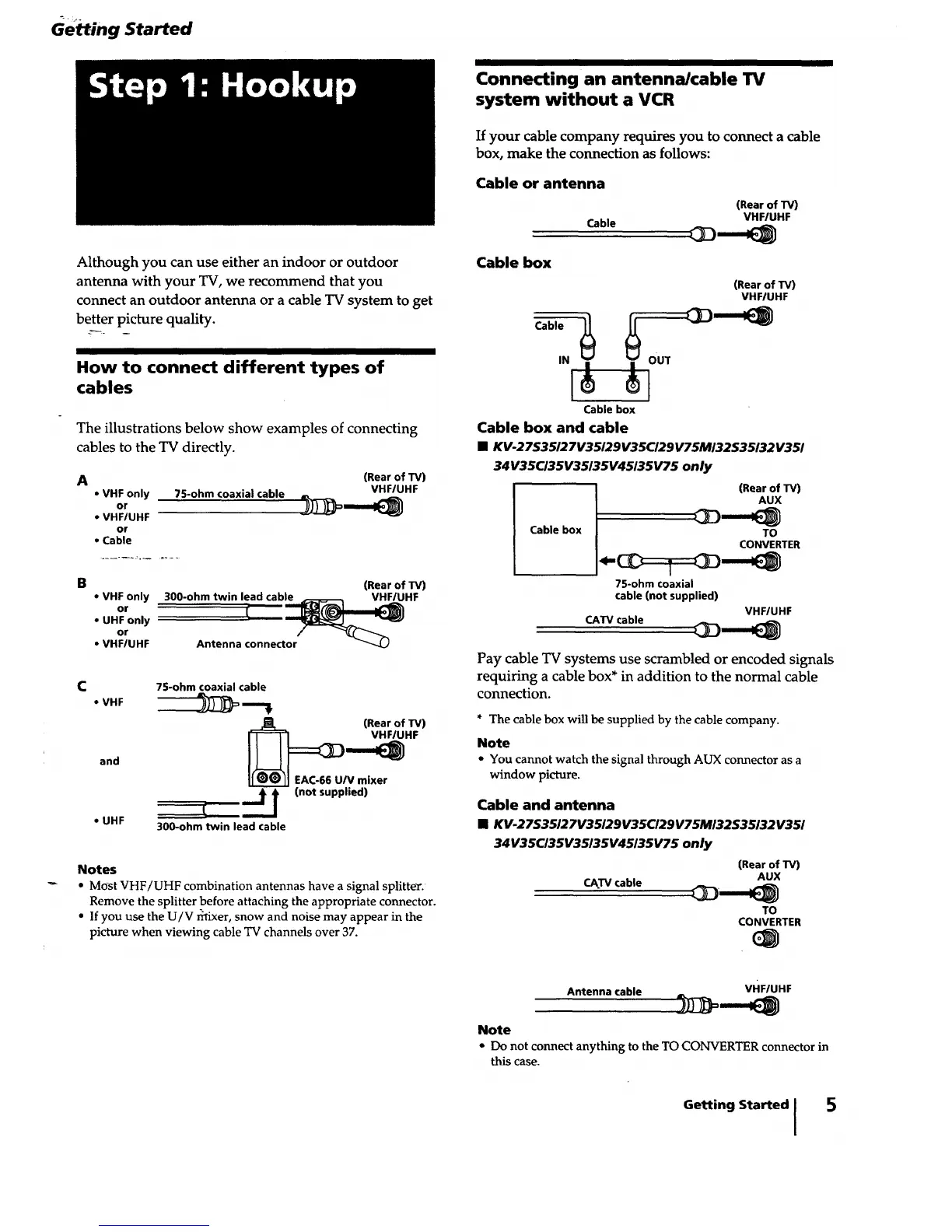

The illustrations below show examples of connecting
cables to the TV directly.
A
• VHF only
or
• VHF/UHF
or
• Cable
75-ohm coaxial cable
(Rear of TV)
VHF/UHF
B
• VHF only
or
• UHF only
or
• VHF/UHF
(Rear of TV)
300-ohm twin lead cable _ VHFIUHF
i .... ctor__
Antenna conne
C
• VHF
and
• UHF
75-ohm coaxial cable
_EAC-66 U/ (Rear of TV)
V mixer
tI (not supplied)
/
300-ohm twin lead cable
Notes
• Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
• If you use the U/V r_ixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
IIIIIII
Connecting an antenna/cable TV
system without a VCR
Ifyour cable company requires you to connect a cable
box, make the connection as follows:
Cable or antenna
Cable
Cable
IN
Cable box
(Rear of TV)
VHFIUHF
(Rear of W)
VHF/UHF
I
Cable box
Cable box and cable
• KV-27S35127V35129V35CI29V75MI32S35132V351
34V35C/35V35/35V45135V75 only
(Rear of TV)
AUX
Cable box TO
CONVERTER
75-ohm coaxial
cable (not supplied)
VHF/UHF
CATV cable _ml _
Pay cable TV systems use scrambled or encoded signals
requiring a cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
• You cannot watch the signal through AUX connector as a
window picture.
Cable and antenna
[] KV.27S35127V35/29V35CI29V75MI32S35/32V351
34V35C/35V35/35V45135V75 only
(Rear of TV)
AUX
CAW cable _,m_
TO
CONVERTER
Antenna cable
vHF/UHF
Note
• Do not connect anything to the TO CONVERTER connector in
this case.
Getting Started [
5
