KV-25C5/29C5

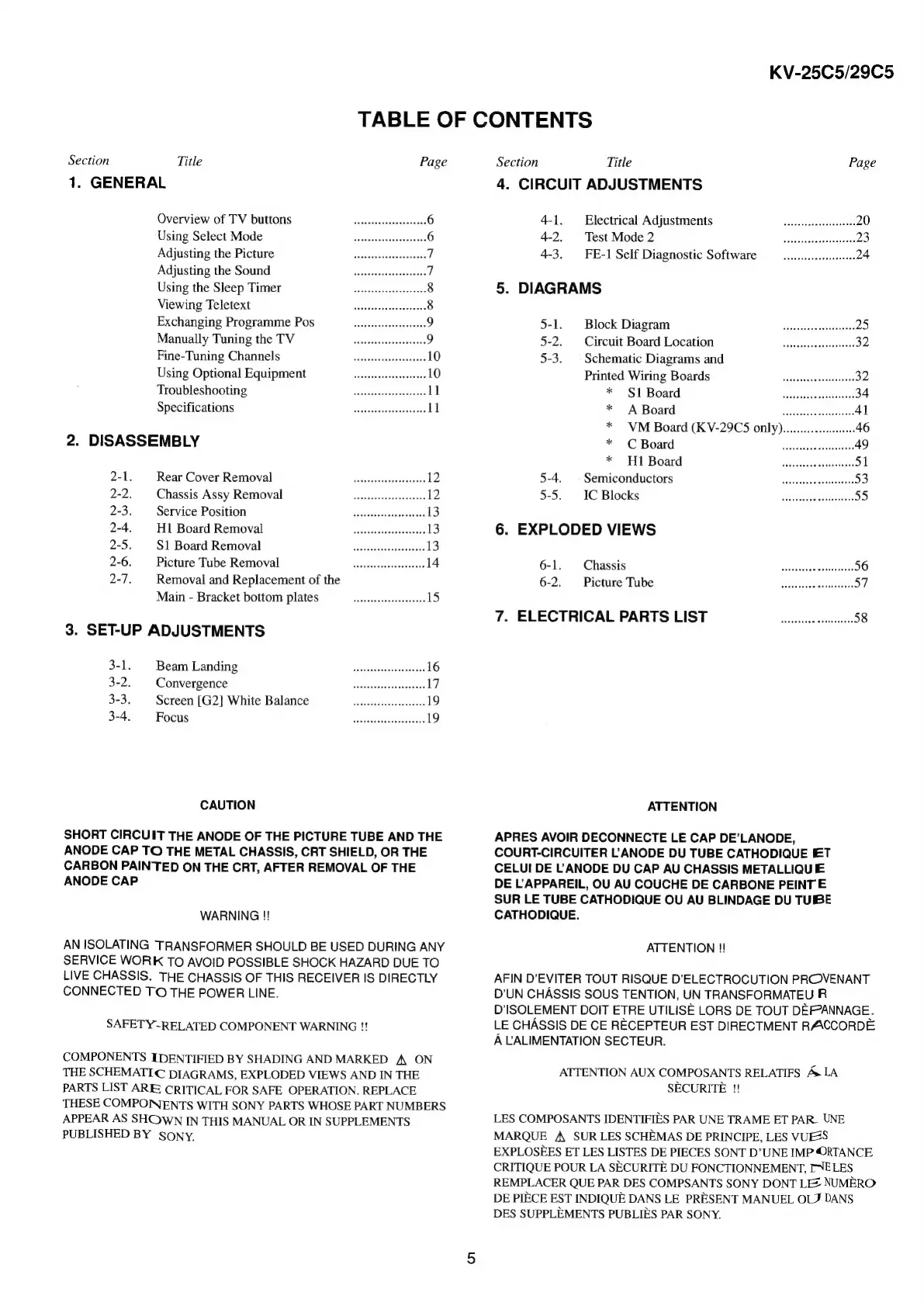

TABLE OF CONTENTS
Section Title Page Section Title Page
1. GENERAL 4. CIRCUIT ADJUSTMENTS
Overview of TV buttons 4-1. Electrical Adjustments
Using Select Mode 4-2. Test Mode 2
Adjusting the Picture 4-3. FE-1 Self Diagnostic Software
Adjusting the Sound
Using the Sleep Timer 5. DIAGRAMS
Viewing Teletext
Exchanging Programme Pos
Manually Tuning the TV
Fine-Tuning Channels
Using Optional Equipment
Troubleshooting
Specifications
2. DISASSEMBLY
2-1. Rear CoverRemoval ———haasecssecsessersene 12
2-2. Chassis Assy Removal aaeeeeeeeeseseeeees 12
2-3. Service Position
2-4. H1 Board Removal
2-5. S1 Board Removal
2-6. Picture Tube Removal
2-7. Removal and Replacement of the
Main - Bracket bottom plates
3. SET-UP ADJUSTMENTS
3-1. Beam Landing
3-2. Convergence
3-3, Screen [G2] White Balance
3-4, Focus
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE
ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE
CARBON PAINTED ON THE CRT, AFTER REMOVAL OF THE
ANODE CAP
WARNING !!
AN ISOLATING TRANSFORMER SHOULD BE USED DURING ANY
SERVICE WORK TO AVOID POSSIBLE SHOCK HAZARD DUE TO
LIVE
CHASSIS.
THE
CHASSIS
OF
THIS
RECEIVER
IS
DIRECTLY
CONNECTED TO THE POWER LINE.
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY SHADING AND MARKED A ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
5-1. Block Diagram
5-2. Circuit Board Location
5-3. | Schematic Diagrams and
Printed Wiring Boards
* $1 Board
A Board
VM Board (KV-29C5 only)
C Board
H1 Board
5-4. | Semiconductors
5-5. IC Blocks
* * € *
6. EXPLODED VIEWS
6-1. Chassis £2 2 2 nniteecusenseeee 56
6-2. PictureTube eee eetestavsne 57
7. ELECTRICAL PARTS LIST — ue 58
ATTENTION
APRES AVOIR DECONNECTE LE CAP DE’LANODE,
COURT-CIRCUITER LANODE DU TUBE CATHODIQUE ET
CELUI DE L ANODE DU CAP AU CHASSIS METALLIQUE
DE L’-APPAREIL, OU AU COUCHE DE CARBONE PEINT E
SUR LE TUBE CATHODIQUE OU AU BLINDAGE DU TUBE
CATHODIQUE.
ATTENTION !!
AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION PROVENANT
D’UN CHASSIS SOUS TENTION, UN TRANSFORMATEU R
D’'ISOLEMENT DOIT ETRE UTILISE LORS DE TOUT DEFPANNAGE.
LE CHASSIS DE CE RECEPTEUR EST DIRECTMENT RACCORDE
A LALIMENTATION SECTEUR.
ATTENTION AUX COMPOSANTS RELATIFS 4 LA
SECURITE !!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR. UNE
MARQUE A SUR LES SCHEMAS DE PRINCIPE, LES VUES
EXPLOSEES ET LES LISTES DE PIECES SONT D’UNE IMP ORTANCE
CRITIQUE POUR LA SECURITE DU FONCTIONNEMENT, DNELES
REMPLACER QUE PAR DES COMPSANTS SONY DONT LE* NUMERO
DE PIECE EST INDIQUE DANS LE PRESENT MANUEL OLJ DANS
DES SUPPLEMENTS PUBLIES PAR SONY.
