Sony TRINITRON KV-29C5E - Service Position; H1 Board Removal; S1 Board Removal

KV-25C5/29C5

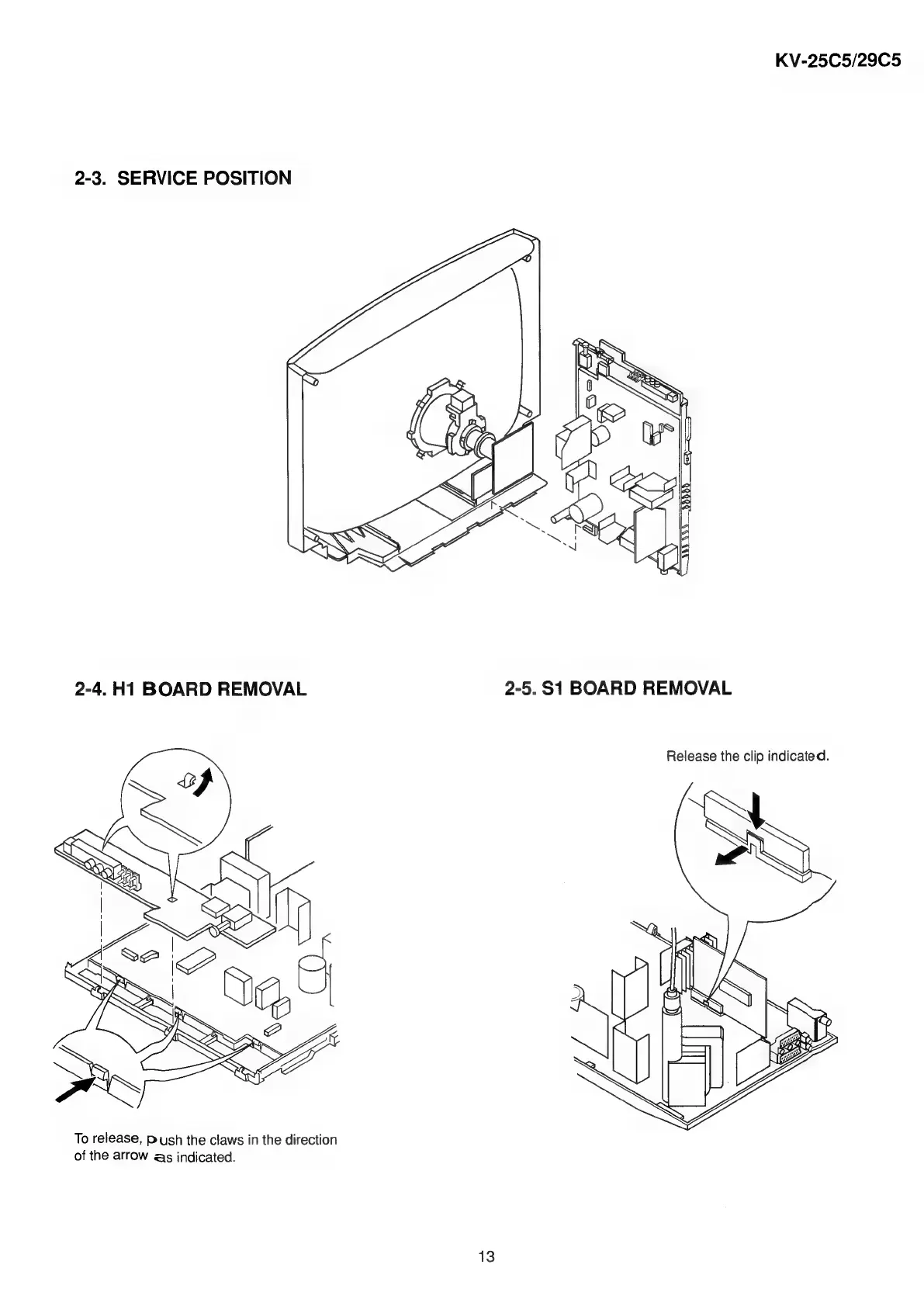

2-3. SERVICE POSITION
2-5. S1 BOARD REMOVAL
2-4. H1 BOARD REMOVAL
Release the clip indicated.
To release, push the claws in the direction
of the arrow as indicated.
13
