KV-27FV15/29FV10/29FV15/29FV15C/29FV15K

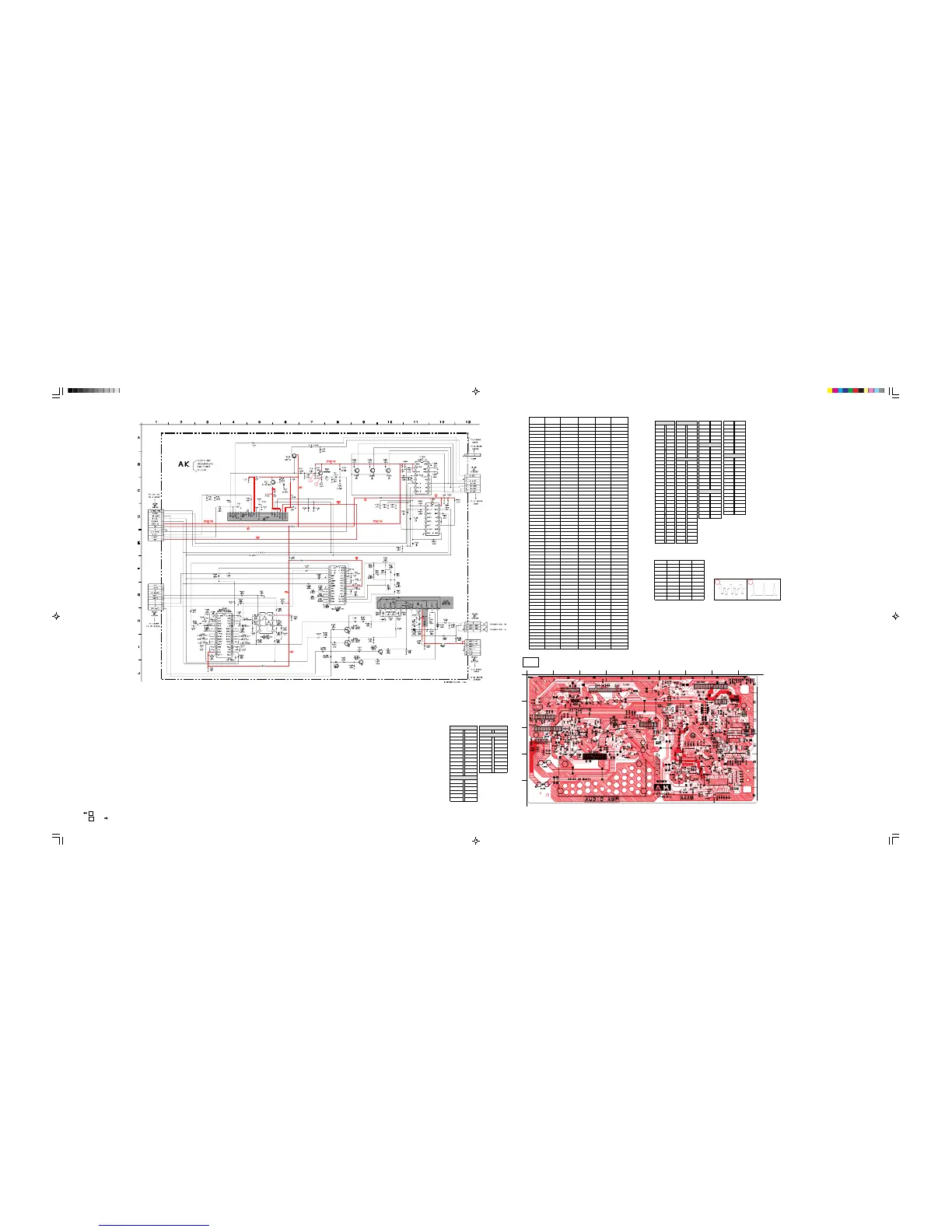

AK BOARD SCHEMATIC DIAGRAM
— 45 — — 46 — — 47 — — 48 —
AK BOARD TRANSISTOR
VOLTAGE LIST
BCE
Q101 5.7 9.4 5.1
Q105 5.0 0.8 5.0
Q106 4.8 9.4 4.2
Q1461 0 4.1 GND
Q1462 0 11.5 GND
Q1463 0 0 GND
Q1464 0 0 GND
Q1902 4.9 0 0
Q1903 4.9 0 0
Q1918 4.9 0 0
All voltages are in V
board
Schematic diagrams
board
A
AK
AK BOARD (*) MARK LIST
REF. NO. LOCATION KV-27FV15 KV-29FV15 KV-29FV10 KV-29FV15K
KV-29FV15C
C101 D-4 1 1 # 1
C102 C-3 0.0022 0.0022 # 0.0022
C104 D-5 10 10 # 10
C106 C-6 47 47 # 47
C108 D-6 1000 1000 # 1000
C109 B-7 220p 220p # 220p
C110 B-7 0.047 0.047 # 0.047
C111 C-7 1 1 # 1
C113 C-5 22 0 2 20 # 220
C115 A-5 1 1 # 1
C1904 C-12 0.01 0.01 # 0.01
C1905 C-12 10 10 # 10
C1906 B-11 0.01 0.01 # 0.01
C1907 B-10 1 0 10 # 1 0
C1908 B-12 0.001 0.001 # 0.001
C1909 B-12 0.001 0.001 # 0.001
C1910 D-10 0.001 0.001 # 0.001
C1911 D-10 0.001 0.001 # 0.001
C1912 D-10 0.001 0.001 # 0.001
CN1467 C-13 7P 7P # 7P
CN1468 B-13 T AB TAB # TA B
D101 C-6 RD5.6ESB2 RD5.6ESB2 # RD5.6ESB2
D103 C-8 1SS133T-77 1SS133T-77 # 1SS133T-77
D104 B-8 1SS133T-77 1SS133T-77 # 1SS133T-77
D105 E-11 1SS133T-77 1SS133T-77 # 1SS133T-77
D106 D-11 1SS133T-77 1SS133T-77 # 1SS133T-77
D107 D-11 1SS133T-77 1SS133T-77 # 1SS133T-77
D108 D-7 RD10ESB2 RD10ESB2 # RD10ESB2
D109 D-7 RD10ESB2 RD10ESB2 # RD10ESB2
IC1901 D-12 CXA1315M CXA1315M # CXA1315M
IC1902 B-11 NJM2145M NJM2145M # NJM2145M
L102 C-5 10UH 10UH # 10UH
L105 C-6 100UH 100UH # 100UH
Q101 C-6 2SC2785 2SC2785 # 2SC2785
Q105 B-7 2SA1162 2SA1162 # 2SA1162
Q106 B-6 2SD601A 2SD601A # 2SD601A
Q1902 B-9 2SA1162 2SA1162 # 2SA1162
Q1903 B-9 2SA1162 2SA1162 # 2SA1162
Q1918 B-10 2SA1162 2SA1162 # 2SA1162
R101 D-4 4.7K 4.7K # 4.7K
R102 C-3 27K 2 7K # 27K
R103 C-5 39K 3 9K # 39K
R104 C-6 1 K 1K # 1K
R112 B-7 2.2K 2.2K # 2.2K
R113 B-7 100K 100K # 100K
R114 B-7 1 M 1M # 1M
R115 C-7 10K 1 0K # 10K
R116 C-8 10K 1 0K # 10K
R117 C-8 4.7K 4.7K # 4.7K
R118 A-7 470 470 # 47 0
R119 A-7 560 560 # 56 0
R1486 H-10 220 220 # 220
R1487 H-10 220 220 # 220
R1902 B-10 10K 10K # 10K
R1904 B-9 10 K 10K # 10K
R1906 B-9 10 K 10K # 10K
R1907 B-11 220 22 0 # 220
R2904 D-12 220 220 # 220
R2905 D-12 220 220 # 220
R2909 C-11 10 K 1 0K # 1 0K
R2910 C-11 10 K 1 0K # 1 0K
R2912 C-12 4.7K 4.7K # 4.7K
R2913 C-11 10 K 1 0K # 1 0K
R2914 D-11 10 K 1 0K # 1 0K
R2915 E-12 10K 10K # 10K
R2916 E-10 10K 10K # 10K
TU101 D-5 8-589-430-00 8-589-430-00 # 8-589-430-00
AK BOARD WAVEFORMS
1 2
1.5 Vp-p (H) 4.8 Vp-p (H)
AK BOARD IC
VOLTAGE LIST
IC1401 IC1402 2 3 4.6 8
GND
pin volt pin volt 2 4 4.6 9
0
1 GND 1 4.5 25 4.6 10
NC
2 0 2 4.6 26 4.6 11
9.4
3 0 3 4.6 27 4.6 12
GND
4 4.6 4 GND 28 3.9 13
GND
5 4 .6 5 4 .6 IC1461 1 4
4.5
6 4.6 6 4.6 1 1.5 15
4.5
7 4.6 7 4.6 2 0 16
9.4
8 4 .6 8 9 .2 3 0 IC1902
9 4 .6 IC1403 4 0 1 5.0
10 4.6 pin volt 5 1.5 2 4. 8
11 4.6 1 4.0 6 11.5 3 5.0
12 4.6 2 4.6 7 16.1 4 0.1
13 0.8 3 4.6 8 5.1 5 GND
14 2.0 4 GND 9 34.5 6 0
15 9.2 5 4.6 10 0 7 0
16 9.2 6 NC 11 4.1 8 0
17 4.6 7 4.6 12 15.4 9 0
18 4.6 8 GND IC1901 10 0
19 2.0 9 4.6 1 0 11 0
20 0.8 10 4.6 2 0 12 NC
21 4.6 11 4.6 3 NC 13 0
22 4.6 12 4.6 4 NC 14 0.2
23 4.6 13 4.6 5 NC 15 0.3
24 4.6 14 4.6 6 NC 16 GND
25 4.6 15 4.6 7 0.3
All voltages are in V
26 4.6 16 4.6
27 4.6 17 4.6
28 4.6 18 4.6
29 4.6 19 4.6
30 4.6 20 4.6
31 2.9 21 9.2
32 4.6 22 4.6
1
A
B
C
D
E
23456789
AK
[ AUDIO AMP, TRUSURROUND, 2ND TUNER, S-LINK ]
AK BOARD LOCATOR LIST
DIODE PHOTOSENSOR
D101 A-2 PS1461 B-4
D103 A-6
TRANSISTOR
D104 A-6 Q101 A-2
D105 B-8 Q105 A-6
D106 B-8 Q106 A-4
D107 C-8 Q1461 C-3
D108 A-1 Q1462 C-2
D109 B-1 Q1463 C-2
D1461 B-3 Q1464 C-2
D1463 B-2 Q1902 D-8
D1466 B-2 Q1903 D-9
D1467 C-4 Q1918 D-9
D1468 C-4
IC
IC1401 D-6
IC1402 B-6
IC1403 E-8
IC1461 D-3
IC1901 B-8
IC1902 C-8
FOLDOUT 3-1b 45-48 4/15/99, 9:54 AM2
