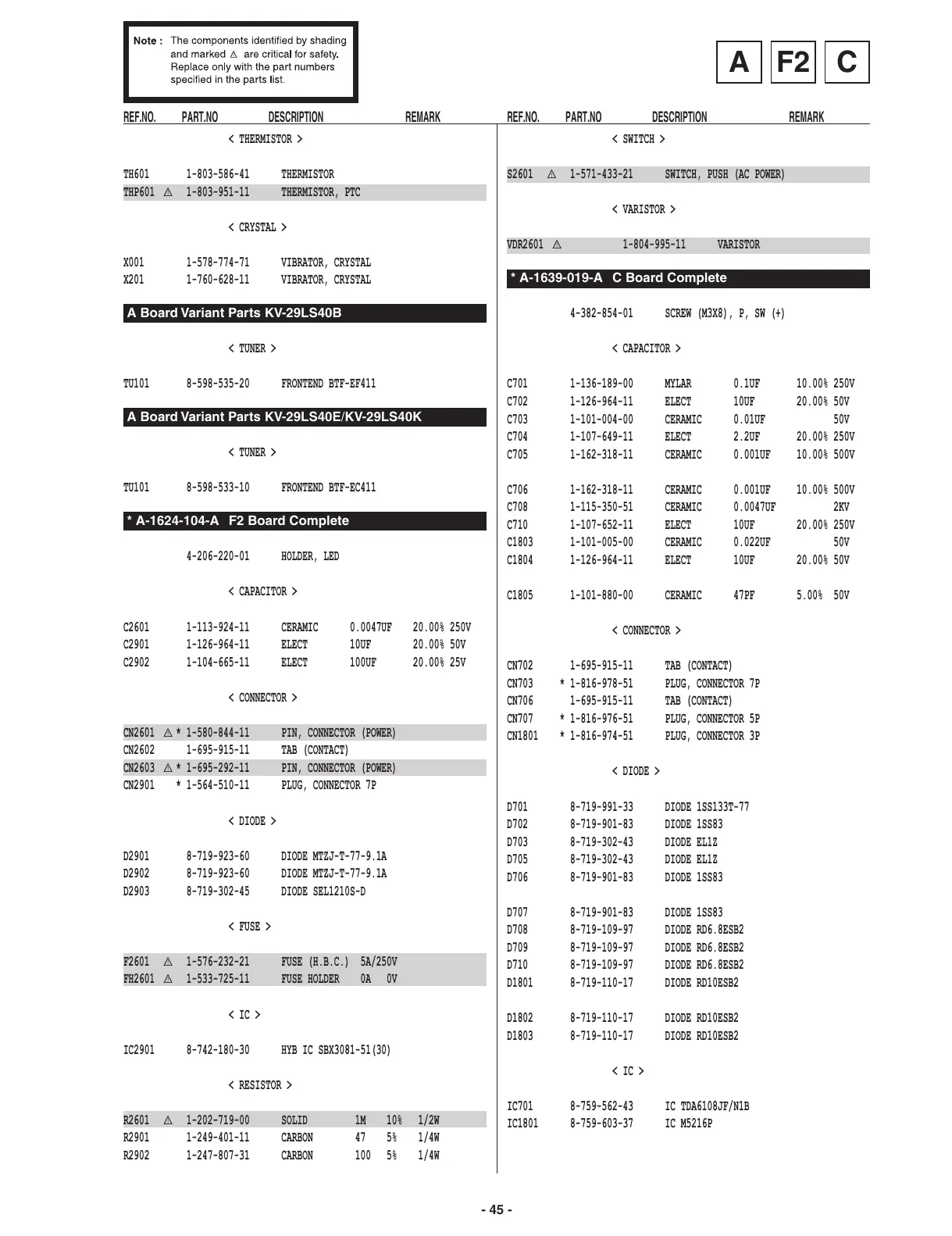

Sony TRINITRON KV-29LS40B - Page 45

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 45 -
< THERMISTOR >
TH601 1-803-586-41 THERMISTOR
THP601 £ 1-803-951-11 THERMISTOR, PTC
< CRYSTAL >
X001 1-578-774-71 VIBRATOR, CRYSTAL
X201 1-760-628-11 VIBRATOR, CRYSTAL
A Board Variant Parts KV-29LS40B
< TUNER >
TU101 8-598-535-20 FRONTEND BTF-EF411
A Board Variant Parts KV-29LS40E/KV-29LS40K
< TUNER >
TU101 8-598-533-10 FRONTEND BTF-EC411
* A-1624-104-A F2 Board Complete
4-206-220-01 HOLDER, LED
< CAPACITOR >
C2601 1-113-924-11 CERAMIC 0.0047UF 20.00% 250V
C2901 1-126-964-11 ELECT 10UF 20.00% 50V
C2902 1-104-665-11 ELECT 100UF 20.00% 25V
< CONNECTOR >
CN2601 £ * 1-580-844-11 PIN, CONNECTOR (POWER)
CN2602 1-695-915-11 TAB (CONTACT)
CN2603 £ * 1-695-292-11 PIN, CONNECTOR (POWER)
CN2901 * 1-564-510-11 PLUG, CONNECTOR 7P
< DIODE >
D2901 8-719-923-60 DIODE MTZJ-T-77-9.1A
D2902 8-719-923-60 DIODE MTZJ-T-77-9.1A
D2903 8-719-302-45 DIODE SEL1210S-D
< FUSE >
F2601 £ 1-576-232-21 FUSE (H.B.C.) 5A/250V
FH2601 £ 1-533-725-11 FUSE HOLDER 0A 0V
< IC >
IC2901 8-742-180-30 HYB IC SBX3081-51(30)
< RESISTOR >
R2601 £ 1-202-719-00 SOLID 1M 10% 1/2W
R2901 1-249-401-11 CARBON 47 5% 1/4W
R2902 1-247-807-31 CARBON 100 5% 1/4W
< SWITCH >
S2601 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
< VARISTOR >
VDR2601 £ 1-804-995-11 VARISTOR
* A-1639-019-A C Board Complete
4-382-854-01 SCREW (M3X8), P, SW (+)
< CAPACITOR >
C701 1-136-189-00 MYLAR 0.1UF 10.00% 250V
C702 1-126-964-11 ELECT 10UF 20.00% 50V
C703 1-101-004-00 CERAMIC 0.01UF 50V
C704 1-107-649-11 ELECT 2.2UF 20.00% 250V
C705 1-162-318-11 CERAMIC 0.001UF 10.00% 500V
C706 1-162-318-11 CERAMIC 0.001UF 10.00% 500V
C708 1-115-350-51 CERAMIC 0.0047UF 2KV
C710 1-107-652-11 ELECT 10UF 20.00% 250V
C1803 1-101-005-00 CERAMIC 0.022UF 50V
C1804 1-126-964-11 ELECT 10UF 20.00% 50V
C1805 1-101-880-00 CERAMIC 47PF 5.00% 50V
< CONNECTOR >
CN702 1-695-915-11 TAB (CONTACT)
CN703 * 1-816-978-51 PLUG, CONNECTOR 7P
CN706 1-695-915-11 TAB (CONTACT)
CN707 * 1-816-976-51 PLUG, CONNECTOR 5P
CN1801 * 1-816-974-51 PLUG, CONNECTOR 3P
< DIODE >
D701 8-719-991-33 DIODE 1SS133T-77
D702 8-719-901-83 DIODE 1SS83
D703 8-719-302-43 DIODE EL1Z
D705 8-719-302-43 DIODE EL1Z
D706 8-719-901-83 DIODE 1SS83
D707 8-719-901-83 DIODE 1SS83
D708 8-719-109-97 DIODE RD6.8ESB2
D709 8-719-109-97 DIODE RD6.8ESB2
D710 8-719-109-97 DIODE RD6.8ESB2
D1801 8-719-110-17 DIODE RD10ESB2
D1802 8-719-110-17 DIODE RD10ESB2
D1803 8-719-110-17 DIODE RD10ESB2
< IC >
IC701 8-759-562-43 IC TDA6108JF/N1B
IC1801 8-759-603-37 IC M5216P
