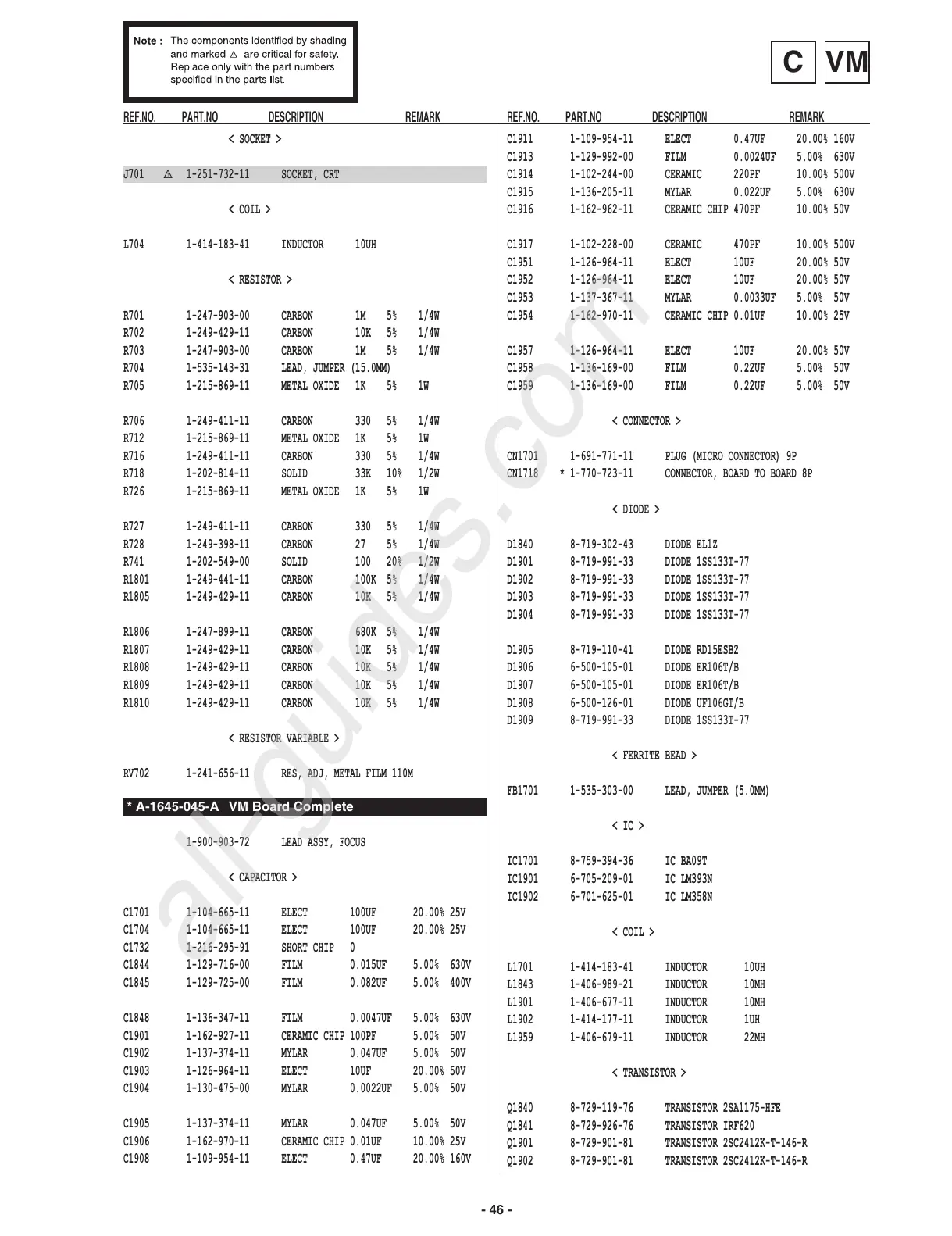

Sony TRINITRON KV-29LS40B - Page 46

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 46 -
VM
< SOCKET >
J701 £ 1-251-732-11 SOCKET, CRT
< COIL >
L704 1-414-183-41 INDUCTOR 10UH
< RESISTOR >
R701 1-247-903-00 CARBON 1M 5% 1/4W
R702 1-249-429-11 CARBON 10K 5% 1/4W
R703 1-247-903-00 CARBON 1M 5% 1/4W
R704 1-535-143-31 LEAD, JUMPER (15.0MM)
R705 1-215-869-11 METAL OXIDE 1K 5% 1W
R706 1-249-411-11 CARBON 330 5% 1/4W
R712 1-215-869-11 METAL OXIDE 1K 5% 1W
R716 1-249-411-11 CARBON 330 5% 1/4W
R718 1-202-814-11 SOLID 33K 10% 1/2W
R726 1-215-869-11 METAL OXIDE 1K 5% 1W
R727 1-249-411-11 CARBON 330 5% 1/4W
R728 1-249-398-11 CARBON 27 5% 1/4W
R741 1-202-549-00 SOLID 100 20% 1/2W
R1801 1-249-441-11 CARBON 100K 5% 1/4W
R1805 1-249-429-11 CARBON 10K 5% 1/4W
R1806 1-247-899-11 CARBON 680K 5% 1/4W
R1807 1-249-429-11 CARBON 10K 5% 1/4W
R1808 1-249-429-11 CARBON 10K 5% 1/4W
R1809 1-249-429-11 CARBON 10K 5% 1/4W
R1810 1-249-429-11 CARBON 10K 5% 1/4W
< RESISTOR VARIABLE >
RV702 1-241-656-11 RES, ADJ, METAL FILM 110M
* A-1645-045-A VM Board Complete
1-900-903-72 LEAD ASSY, FOCUS
< CAPACITOR >
C1701 1-104-665-11 ELECT 100UF 20.00% 25V
C1704 1-104-665-11 ELECT 100UF 20.00% 25V
C1732 1-216-295-91 SHORT CHIP 0
C1844 1-129-716-00 FILM 0.015UF 5.00% 630V
C1845 1-129-725-00 FILM 0.082UF 5.00% 400V
C1848 1-136-347-11 FILM 0.0047UF 5.00% 630V
C1901 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C1902 1-137-374-11 MYLAR 0.047UF 5.00% 50V
C1903 1-126-964-11 ELECT 10UF 20.00% 50V
C1904 1-130-475-00 MYLAR 0.0022UF 5.00% 50V
C1905 1-137-374-11 MYLAR 0.047UF 5.00% 50V
C1906 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C1908 1-109-954-11 ELECT 0.47UF 20.00% 160V
C1911 1-109-954-11 ELECT 0.47UF 20.00% 160V
C1913 1-129-992-00 FILM 0.0024UF 5.00% 630V
C1914 1-102-244-00 CERAMIC 220PF 10.00% 500V
C1915 1-136-205-11 MYLAR 0.022UF 5.00% 630V
C1916 1-162-962-11 CERAMIC CHIP 470PF 10.00% 50V
C1917 1-102-228-00 CERAMIC 470PF 10.00% 500V
C1951 1-126-964-11 ELECT 10UF 20.00% 50V
C1952 1-126-964-11 ELECT 10UF 20.00% 50V
C1953 1-137-367-11 MYLAR 0.0033UF 5.00% 50V
C1954 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C1957 1-126-964-11 ELECT 10UF 20.00% 50V
C1958 1-136-169-00 FILM 0.22UF 5.00% 50V
C1959 1-136-169-00 FILM 0.22UF 5.00% 50V
< CONNECTOR >
CN1701 1-691-771-11 PLUG (MICRO CONNECTOR) 9P
CN1718 * 1-770-723-11 CONNECTOR, BOARD TO BOARD 8P
< DIODE >
D1840 8-719-302-43 DIODE EL1Z
D1901 8-719-991-33 DIODE 1SS133T-77
D1902 8-719-991-33 DIODE 1SS133T-77
D1903 8-719-991-33 DIODE 1SS133T-77
D1904 8-719-991-33 DIODE 1SS133T-77
D1905 8-719-110-41 DIODE RD15ESB2
D1906 6-500-105-01 DIODE ER106T/B
D1907 6-500-105-01 DIODE ER106T/B
D1908 6-500-126-01 DIODE UF106GT/B
D1909 8-719-991-33 DIODE 1SS133T-77
< FERRITE BEAD >
FB1701 1-535-303-00 LEAD, JUMPER (5.0MM)
< IC >
IC1701 8-759-394-36 IC BA09T
IC1901 6-705-209-01 IC LM393N
IC1902 6-701-625-01 IC LM358N
< COIL >
L1701 1-414-183-41 INDUCTOR 10UH
L1843 1-406-989-21 INDUCTOR 10MH
L1901 1-406-677-11 INDUCTOR 10MH
L1902 1-414-177-11 INDUCTOR 1UH
L1959 1-406-679-11 INDUCTOR 22MH
< TRANSISTOR >
Q1840 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q1841 8-729-926-76 TRANSISTOR IRF620
Q1901 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R
Q1902 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R
C
