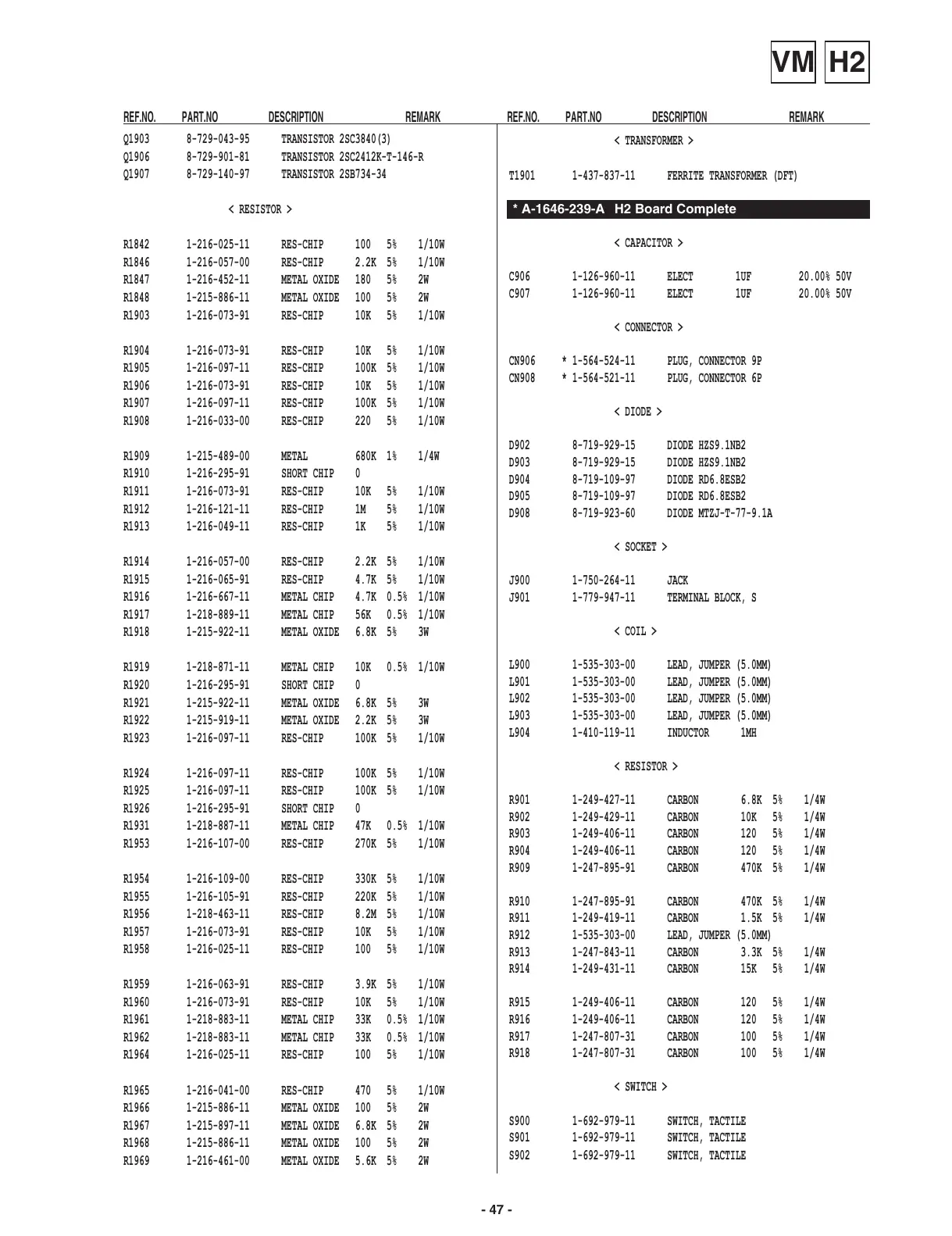

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 47 -
VM
< TRANSFORMER >
T1901 1-437-837-11 FERRITE TRANSFORMER (DFT)
* A-1646-239-A H2 Board Complete
< CAPACITOR >
C906 1-126-960-11 ELECT 1UF 20.00% 50V
C907 1-126-960-11 ELECT 1UF 20.00% 50V
< CONNECTOR >
CN906 * 1-564-524-11 PLUG, CONNECTOR 9P
CN908 * 1-564-521-11 PLUG, CONNECTOR 6P
< DIODE >
D902 8-719-929-15 DIODE HZS9.1NB2
D903 8-719-929-15 DIODE HZS9.1NB2
D904 8-719-109-97 DIODE RD6.8ESB2
D905 8-719-109-97 DIODE RD6.8ESB2
D908 8-719-923-60 DIODE MTZJ-T-77-9.1A
< SOCKET >
J900 1-750-264-11 JACK
J901 1-779-947-11 TERMINAL BLOCK, S
< COIL >
L900 1-535-303-00 LEAD, JUMPER (5.0MM)
L901 1-535-303-00 LEAD, JUMPER (5.0MM)
L902 1-535-303-00 LEAD, JUMPER (5.0MM)
L903 1-535-303-00 LEAD, JUMPER (5.0MM)
L904 1-410-119-11 INDUCTOR 1MH
< RESISTOR >
R901 1-249-427-11 CARBON 6.8K 5% 1/4W
R902 1-249-429-11 CARBON 10K 5% 1/4W
R903 1-249-406-11 CARBON 120 5% 1/4W
R904 1-249-406-11 CARBON 120 5% 1/4W
R909 1-247-895-91 CARBON 470K 5% 1/4W
R910 1-247-895-91 CARBON 470K 5% 1/4W
R911 1-249-419-11 CARBON 1.5K 5% 1/4W
R912 1-535-303-00 LEAD, JUMPER (5.0MM)
R913 1-247-843-11 CARBON 3.3K 5% 1/4W
R914 1-249-431-11 CARBON 15K 5% 1/4W
R915 1-249-406-11 CARBON 120 5% 1/4W
R916 1-249-406-11 CARBON 120 5% 1/4W
R917 1-247-807-31 CARBON 100 5% 1/4W
R918 1-247-807-31 CARBON 100 5% 1/4W
< SWITCH >
S900 1-692-979-11 SWITCH, TACTILE
S901 1-692-979-11 SWITCH, TACTILE
S902 1-692-979-11 SWITCH, TACTILE
Q1903 8-729-043-95 TRANSISTOR 2SC3840(3)
Q1906 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R
Q1907 8-729-140-97 TRANSISTOR 2SB734-34
< RESISTOR >
R1842 1-216-025-11 RES-CHIP 100 5% 1/10W
R1846 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1847 1-216-452-11 METAL OXIDE 180 5% 2W
R1848 1-215-886-11 METAL OXIDE 100 5% 2W
R1903 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1904 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1905 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1906 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1907 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1908 1-216-033-00 RES-CHIP 220 5% 1/10W
R1909 1-215-489-00 METAL 680K 1% 1/4W
R1910 1-216-295-91 SHORT CHIP 0
R1911 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1912 1-216-121-11 RES-CHIP 1M 5% 1/10W
R1913 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1914 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1915 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1916 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W
R1917 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
R1918 1-215-922-11 METAL OXIDE 6.8K 5% 3W
R1919 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1920 1-216-295-91 SHORT CHIP 0
R1921 1-215-922-11 METAL OXIDE 6.8K 5% 3W
R1922 1-215-919-11 METAL OXIDE 2.2K 5% 3W
R1923 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1924 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1925 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1926 1-216-295-91 SHORT CHIP 0
R1931 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
R1953 1-216-107-00 RES-CHIP 270K 5% 1/10W
R1954 1-216-109-00 RES-CHIP 330K 5% 1/10W
R1955 1-216-105-91 RES-CHIP 220K 5% 1/10W
R1956 1-218-463-11 RES-CHIP 8.2M 5% 1/10W
R1957 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1958 1-216-025-11 RES-CHIP 100 5% 1/10W
R1959 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R1960 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1961 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R1962 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R1964 1-216-025-11 RES-CHIP 100 5% 1/10W
R1965 1-216-041-00 RES-CHIP 470 5% 1/10W
R1966 1-215-886-11 METAL OXIDE 100 5% 2W
R1967 1-215-897-11 METAL OXIDE 6.8K 5% 2W
R1968 1-215-886-11 METAL OXIDE 100 5% 2W
R1969 1-216-461-00 METAL OXIDE 5.6K 5% 2W
H2VM
