Additional information
WR ae kk, REPS SE BRET CCR RES

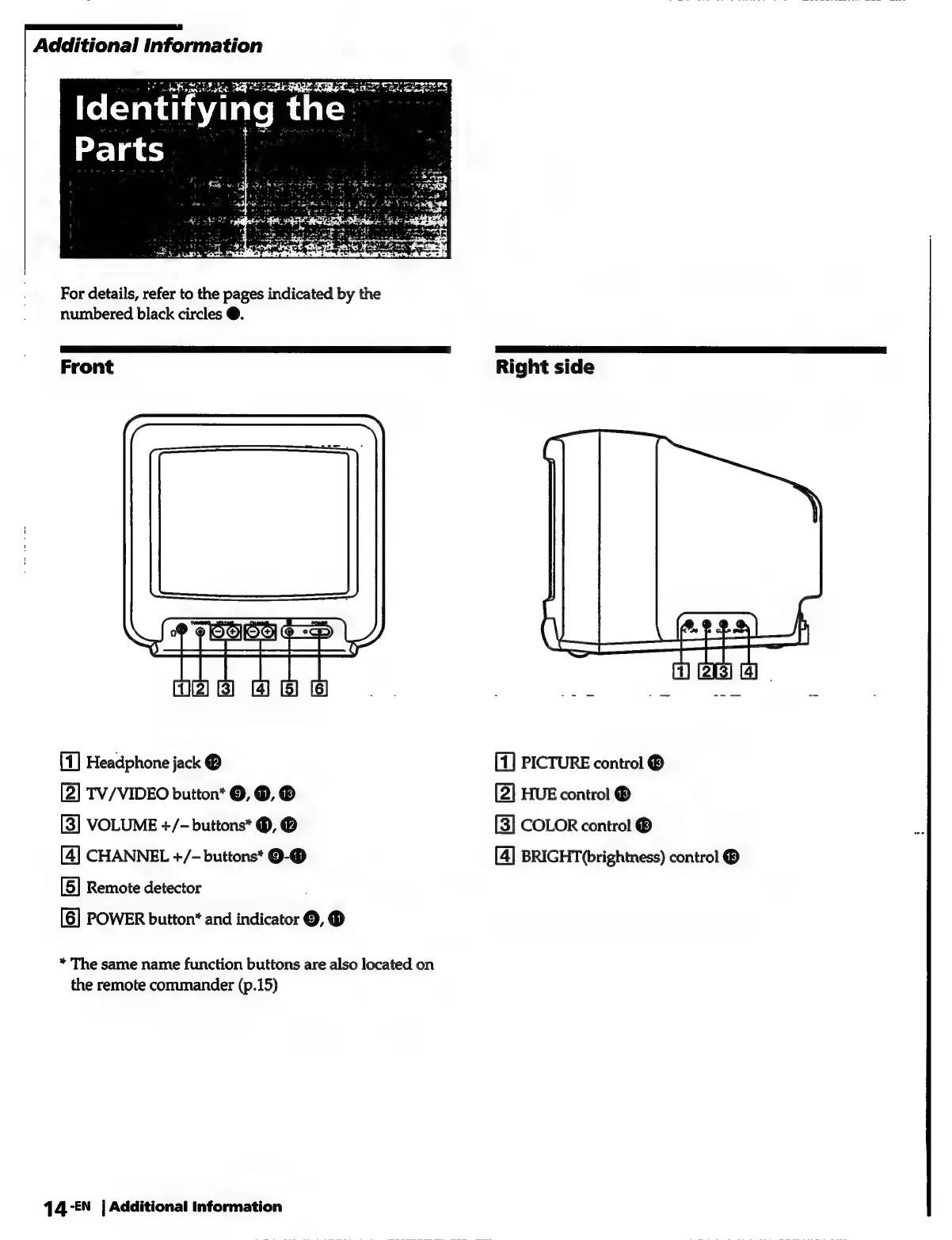

Identifying the
Parts
For details, refer to the pages indicated by the
numbered black circles @.
SSS a a a aE a IO nT es
Front Right side
[1] Headphone jack ® [1] PICTURE control ®
[2] TV/VIDEO button* ©, ®, ® [2] HUE control ®
[3] VOLUME +/-buttons* ®, ® [3] COLOR control ®
[4] CHANNEL +/- buttons* @-@ [4] BRIGHT(brightness) control ®
[5] Remote detector
[6] POWER button’ and indicator }, ®
* The same name function buttons are also located on
the remote commander (p.15)
14-EN | Additional Information
