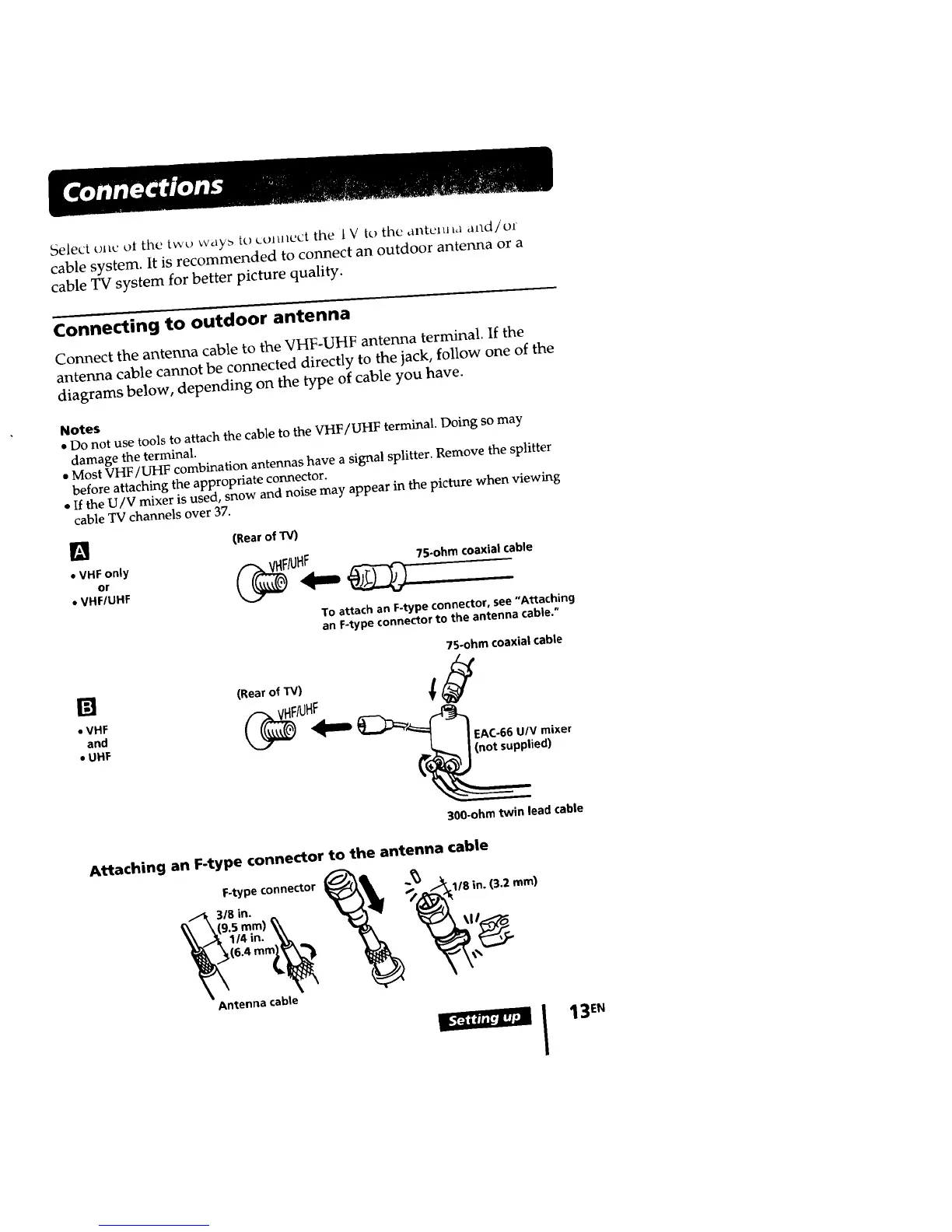

Sony Trinitron KV-9PT60 - Connections; Connecting to Outdoor Antenna

Select ¢_tLcot the twu wny_ to __oJutect the 1V to the antcnJLa and/or
cable system. It is recommended to connect an outdoor antenna or a
cable TV system for better picture quality.
Connecting to outdoor antenna
Connect the antenna cable to the VHF-UHF antenna terminal. If the
antenna cable cannot be connected directly to the jack, follow one of the
diagrams below, depending on the type of cable you have.
Notes
• Do not use tools to attach the cable to the VHF/UHF terminal. Doing so may
damage the terminal.
• Most VHF/UHF combination antennas have a signal splitter. Remove the splitter
before attaching the appropriate connector.
+ If the U/V mixer is used, snow and noise may appear in the picture when viewing
cable TV channels over 37.
M (Rear of TV)
* VHF only
or
. VHF/UHF
JH_lmlD 75-ohmcoaxialcable
To attach an F-type connector, see "Attaching
an F-type connector to the antenna cable,"
[]
.VHF
and
, UHF
75-ohm coaxial cable
mea,o<W)
_J_<_a _ EAC-66 U/V mixer
(notsupplied)
300-ohm twin lead cable
Attaching an F-type connector to the antenna cable
F-type connector
Antenna cable
m
>; in. m)
I 13EN
